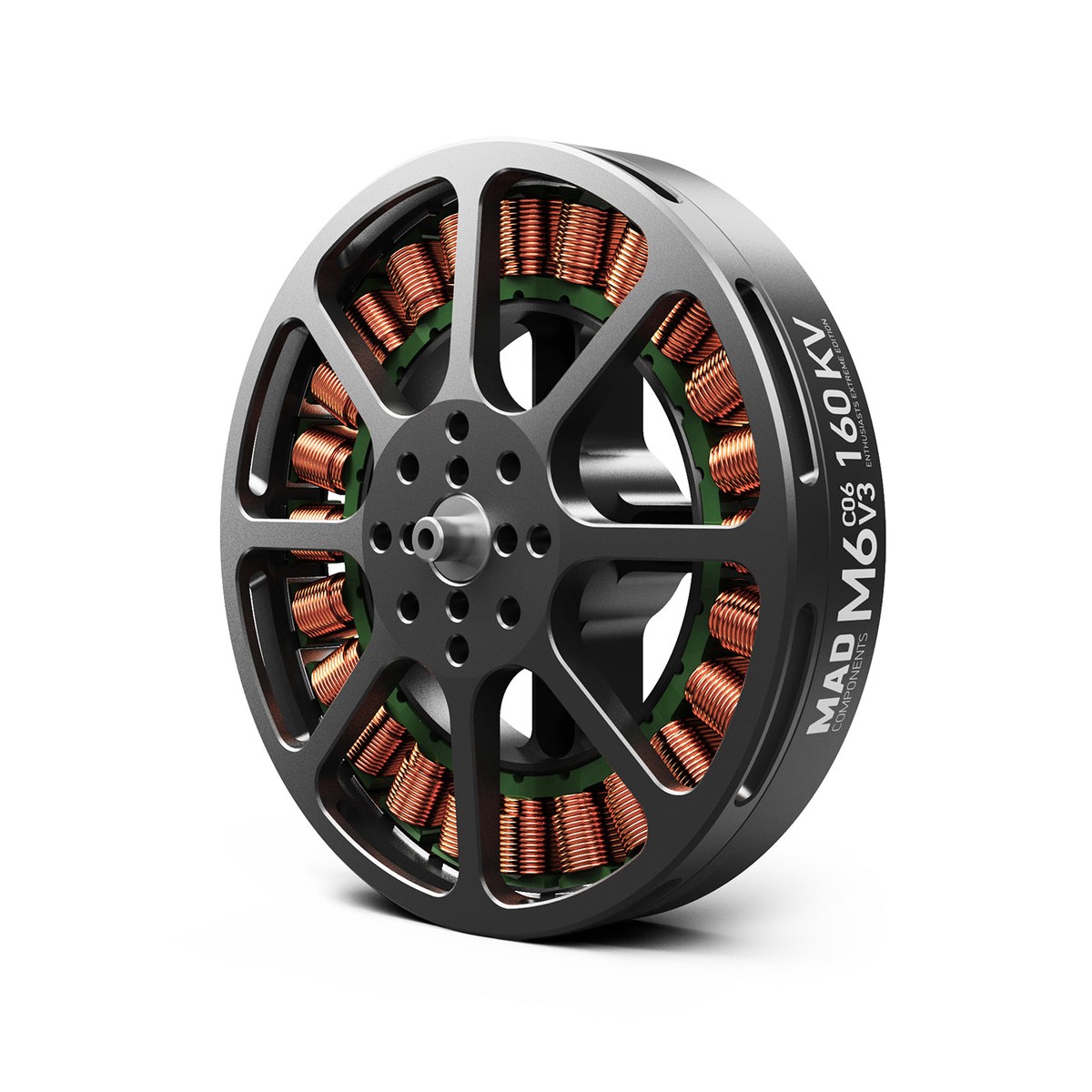

Name: MAD Antimatter M6C06 V3 EEE Brushless Drone Motor 160KV 12S / 320KV 6S for 2122in Props
SKU: ELAC22173209700
Availability: InStock

Description
Reviews (0)

Overview

MAD Antimatter M6C06 EEE V3 is a brushless drone motor designed for mid-sized multirotor platforms, with a recommended hover thrust of 2.03.0 kgf and support for 2122 inch propellers (e.g., FLUXER PRO 21×6.3 / 22×6.6 MATT).

Key Features

Two KV / voltage configurations: 160KV (12S) and 320KV (6S).
Independent centrifugal heat dissipation.
Rain protection design.
Balanced rotor and motor: Rotor Balance 5 mg; Motor Balance 10 mg.
Anticorrosive stator; varnished wire degree 180C; magnet degree 150C.
ESC compatibility stated: XROTOR Pro 60A, AMPX 60A, FOC 60A14S; tested setups shown with AMPX 40A (514S) / AMPX 60A (514S).

Specifications

General (M6C06 V3 EEE)

Motor Model	MAD M6C06 V3 EEE
Number of pole pairs	14
Stator	Anticorrosive
Varnished wire degree	180C
Magnet degree	150C
Degree of protection	Rain protection
Centrifugal heat dissipation	Independent
Rotor balance	5 mg
Motor balance	10 mg
Bearing	696ZZ*2
Disruptive test	500 V
Motor size	D:72.1 22.4 mm
Cable	60 mm, 16# AWG (Black) silicone
Shaft diameter	IN: 4 mm
Motor mounting holes	D:32 M44
Propeller mounting holes	D:12 M34, D:18 M34, D:20 M34

160KV Version (12S)

KV	160KV
Nominal voltage	12S lipo battery
Recommended hover thrust	2.03.0 kgf
Maximum thrust	6.1 kgf
Optimized weight / motor weight	157 g
Efficiency	>83%
No load current	0.5A / 30V
Internal resistance	163 m
Maximum current	22.43 A
Maximum power	1075 W
Maximum torque	1.48 Nm
Recommended ESC	MAD AMPX 40A (514S)
Recommended propellers	21×6.3, 22×6.6
Single rotor take-off weight	2 kg3 kg
UAV take-off weight	12S-22″/9kg-Quadcopter; 13.5kg-Hexacopter; 18.5kg-Octocopter
Product boxed weight	287 g (110 110 55 mm)
Tested setup shown	FLUXER PRO 22×6.6 MATT; AMPX 40A (514S); MAX 84C

320KV Version (6S)

KV	320KV
Nominal voltage	6S lipo battery
Recommended hover thrust	2.03.0 kgf
Maximum thrust	5.8 kgf
Optimized weight / motor weight	160 g
Efficiency	>82%
No load current	1.0A / 20V
Internal resistance	40 m
Maximum current	43.15 A
Maximum power	1014 W
Maximum torque	1.41 Nm
Recommended ESC	MAD AMPX 40A (514S); AMPX 60A (514S)
Recommended propellers	21×6.3, 22×6.6
Single rotor take-off weight	2 kg3 kg
UAV take-off weight	6S-22″/9kg-Quadcopter; 13kg-Hexacopter; 17.5kg-Octocopter
Product boxed weight	290 g (110 110 55 mm)
Tested setup shown	FLUXER PRO 22×6.6 MATT; AMPX 60A (514S); MAX 88C

Drawing and Mounting Dimensions

Outer diameter	72.1
Body thickness	22.4
Dimension shown	3.9
Dimension shown	45
Prop hole patterns (shown)	12-M34; 18-M34; 20-M3*4
Motor mount pattern (shown)	32-M4*4
Cable length (shown)	60 mm
Additional dimensions shown	10.5; 7; 1.4; 5.8; 12-3.2X2; 2.9

Performance Data (Throttle Tables)

160KV (12S) FLUXER PRO 21×6.3 MATT AMPX 40A (514S) MAX 79C

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
40	48.53	2.20	106.8	89.2	0.309	2757	1231	83.60	11.5
42	48.53	2.40	116.6	97.9	0.324	2886	1329	84.00	11.4
44	48.51	2.73	132.2	111.3	0.353	3010	1498	84.20	11.3
46	48.49	3.05	148.0	125.8	0.383	3137	1624	85.00	11.0
48	48.48	3.36	162.8	141.4	0.414	3262	1741	86.90	10.7
50	48.47	3.75	181.6	158.8	0.448	3386	1897	87.50	10.4
52	48.45	4.20	203.5	174.7	0.476	3505	2053	85.90	10.1
54	48.44	4.64	224.8	193.0	0.508	3629	2166	85.90	9.6
56	48.39	5.10	246.8	212.0	0.541	3742	2310	85.90	9.4
58	48.44	5.64	273.2	233.8	0.580	3850	2514	85.60	9.2
60	48.37	6.17	298.2	254.9	0.615	3957	2688	85.50	9.0
62	48.35	6.67	322.5	276.7	0.650	4065	2826	85.80	8.8
64	48.31	7.15	345.3	296.1	0.677	4177	2943	85.80	8.5
66	48.29	7.55	364.3	317.0	0.709	4270	3015	87.00	8.3
68	48.28	8.21	396.5	341.4	0.745	4376	3154	86.10	8.0
70	48.25	8.92	430.2	368.4	0.787	4470	3343	85.60	7.8
80	48.16	12.11	583.0	498.4	0.963	4942	4123	85.50	7.1
90	48.07	15.98	767.9	647.5	1.152	5368	4963	84.30	6.5
100	47.96	19.65	942.4	776.0	1.298	5709	5612	82.40	6.0

160KV (12S) FLUXER PRO 22×6.6 MATT AMPX 40A (514S) MAX 84C

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
40	48.49	2.51	121.7	103.5	0.368	2685	1508	85.05	12.4
42	48.48	2.88	139.8	117.5	0.400	2806	1647	84.09	11.8
44	48.47	3.32	161.0	132.8	0.433	2928	1793	82.48	11.1
46	48.46	3.66	177.3	149.7	0.469	3049	1948	84.47	11.0
48	48.43	4.01	194.3	167.1	0.503	3173	2086	86.02	10.7
50	48.43	4.48	217.2	186.9	0.544	3280	2276	86.06	10.5
52	48.43	5.02	242.6	207.3	0.583	3395	2428	85.43	10.0
54	48.39	5.47	264.7	227.7	0.620	3507	2576	86.01	9.7
56	48.37	6.13	296.3	250.6	0.662	3615	2739	84.59	9.2
58	48.34	6.65	321.6	273.2	0.701	3721	2886	84.95	9.0
60	48.33	7.15	345.7	296.0	0.740	3820	3056	85.62	8.8
62	48.35	7.84	378.7	321.0	0.782	3920	3243	84.78	8.6
64	48.31	8.35	403.1	343.4	0.814	4028	3378	85.18	8.4
66	48.27	8.98	433.3	368.8	0.855	4119	3592	85.11	8.3
68	48.26	9.69	467.8	392.5	0.888	4221	3717	83.91	7.9
70	48.24	10.33	498.3	417.8	0.926	4308	3877	83.83	7.8
80	48.13	13.96	671.8	558.8	1.121	4761	4646	83.18	6.9
90	48.04	18.28	878.3	716.8	1.332	5139	5533	81.62	6.3
100	47.92	22.43	1075.0	845.3	1.483	5443	6137	78.63	5.7

320KV (6S) FLUXER PRO 21×6.3 MATT AMPX 40A (514S) MAX 82C

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
40	24.49	4.53	110.8	88.9	0.305	2785	1280	80.30	11.5
42	24.46	5.08	124.3	103.5	0.340	2907	1421	83.30	11.4
44	24.45	5.84	142.7	116.5	0.367	3030	1545	81.60	10.8
46	24.41	6.48	158.1	131.8	0.399	3154	1687	83.50	10.7
48	24.37	7.05	171.9	142.1	0.415	3271	1782	82.70	10.4
50	24.36	7.90	192.4	158.1	0.445	3392	1915	82.10	10.0
52	24.33	8.66	210.7	173.4	0.472	3509	2056	82.30	9.8
54	24.30	9.62	233.6	190.9	0.505	3610	2188	81.70	9.4
56	24.27	10.37	251.6	206.6	0.530	3722	2286	82.10	9.1
58	24.25	11.38	275.9	225.9	0.564	3825	2463	81.90	8.9
60	24.21	12.21	295.7	248.2	0.604	3924	2591	83.90	8.8
62	24.18	13.28	321.3	268.9	0.638	4024	2728	83.70	8.5
64	24.17	14.28	345.1	289.4	0.671	4119	2857	83.90	8.3
66	24.14	15.34	370.4	309.8	0.703	4209	2994	83.70	8.1
68	24.11	16.30	393.1	328.6	0.729	4304	3101	83.60	7.9
70	24.08	17.47	420.5	352.7	0.766	4397	3280	83.90	7.8
80	23.92	23.63	565.3	467.8	0.926	4824	3947	82.80	7.0
90	23.74	30.81	731.3	595.8	1.092	5210	4659	81.50	6.4
100	23.57	37.41	881.7	705.8	1.218	5534	5172	80.10	5.9

320KV (6S) FLUXER PRO 22×6.6 MATT AMPX 60A (514S) MAX 88C

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
40	24.46	5.27	129.0	110.7	0.392	2696	1512	85.80	11.7
42	24.44	6.14	150.0	124.8	0.423	2818	1632	83.20	10.9
44	24.41	6.64	162.1	139.9	0.455	2936	1755	86.30	10.8
46	24.37	7.59	185.0	157.6	0.494	3046	1930	85.20	10.4
48	24.33	8.38	204.0	173.4	0.524	3160	2058	85.00	10.1
50	24.33	9.20	226.3	192.5	0.563	3265	2239	85.10	9.9
52	24.31	10.29	250.1	211.1	0.598	3370	2378	84.40	9.5
54	24.29	11.12	270.0	228.1	0.625	3485	2490	84.50	9.2
56	24.25	12.11	293.6	248.7	0.662	3580	2641	84.70	9.0
58	24.23	13.07	316.6	267.7	0.693	3688	2773	84.50	8.8
60	24.20	14.39	348.1	290.9	0.737	3770	2979	83.60	8.6
62	24.16	15.46	373.6	312.5	0.772	3866	3128	83.70	8.4
64	24.13	16.84	406.4	336.8	0.814	3951	3305	82.90	8.1
66	24.11	18.02	434.4	359.6	0.850	4039	3457	82.80	8.0
68	24.08	19.10	459.8	380.5	0.878	4138	3554	82.70	7.7
70	24.04	20.53	493.4	405.9	0.921	4209	3760	82.30	7.6
80	23.89	27.52	657.5	527.7	1.092	4615	4476	80.30	6.8
90	23.70	35.31	836.8	658.5	1.267	4963	5243	78.70	6.3
100	23.52	43.15	1014.9	774.5	1.414	5230	5827	76.30	5.7

Performance Table Notes (as stated)

160KV tables: theoretical values when input voltage is 48V, for reference only. At 25C with no additional cooling device: current over 22A is non-working zone; 722A is short-term (about 1030s) working zone; below 7A is sustainable working zone.
320KV tables: theoretical values when input voltage is 24V, for reference only. At 25C with no additional cooling device: current over 43A is non-working zone; 1343A is short-term (about 1030s) working zone; below 13A is sustainable working zone.

Whats Included

Motor x1
Propeller Plate x1
Prop Adapter x1
3.5mm Bullet Connector x3
Heat Shrinkable Tube x3
M4*10 Motor Screws x4
M3*6 Prop Adapter Screws x4
M3*12 Propeller Screws x4
Sticker x2

Applications

Multirotor platforms with medium payload requirements.
Aerial photography drones requiring stable lift.
Builds targeting a balance of thrust, efficiency, and motor weight.

For ESC matching, wiring, or configuration support, contact support@ or visit https:///.

Details

The motor uses M3 and M4 mounting hole patterns and a compact 32mm body to help plan fitment and screw spacing in your build.

The MAD Antimatter M6C06 V3 brushless motor includes a prop adapter, multiple screw sets, 3.5mm bullet connectors, heat-shrink tubing, and stickers for installation.

The MAD Antimatter M6C06 V3 160KV motor is rated for 2030S setups and is listed at 157 g with performance curves for easier power matching.

The M6C06 V3 320KV brushless motor includes test data for thrust, current draw, and efficiency across different throttle settings to help with setup and tuning.
