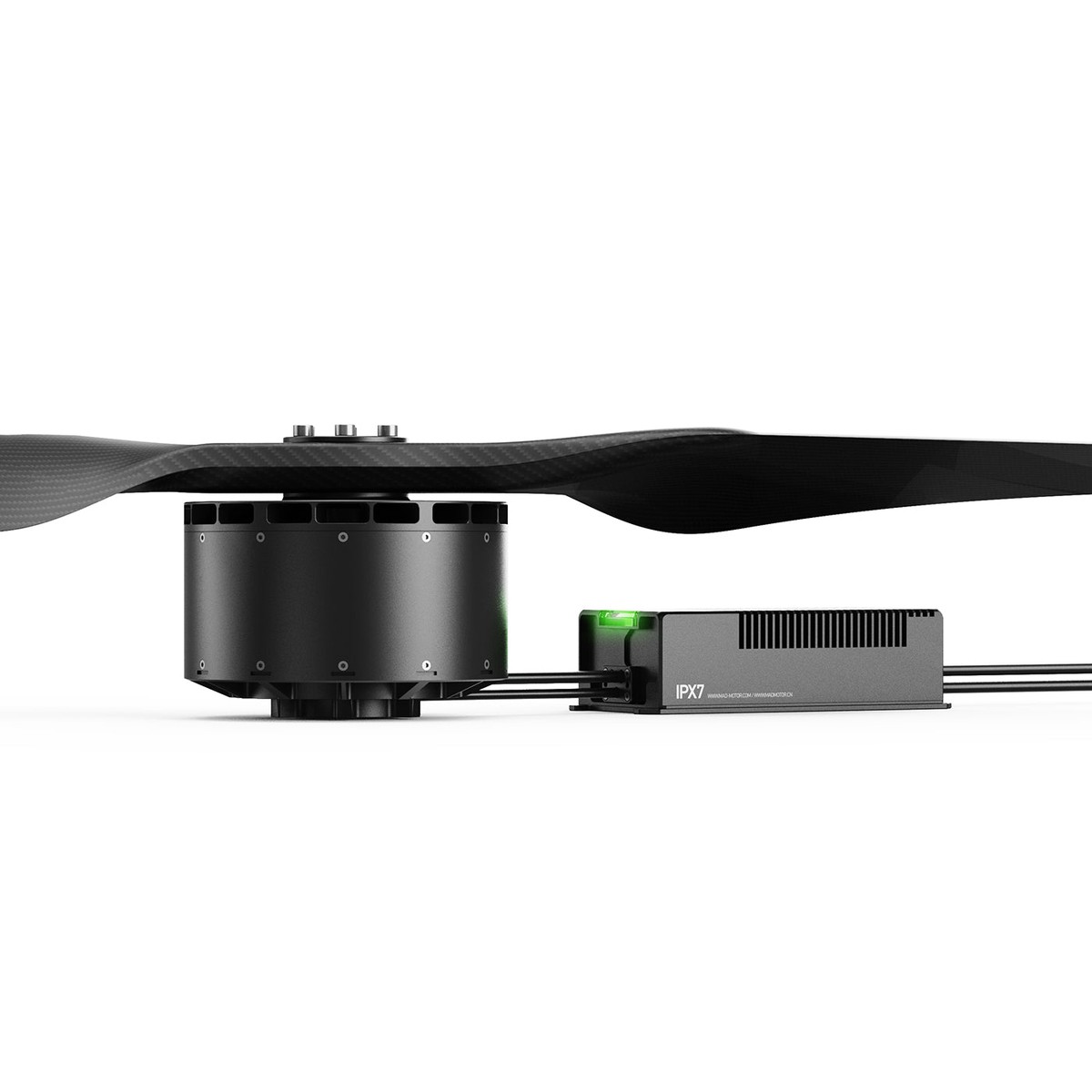

MAD AM60 7.5KV Power System Kit | AM60 Motor + SineSic 80A Pro ESC (200V-435V) + 73×29 Prop

Overview

MAD AM60 7.5KV Power System Kit product_type integrates an AM60 motor, SineSic 80A Pro ESC, and FLUXER PRO 73×29 propeller for heavy-lift multirotor powertrains. Two kit options are available: Kit A (standard ESC firmware, without propeller lock) and Kit B (motor magnetic encoder propeller lock support; requires compatible ESC firmware).

Key Features

• Kit options:
  Kit A: without lock propeller function; includes 1 x ESC (standard firmware) and 1 x CW or CCW propeller.
  Kit B: motor features a magnetic encoder to detect and lock the propeller at a specified stop position (requires compatible ESC firmware); includes 1 x ESC (with required firmware) and 1 x CW or CCW propeller.
• Rated/peak thrust figures: 60 kg rated thrust; 126.9 kg peak thrust.
• Smart ESC system: DSP chip (automotive-grade), FOC adaptive algorithm, 0.28 s dynamic response, dual CAN/PWM throttle support, OTA updates.
• Propeller and system data provided: curve chart and test data tables at 355 V and 400 V.

Specifications

Test Data

• Curve chart: AeroMax 60 7.5KV + FLUXER 73×29″ PROP + SineSic 80A Pro (200V~435V) Industrial Edition; input voltage 400 V; temperature 25C; sea level.
• Kit test data tables: provided for 355 V and 400 V (Throttle %, Voltage (V), Current (A), Input Power (W), Output Power (W), Torque (Nm), RPM, Thrust (kgf), Efficiency (%), Efficiency (gf/W)).

Wiring / Interfaces

• ESC line sequence labels: Output A / Output B / Output C; Red V+; Black V-.
• Signal pin labels shown: GND (Blue), CANH1 (Green), CANL1 (Yellow), GND (Black), CANL2 (Blue), CANH2 (Red), GND (Black), PWM input (White).
• Blade positioning / temperature monitoring connector shown.

Dimensions

• Motor (key dimensions shown): 120.3; 167; 75-M6*6; 50-M6*6; 25; 6.2*6; 9.8; 5; 3.5; 65.
• ESC (key dimensions shown): 198.5; 189.5; 180.5; 175.5; 88; 67; 47; 54; 3; 4.3; M3*14.
• Propeller: length 1854.2; angle 6-60; 25; 50; 6-6.2; thickness 35.40.02.

Whats Included

• Kit A: 1 x ESC (standard firmware) + 1 x CW or CCW propeller
• Kit B: 1 x ESC (with required firmware) + 1 x CW or CCW propeller

For compatibility checks (Kit A vs Kit B firmware requirements) and ordering support, contact https://rcdrone.top/ or [email protected].

Details

The AeroMax 60 kit combines a large propeller with a matching motor and electronics for a complete power system setup.

The MAD AM60 motor is presented with rated thrust of 60 kg, peak thrust of 126.9 kg, and an ultra-light 5.8 kg weight design, plus features like vacuum-sealed coils and real-time temperature monitoring.

The AeroMax 60 kit lists a 400V motor performance curve and key combo parameters for the AM60 7.5KV power system.

The AeroMax AM60 7.5KV kit test data lists throttle-based readings for voltage, current, input/output power, RPM, thrust, and efficiency.

MAD AM60 motor and ESC dimensions help confirm fitment, mounting points, and wire clearance before installation.

ESC wiring labels and propeller dimension measurements help you match the motor leads and choose compatible props for your build.

The smart ESC system supports easy tuning with OTA updates and offers dual CAN/PWM throttle compatibility for flexible setups.

High-performance carbon fiber propellers with a 3D twist design aim to balance strength, air-fuel performance, and reduced noise.

Details

The AeroMax 60 power system kit pairs a large propeller with a matching motor for heavy-lift multirotor builds.

MAD AM60 motor highlights include 60 kg rated thrust, 126.9 kg peak thrust, vacuum-sealed coils, and real-time temperature monitoring.

AeroMax 60 kit documentation includes a motor operation curve chart and a combo specification table for the motor, ESC, and prop setup.

Test data lists voltage, current, input/output power, RPM, thrust, and efficiency for the AeroMax AM60 7.5KV kit at 355V and 400V.

The kit includes detailed motor and ESC dimensions to help you confirm fitment and plan mounting and wiring space.

Clear ESC wire labeling and propeller dimension references help streamline motor wiring and prop selection during installation.

The MAD smart ESC system supports easy tuning with OTA updates and offers dual CAN/PWM throttle input for flexible setups.

High-performance carbon fiber propellers are presented with claims of 40 strength of materials, 50 better anti-burn performance, and 30 dB noise reduction.

The MAD AM60 power system is presented with endurance, thermal cycling (-40C to 85C), salt spray, and IP45 waterproof test references.
