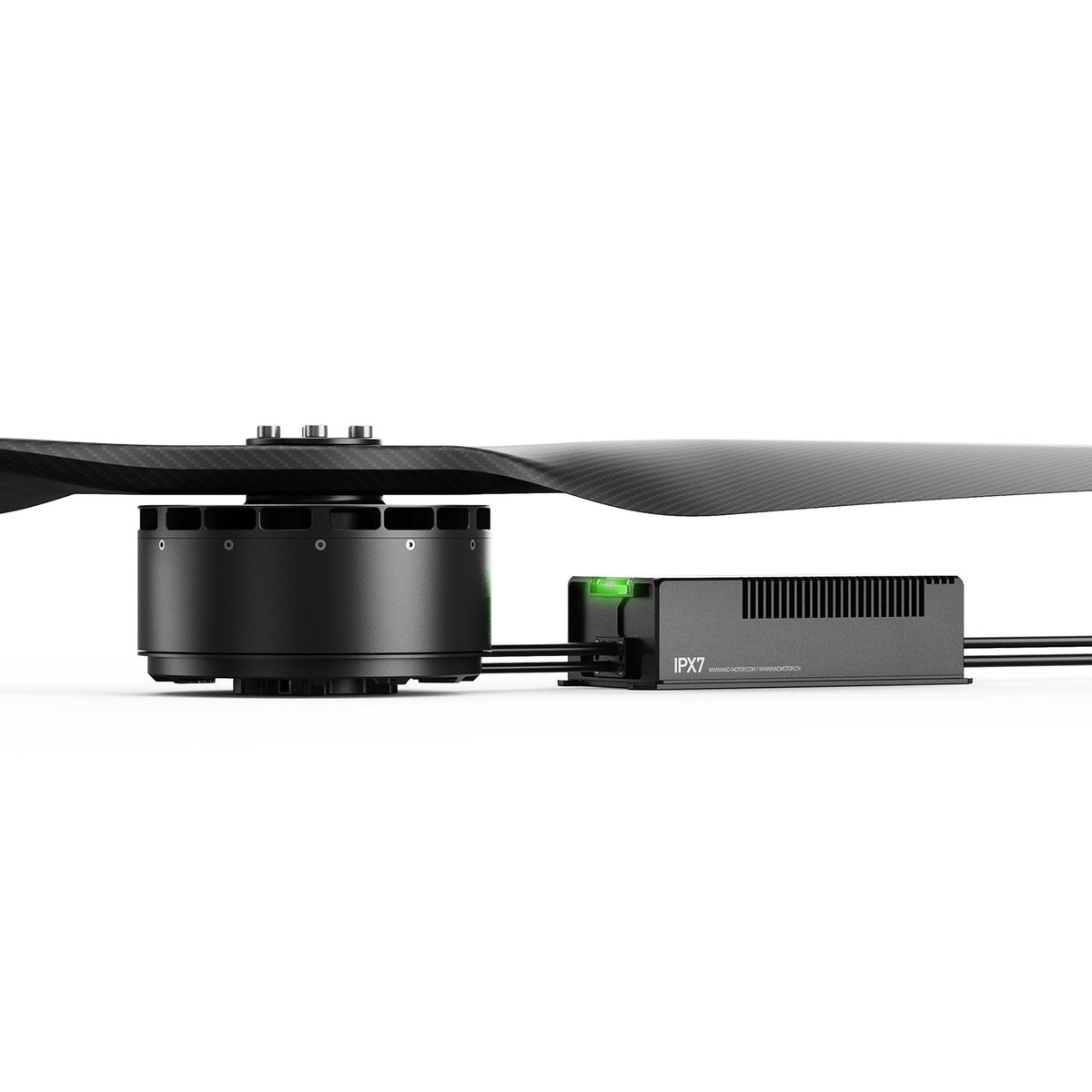

MAD AM50 9.5KV Power System Kit (Motor + ESC + Prop) Heavy-Lift Drone Power System Combo

Overview

The MAD AM50 9.5KV Power System Kit is a power system kit designed for heavy-lift multirotor platforms. The kit combines an AM50 9.5KV motor, a compatible ESC, and a carbon-fiber propeller option to support high-voltage operation and CAN/PWM throttle control.

Key Features

• Two kit options:
  • Kit A: Without lock-propeller function; includes 1 ESC (standard firmware) and 1 CW or CCW propeller.
  • Kit B: Motor with magnetic encoder to detect and lock the propeller at a specified stop position (requires compatible ESC firmware); includes 1 ESC (with required firmware) and 1 CW or CCW propeller.
• Dual CAN/PWM throttle support.
• ESC features include DSP chip, FOC adaptive algorithm, and 0.28 s dynamic response (as stated).
• 3rd-gen SiC MOSFETs (as stated).
• Real-time temperature monitoring (as stated).
• Vacuum-sealed coils (as stated).

Specifications

Test Data

Curve chart (measured conditions)

• Measured with an input voltage of 400 V, at 25C, sea level; rotational speed adjusted by throttle (as stated).
• Configuration label: AeroMax 50 9.5KV + FLUXER 65×18″ PROP + SiineSic 80A Pro (200V~435V) Industrial Edition.

Kit test data tables (Industrial Edition)

• FLUXER PRO 61×17″ prop: tables shown for 355V and 400V.
• FLUXER PRO 65×18 prop: tables shown for 355V and 400V.
• Columns shown: Throttle (%), Voltage (V), Current (A), Input Power (W), Output Power (W), Torque (Nm), RPM, Thrust (kgf), Efficiency (%), Efficiency (gf/W).

Dimensions

• Motor size: D: 167 94.3 mm.
• ESC size: 198.5*88*54 mm.
• Propeller drawings shown for FLUXER PRO 61X17 and 65X18.

Whats Included

• Kit A: 1 ESC (standard firmware), 1 CW or CCW propeller.
• Kit B: 1 ESC (with required firmware), 1 CW or CCW propeller.

For selection help (Kit A vs Kit B) and ESC firmware requirements, contact https:/// or support@.

Applications

• Heavy-lift multirotor propulsion and power system integration.

Details

The AeroMax 50 9.5KV power system kit pairs an RCDrone propeller with a matching motor and wiring lead for a complete setup.

The MAD AM50 9.5KV power system kit lists 50 kg rated thrust, 124.8 kg peak thrust, and features like vacuum-sealed coils and real-time temperature monitoring.

AeroMax 50 kit documentation lists the 9.5KV motor, ESC and prop details alongside a 400V motor operation curve.

The AM50 9.5KV power system kit includes performance test data across throttle settings at 355V and 400V with the FLUXER PRO 61×17 prop and SineSic 80A Pro ESC.

The AM50 9.5KV power system test data lists throttle, voltage, current, RPM, and efficiency readings at both 355V and 400V.

Motor and ESC dimensional drawings help you plan mounting clearance and cable routing before installation.

Clear ESC lead connections and propeller size references (Fluxer Pro 61×17 and 65×18) help with matching components during setup.

The next-gen smart ESC system supports easy tuning and OTA updates, with DSP and FOC control plus dual CAN/PWM throttle support.

High-performance carbon fiber propellers are presented as part of an integrated drone power ecosystem for tasks like delivery, firefighting, and rescue.

MAD AM50 power system components are shown undergoing endurance testing, thermal cycling (-40C to 85C), and salt spray corrosion resistance checks.
