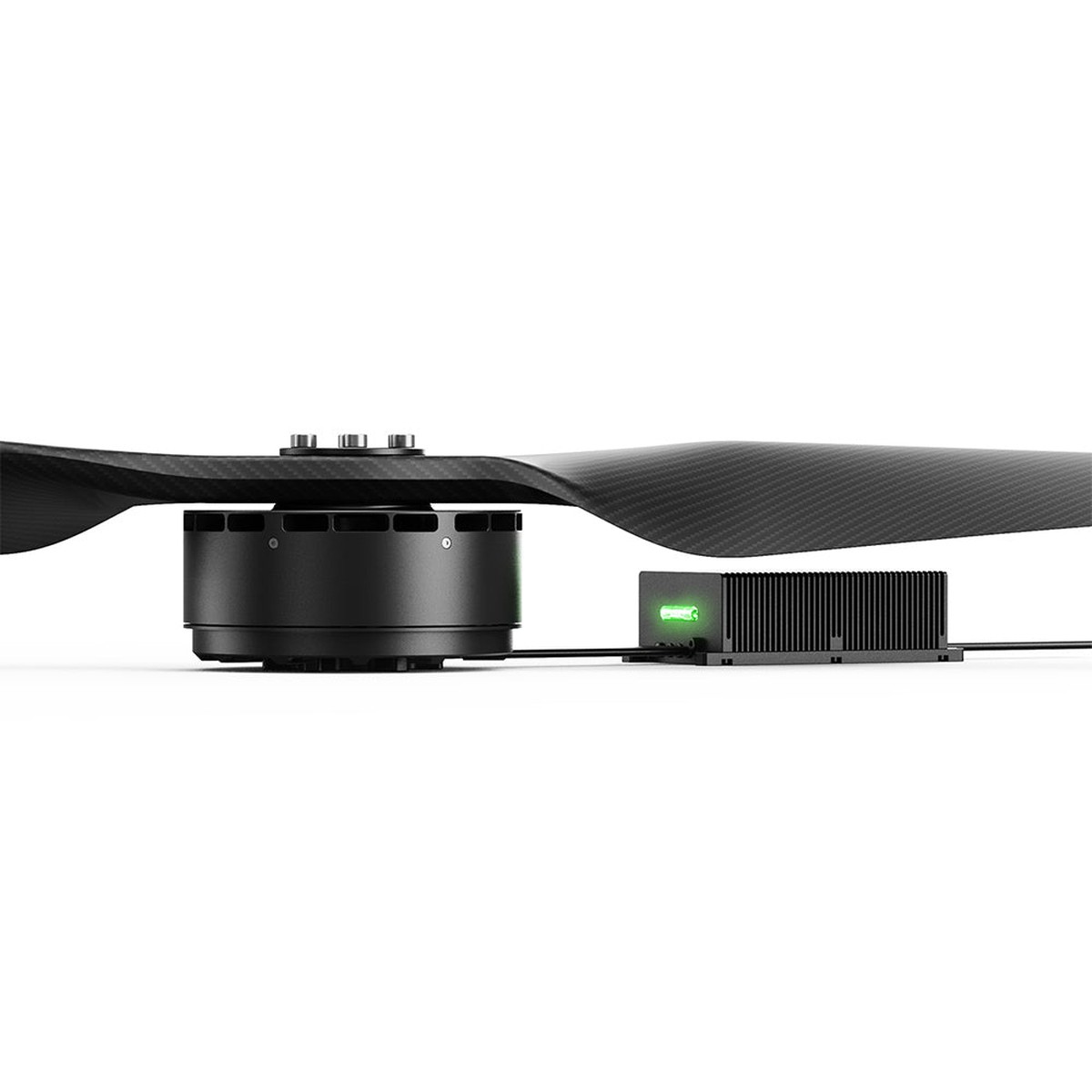

MAD AM30 10KV Power System Kit (Motor + ESC + Carbon Prop) for Heavy-Lift Drone Power System

Overview

The MAD AM30 10KV Power System Kit is a heavy-lift drone power system kit combining an AM30 motor, SineSic 50A Pro ESC (Industrial Edition), and FLUXER carbon-fiber propeller options. Two kit versions are available: Kit A (standard ESC firmware; no propeller lock function) and Kit B (motor with magnetic encoder for propeller stop-position lock; requires compatible ESC firmware).

Key Features

• Kit options: Kit A includes 1 ESC (standard firmware) + 1 CW or CCW propeller; Kit B includes 1 ESC (with required firmware) + 1 CW or CCW propeller and supports propeller lock via motor magnetic encoder (with compatible ESC firmware).
• Rated/peak thrust (combo): 30 kg rated thrust; 74.7 kg max thrust.
• Efficiency (combo): 7.2 gf/W.
• Environmental/ingress ratings (combo): Operating temperature -20~50C; IP45 (combo). ESC degree of protection: IPX7.
• Control interfaces (ESC): Dual CAN/PWM throttle support; communication interface CAN*2 (CAN2.0B, 1M bps).
• ESC signal/PWM: Signal wire 9pin / 1060 mm; PWM input pulse width 1100~1900us.
• Materials and monitoring (as labeled): 220C high-temp resistant copper windings; UH arc magnets; vacuum-sealed coils; real-time temperature monitoring.

For compatibility questions (firmware, CAN wiring, prop selection) or bulk ordering, contact support at https://rcdrone.top/ or [email protected].

Specifications

Motor (AM30)

ESC (SineSic 50A Pro Industrial Edition)

Propellers

Dimensions (Drawings)

• Motor dimension drawing: Key labeled dimensions include 77.4, 150, 3.9, 3, 4, 25, 50; outlet labels include encoder outlet, thermal outlet, and motor three-phase line outlet (with labeled line lengths: encoder and thermal output 450 mm10 mm; motor three-phase line output 150 mm).
• ESC dimension drawing: Key labeled dimensions include 143, 134, 124, 72, 63, 6; mounting note: 4×4.2 thru-hole. Wire notes include power cable (-) 14AWG black (58010 mm), power cable (+) 14AWG red (58010 mm), motor wire 3x14AWG black (17010 mm), temperature sensor wire 2-core shielded wire (20AWG) (17010 mm), signal wire 9-core shielded wire 3 pins (106010 mm).
• Propeller dimensions: FLUXER CB2 52×19 prop overall length 13205 mm, thickness 15.50.5, labelled hub features include 25 and 50 with 4-6 and 4-60 notes. FLUXER PRO 55×22 prop overall length 1397, thickness 21.30.2, labelled hub features include 25 and 50 with 6-6 and 6*60 notes.

Test Data (as provided)

• Curve chart: AeroMax 30 kit curve chart measured at input voltage 400 V, temperature 25C, sea level; setup notes: AeroMax 30 10KV + FLUXER PRO 55×22 PROP + SineSic 50A Pro (200V~435V) Industrial Edition.
• Kit test tables: Tables are provided for 355V and 400V with FLUXER CB2 52×19 prop and FLUXER PRO 55×22 prop, listing throttle (%), voltage (V), current (A), input power (W), output power (W), torque (Nxm), RPM, thrust (kgf), efficiency (%), and efficiency (gf/W).

Whats Included

• 1 ESC (firmware depends on kit option)
• 1 CW or CCW propeller (model depends on selected prop option)

Applications

• Heavy-lift multirotor UAV power systems
• Industrial lifting and payload platforms where a 96S (Lipo) power system is required

Details

The AeroMax 30 KIT 10KV power system kit pairs a large propeller with a brushless motor for heavy-lift drone builds.

The AeroMax 30 kit pairs a 10KV AM30 motor with a matching ESC and prop specs, along with a thrust curve chart for setup reference.

Kit test data provides voltage, current, RPM, thrust, power, and efficiency readings for the AeroMax 30 10KV power system at 355V.

The AM30 10KV setup with a 55×22 prop and 50A controller lists current draw, thrust, RPM, and efficiency across throttle at 355V and 400V.

Motor and ESC dimension details make it easier to plan mounting clearance, hole spacing, and cable routing during installation.

ESC wire sequence and propeller dimension diagrams help confirm correct connections and fitment for compatible setups.

The smart ESC supports easy tuning with OTA updates and offers DSP/FOC control plus dual CAN/PWM throttle input.

High-performance carbon fiber propellers use a 30 twist design and claim up to 30 dB noise reduction for heavy-lift drone setups.

The MAD AM30 10KV power system kit is backed by mission-critical validation including 1,000-hour endurance testing, -40C to 85C thermal cycling, 48-hour salt spray corrosion resistance, and IP45 waterproof testing.
