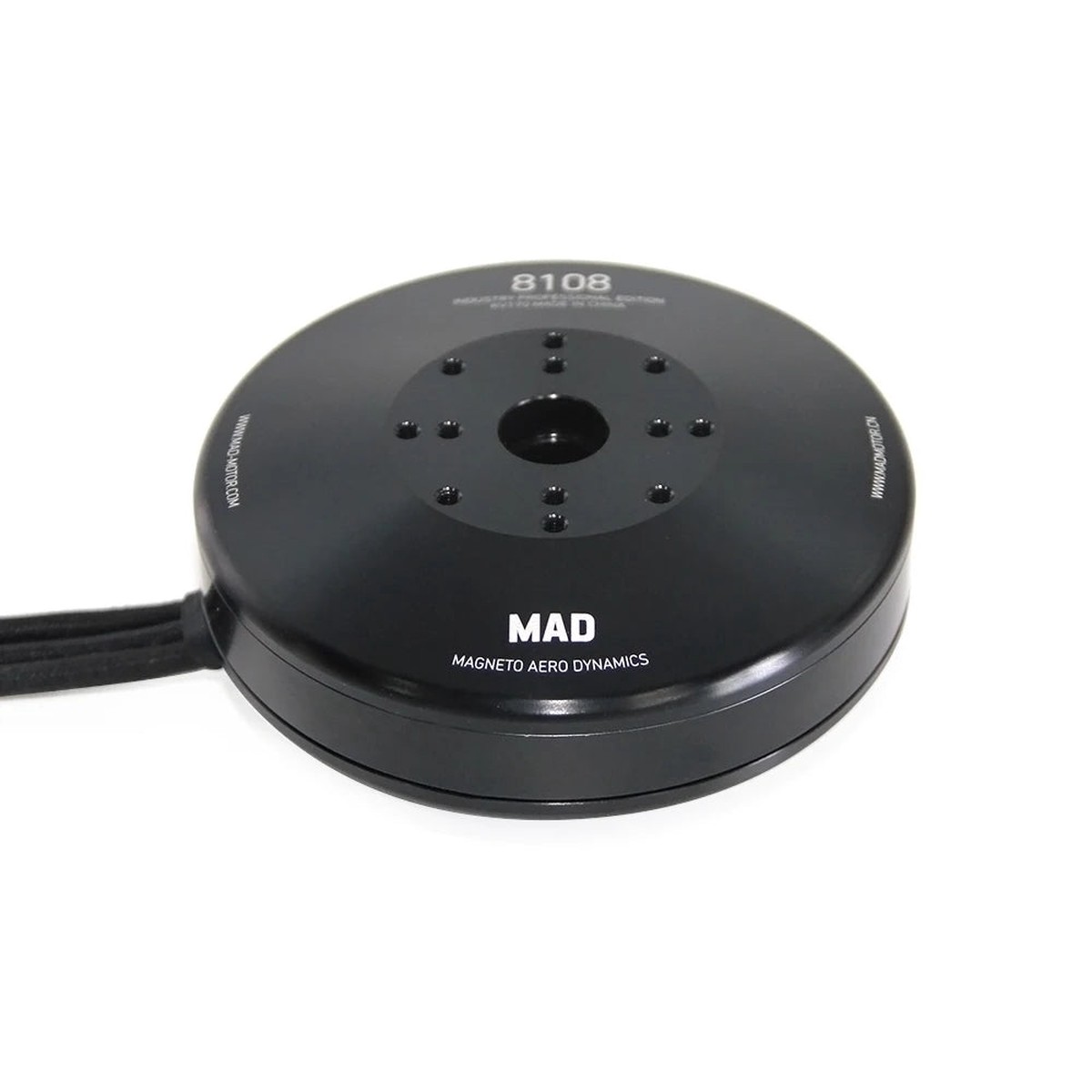

MAD 8108 IPE Drone Motor Summary

MAD 8108 IPE V1.0 Brushless Drone Motor is designed for high-performance UAVs. With a robust stator from Japan and excellent protection features, it supports heavy drones with a maximum thrust of 6839g and a maximum power output of 1055.3W. It operates efficiently with 12S lipo batteries and provides reliable performance with low internal resistance and effective heat dissipation. Ideal for various UAV configurations, it offers flexibility with multiple propeller mounting options and robust additional accessories.

MAD 8108SPECIFICATIONS

Brand Name: MAD COMPONENTS

Origin: Mainland China

Material: Metal

Recommend Age: 12+y

RC Parts & Accs: Motors

Size: 150*150*70mm

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Certification: CE

Certification: RoHS

Remote Control Peripherals/Devices: MOTOR

Tool Supplies: Cutting

Quantity: 1 pcs

Model Number: MAD8108IPE

Four-wheel Drive Attributes: Motors

Wheelbase: Screws

Configuration: 36N42P

Motor Dimensions: 86.8×27.5mm

Degree of Protection: IP35

KV: 100KV/170KV

Wire: 150mm

Wire Pressure Test: 500V

Motor Weight: 272g

Box Weight: 528g

Package: Color Box

Motor Data

Specifications

Products Description

8108 motor is the most classical product among UAV motors. MAD8108 EEE/IPE is the most efficient motor among them, and the most widely used motors for UAV of high-end aerial photography, exploration, Archaeology, Remote sensing surveying, Mapping etc. Endurance flight time varies from 30-120mins.

* Designed for rigorous conditions
* Over-sized durable bearings for increased life, durability
* Water and dust resistant. IP35 degree of protection
* Motor mounting holes standarization
