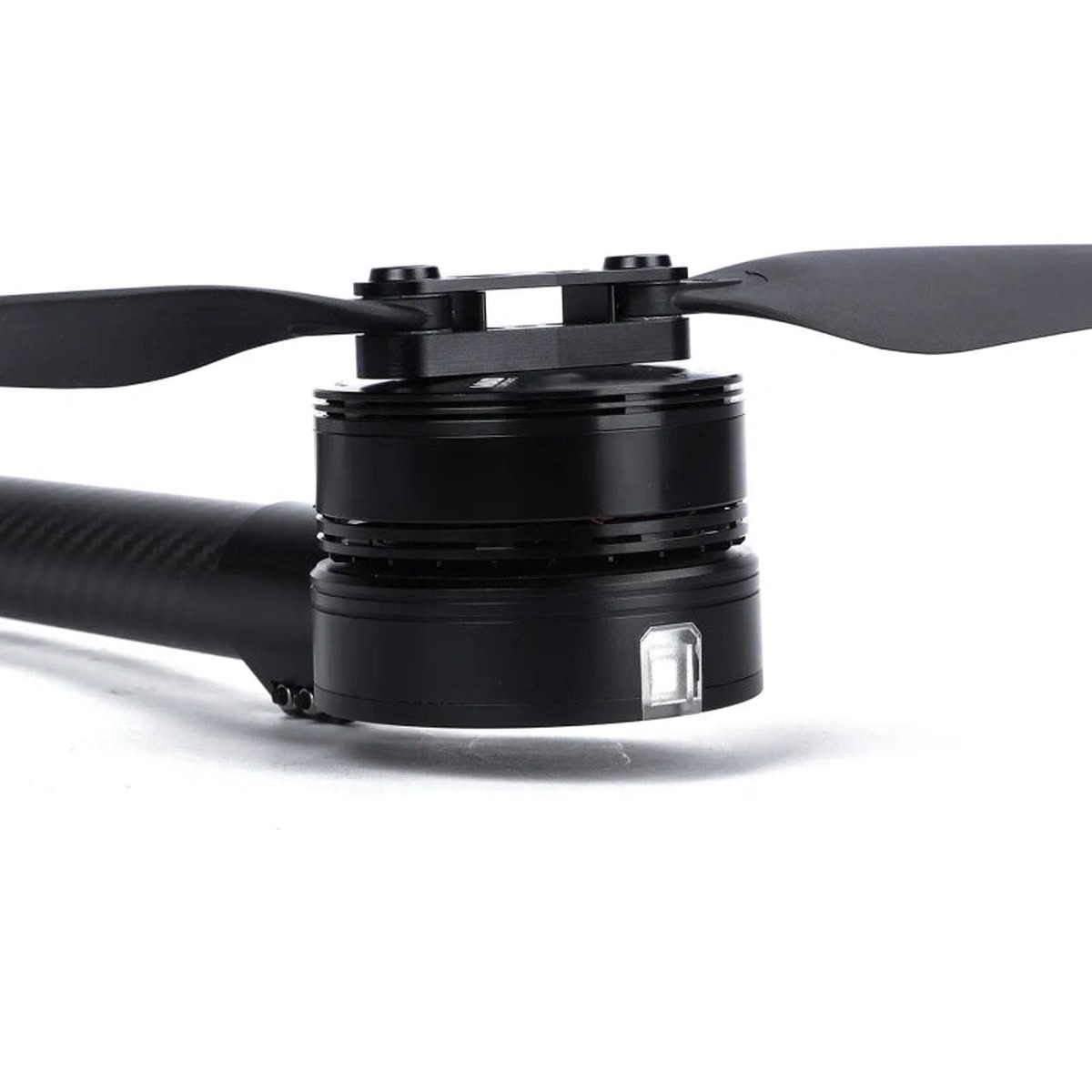

MAD 6X-10 M6C10 Drone Arm Set – 8-14S M6C10 Motor 60A FOC ESC 2270 Prop 150KV 7KG/Rotor Thrust for Industrial Multi-rotor Drone

Overview

The MAD 6X-10 M6C10 Drone Arm Set is a ready-to-use propulsion system designed for industrial multi-rotor applications, including inspection, mapping, and surveying. It delivers a payload capacity of1.9-2.8kg per rotor with a maximum thrust of 7kg per rotor. The total combo weight is only 515g, making it an excellent choice for efficiency-focused drone designs.

Technical Specifications:

Key Features:

• High-Efficiency Brushless Motor
  Equipped with a lightweight M6C10 150KV motor, featuring 24N28P arc magnets for superior electromagnetic performance, endurance, and reliability.

• Optimized Propeller Design
  Comes with HAVOC 2270 folding propellers made from carbon composite, providing lightweight and high strength. The upward wingtip design minimizes airflow interference, reducing noise and increasing efficiency.

• Intelligent and Reliable 60A FOC ESC
  Integrated 60A FOC ESC offers precise motor control, improved throttle response, and enhanced maneuverability.

  • Supports 8-14S LiPo batteries
  • Optimized for multi-rotor stability and efficiency
  • Automatically set parameters for easy setup
  • Reduced ESC operating temperatures for improved longevity

• Great Heat Dissipation
  Featuring a centrifugal cooling fan, hollowed-out motor bottom, and a 24-aluminum-sheet heat dissipation system, this propulsion arm effectively maintains optimal temperatures, extending operation time and improving safety.

• Plug & Play Installation
  Designed for 30mm, 28mm, and 25mm carbon tubes, the arm set includes an adapter ring for easy installation. Simply plug and screwno complicated wiring needed.

• Built-in LED Indicator

  • No extra LEDs required for installation
  • Displays motor rotation and ESC status
  • Available in red and green LED options

• Industrial-Grade Durability

  • IP45-rated water and dust resistance
  • Designed for harsh operating conditions

Details

MAD 6X-10 Motor offers tuned propulsion systems for drones. The 6X-08 set supports 1.7-2.5kg payload per rotor, max thrust 5.9kg, combo weight 481g. The 6X-10 set handles 1.9-2.8kg payload, max thrust 7kg, combo weight 515g. The 6X-12 set manages 3.3-4.7kg payload, max thrust 10kg, combo weight 547g. One plug installation is super convenient.

Great heat dissipation with a centrifugal cooling fan and aluminum sheets. Integrated 60A FOC ESC ensures intelligent and reliable performance, improving throttle response and driving efficiency. Efficient and solid propellers made of carbon composite reduce vibration and noise, enhancing flight stability and safety.

Convenient and efficient, the MAD 6X-10 propulsion combo arm set is great for endurance flight. It features IP45 water and dust resistance, a built-in LED indicator with red and green options, and various parameters including max thrust, recommended take-off weight, voltage, temperature range, and compatible carbon tube sizes.

PRODUCT DRAWING details a 6X-10 150KV propulsion combo with HAVOC 22×7.0 folding propeller for 12S operation. It includes performance metrics like thrust, voltage, current, and efficiency at various throttle settings. Troubleshooting guide addresses issues like motor startup failure and abnormal indicator lights.

Indicator lights and audible alerts for motor controller troubleshooting. Faults during self-check include power-on issues, abnormal supply voltage, or hardware problems. Solutions involve checking connections, adjusting throttle values, and inspecting motor wires. Operation faults cover stalled motors, short circuits, and high temperatures, requiring inspection of wiring and components.
