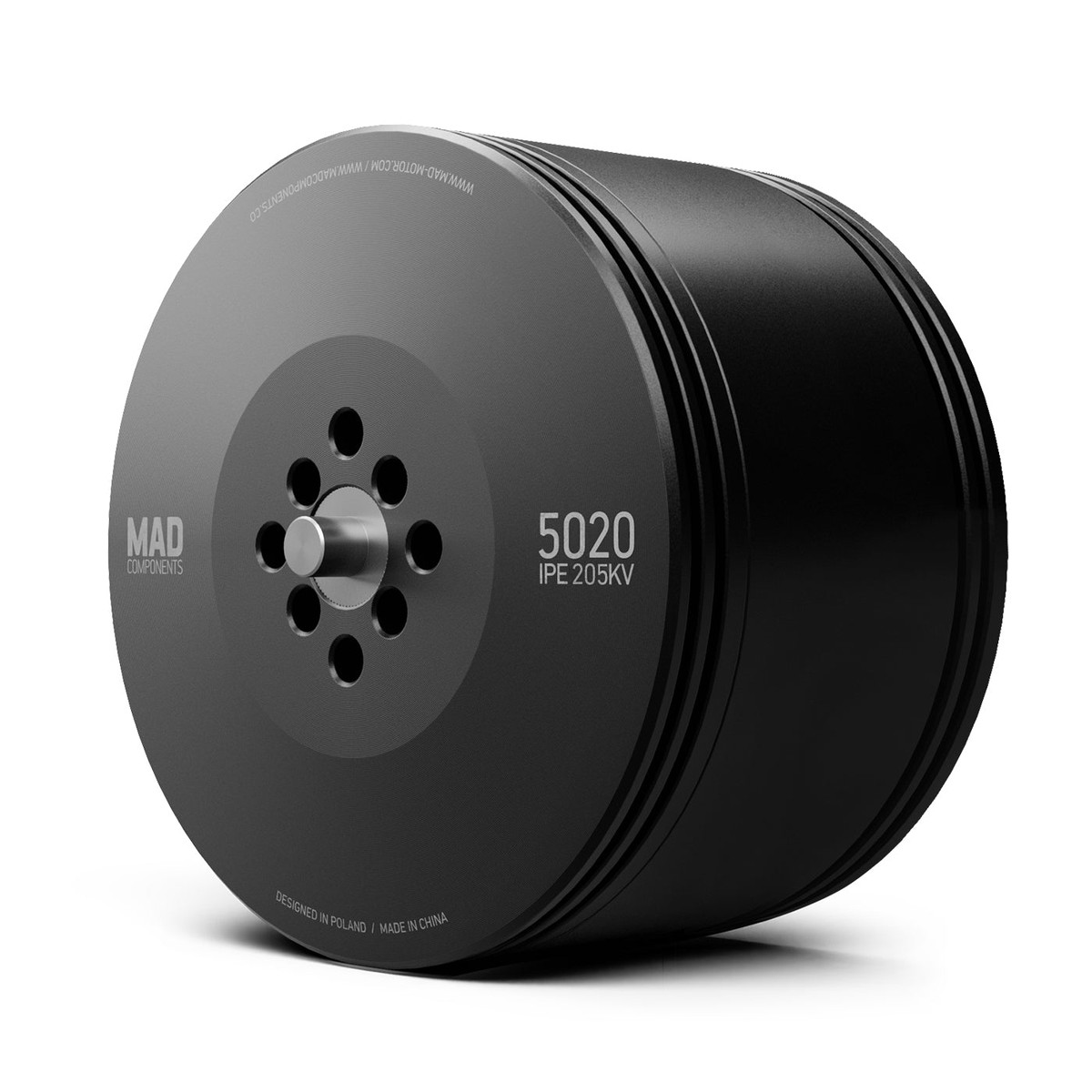

MAD 5020 IPE V3.0 205KV EVTOL Drone Motor, 12S, IP45, 8kg Max Thrust, 290g, AMPX 60A

Overview

MAD 5020 IPE V3.0 is an EVTOL drone motor in the 205KV class, designed for 12S operation with up to 8 kg max thrust and a 290 g motor weight.

Key Features

• IP45 protection rating
• Anticorrosive stator
• Centrifugal heat dissipation: YES
• Rotor balance: 5 mg; Motor balance: 10 mg

Specifications

Drawing & Mounting Dimensions

• Motor mounting pattern: 25-M3*4
• Prop mounting patterns: 12-M3*4; 15-M3*4
• Body diameter marking: 56
• Side-view length markings: 3.8; 35.5; 2
• Shaft/detail markings: M8*1; 27.5; 16.6; 24; 8
• Washer/spacer marking: 3.5

Whats Included

• Motor x1
• Propeller Plate x1
• Prop Adapter x1
• 4-6 Adapter Ring x1
• 3.5mm Bullet Connector x3
• Heat Shrinkable Tube x3
• M3*8 Motor Screws x4
• M3*10 Propeller Screws x2
• Sticker x2

Applications

• EVTOL and multirotor propulsion (12S)
• Builds requiring IP45-rated motor protection

For integration and compatibility questions (ESC, propellers, mounting), contact [email protected] or visit https://rcdrone.top/.

Reference Images

MAD 5020 IPE V3.0 205KV eVTOL motor drawings detail key dimensions and M3 mounting patterns to help plan fitment and hardware.

The MAD 5020 IPE V3.0 205KV motor package includes a prop adapter and plate, adapter ring, 3.5 mm bullet connectors, mounting screws, and heat-shrink tubes for wiring.

Details

The MAD 5020 IPE V3.0 205KV eVTOL drone motor drawing provides key dimensions and M3 mounting details to help with fitment and installation.

The MAD 5020 IPE V3.0 205KV EVTOL motor comes with a propeller plate, prop adapter, adapter ring, bullet connectors, screws, heat-shrink tubing, and a sticker.

MAD 5020 IPE V3.0 205KV eVTOL motor documentation includes a dimensioned motor render plus performance curves and test data tables for setup planning.
