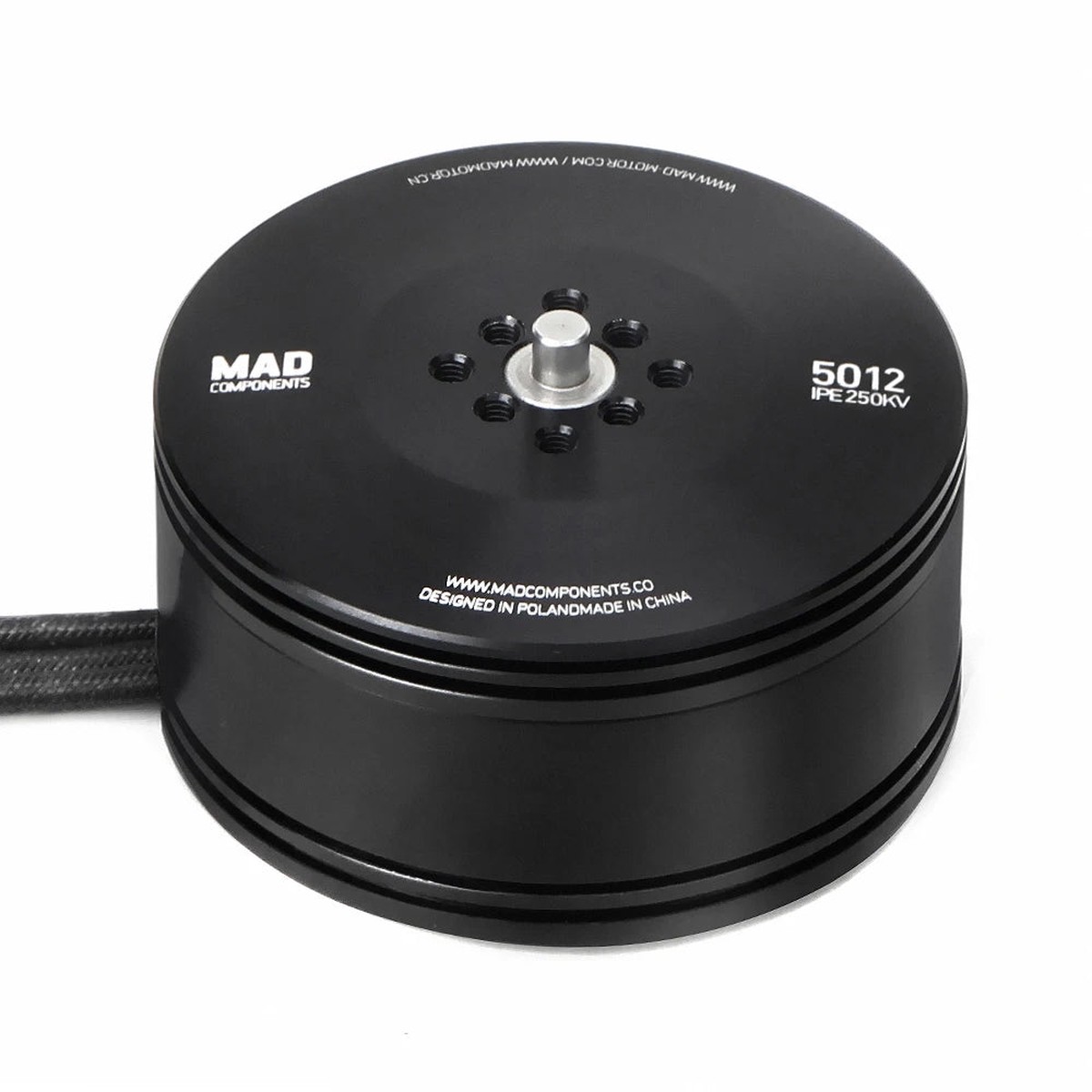

MAD 5012 IPE V3.0 Drone Motor Overview

The MAD 5012 IPE V3.0 Brushless Motor is a versatile and high-performance motor designed for various drone applications, offering KV options of 160, 250, 320, and 340. It features robust construction with IP45 protection, efficient centrifugal heat dissipation, and high-quality EZO bearings. The motor delivers maximum thrust ranging from 5.1 kg to 6.1 kg, depending on the KV rating, and is compatible with 6S to 12S lipo batteries. Suitable for quadcopters, hexacopters, and octocopters, it supports different propeller sizes and ensures stable performance under demanding conditions. Ideal for professional drone operations, it balances weight, power, and thrust effectively.

MAD 5012 IPE V3.0 Drone Motor SPECIFICATIONS

Brand Name: MAD COMPONENTS

Origin: Mainland China

Material: Metal

Recommend Age: 12+y

RC Parts & Accs: Motors

Size: 110*110*50mm

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Certification: CE

Certification: RoHS

Remote Control Peripherals/Devices: MOTOR

Tool Supplies: Cutting

Quantity: 1 pcs

Model Number: MAD 5012 IPE

Four-wheel Drive Attributes: Motors

Motor Dimesions: 56X29.5 mm

Motor weight: 200 g

Product Boxed Weight: 333 g

Configuration: 24N28P

Degree of Protection: IP35

Rated volatge: 12 S

Maximum Thrust: 5142 g

Maximum Current: 21 A

Maximum Power: 882W

Package: Color Box

MAD 5012 Motor Data

Parameter	Value	Parameter	Value
Motor Model	MAD 5012 IPE V3.0	Number of pole pairs	14
Stator	Japan / Anticorrosive	Varnished wire Degree	180C
Motor Size	D:56 29.5 mm	Magnet Degree	150C
Degree of Protection	IP45	Cable Length	150 mm (extended Enameled wires)
Centrifugal Heat Dissipation	YES	Rotor Balance	5 mg
Propeller Mounting Holes	D:12 M34, D:15 M34	Motor Balance	10 mg
Shaft Diameter	IN: 6 mm	Motor Mounting Holes	D:25 M34
Bearing	EZO 696ZZ*2	Disruptive test	500 V
Additional Accessories	Propeller Plate 1, 4-6 Adapter Ring 1, 3.5mm Bullet Connector3, Heat Shrinkable Tube3, M36mm 4 propeller seat Screws, M38mm 4 Motor Screws, M310mm 2 Propeller Screws, Bullet propeller seat1, Sticker2

MAD 5012 160KV Specifications

Parameter	Value	Parameter	Value
RPM/V	160 KV	Nominal Voltage	12S lipo battery
No Load Current	0.6A / 20V	Internal resistance	147 m
Motor Weight	200 g	Product Boxed Weight	333g (110 x 110 x 50 mm)
Maximum Current	18.5 A	Maximum Power	882W
Maximum thrust	5.1 kg	Maximum Torque	1.1 Nm
Recommended ESC	MAD AMPX 40A (5-14S) HV	Recommended Propellers	18×6.1, 18×5.7, 19×5.7, 20×6.0
UAV take-off weight	12S-20″/6.5kg–Quadcopter, 10kg–Hexacopter, 13.5kg–Octocopter	Single rotor take-off weight	1.4kg ~ 2.0kg

MAD 5012 250KV Specifications

Parameter	Value	Parameter	Value
RPM/V	250 KV	Nominal Voltage	8S lipo battery
No Load Current	1.1A / 20V	Internal resistance	61 m
Motor Weight	200 g	Product Boxed Weight	333g (110 x 110 x 50 mm)
Maximum Current	36 A	Maximum Power	1126W
Maximum thrust	6.1 kg	Maximum Torque	1.4 Nm
Recommended ESC	MAD AMPX 40A (5-14S) HV	Recommended Propellers	19×5.7, 20×6.0, 21×6.3
UAV take-off weight	8S-20″/7.6kg–Quadcopter, 11.4kg–Hexacopter, 15.2kg–Octocopter	Single rotor take-off weight	1.4kg ~ 2.0kg

MAD 5012 320KV Specifications

Parameter	Value	Parameter	Value
RPM/V	320 KV	Nominal Voltage	6S lipo battery
No Load Current	1.4A / 20V	Internal resistance	49 m
Motor Weight	200 g	Product Boxed Weight	333g (110 x 110 x 50 mm)
Maximum Current	43.7 A	Maximum Power	1007W
Maximum thrust	5.5 kg	Maximum Torque	1.3 Nm
Recommended ESC	MAD AMPX PRO 40A-A (2-6S)	Recommended Propellers	20×6.0, 21×6.3, 22×6.6
UAV take-off weight	6S-21″/8kg–Quadcopter, 12kg–Hexacopter, 16kg–Octocopter	Single rotor take-off weight	1.4kg ~ 2.0kg

MAD 5012 340KV Specifications

Parameter	Value	Parameter	Value
RPM/V	340 KV	Nominal Voltage	6S lipo battery
No Load Current	1.5A / 20V	Internal resistance	43 m
Motor Weight	195 g	Product Boxed Weight	328g (110 x 110 x 50 mm)
Maximum Current	39.6 A	Maximum Power	924W
Maximum thrust	5.1 kg	Maximum Torque	1.1 Nm
Recommended ESC	MAD AMPX PRO 40A-A (2-6S)	Recommended Propellers	18×6.1, 19×5.7, 20×6.0
UAV take-off weight	6S-20″/8kg–Quadcopter, 12kg–Hexacopter, 16kg–Octocopter	Single rotor take-off weight	1.4kg ~ 2.0kg

Products Description

MAD 50 series high efficient drone motors.Customs stators.24N28P,the most efficient motors.Arc magnets.Very good motor electromagnetic design.Designed for endurance flight*Brand new upgraded 3rd generation of 5012 IPE for most reliability, efficiency, higher safety and longer service life. Upgraded for various rigorous applications and long range drones.*IP45 protection level*15mm two over-sized bearings*Double security of shaft lock*Max thrust 6KG

Motor Test Benchmarks

Name: MAD 5012 IPE V3.0 Drone Motor - KV160 KV250 KV320 KV340 Big Thrust DC Brushless Motor For Spare Part and RC Quadcopter Multicopter Drone
