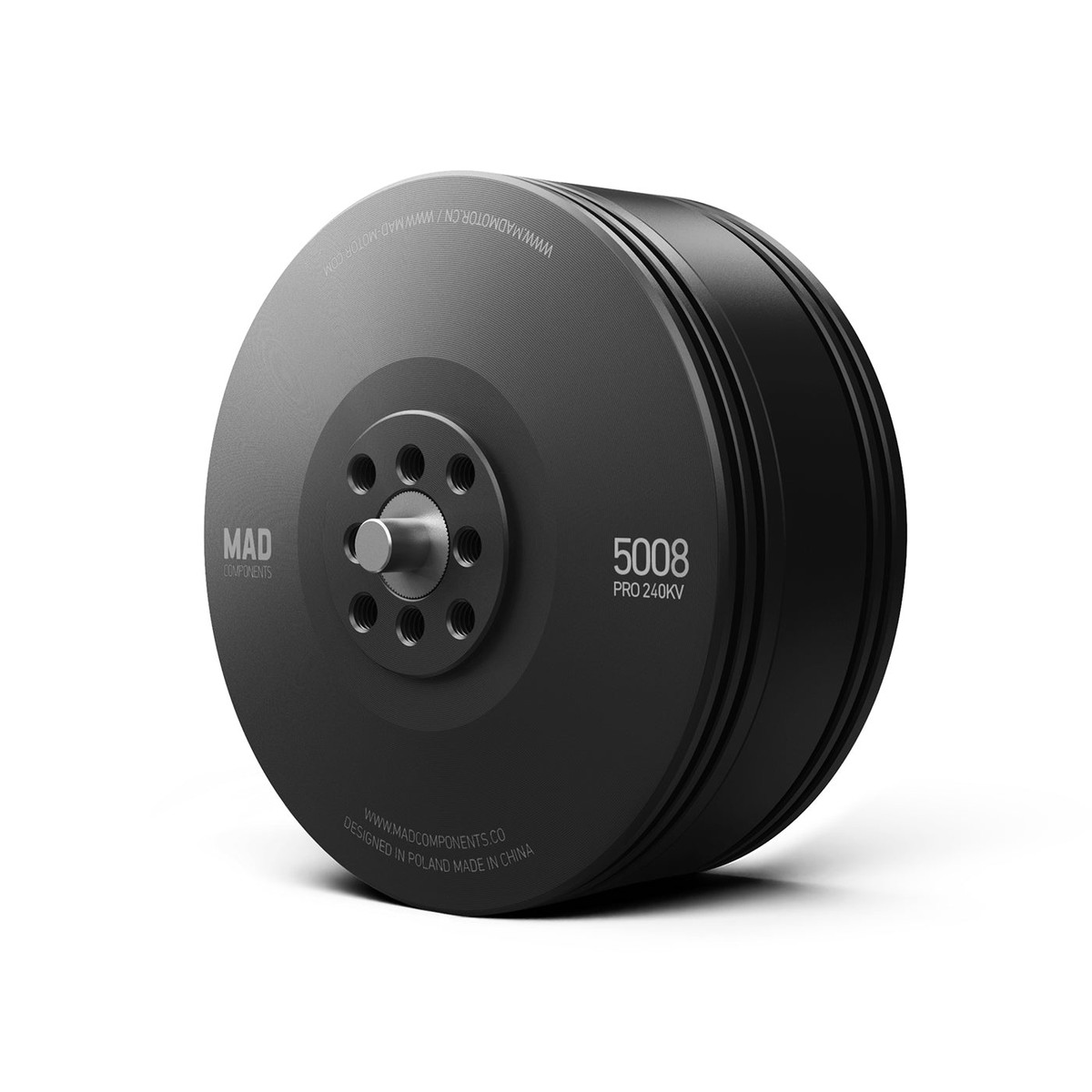

Name: MAD 5008 PRO IPE Autocenter Feathering Propeller Drone Motor - 170KV/240KV/300KV/340KV/400KV
SKU: ELAC22173209699
Availability: InStock

Description
Reviews (0)

Overview

MAD 5008 PRO IPE is a drone motor with an autocenter feathering propeller system designed to return to a horizontal position relative to the wing upon shutdown for streamlined alignment. It is offered in multiple KV options for eVTOL / multirotor propulsion setups.

Key Features

Autocenter feathering propeller system
Centrifugal heat dissipation: YES
Degree of protection: IP45
Anticorrosive stator

For integration or compatibility questions (ESC, propeller, battery), contact https:/// or email support@.

Specifications

General (from provided description)

Sustained thrust	1.2~2.1kg
Max thrust	4.8kg
Support voltage	4S;6S
Weight	176g

Motor Data (MAD 5008 PRO IPE V1.0)

Motor model	MAD 5008 PRO IPE V1.0
Number of pole pairs	14
Stator	Anticorrosive
Varnished wire degree	180C
Motor size	D:56 30.4 mm
Magnet degree	150C
Degree of protection	IP45
Cable length	150 mm 16# Awg(Black) silicone
Centrifugal heat dissipation	YES
Rotor balance	5 mg
Propeller mounting holes	D:12 M34, D:15 M34
Motor balance	10 mg
Shaft diameter	IN: 6 mm
Motor mounting holes	D:25 M34
Bearing	696ZZ*2
Disruptive test	500 V

Drawing / Mounting Dimensions (from image)

Motor diameter	56
Body length callout	23.5
Additional callouts	3.9; 3; 4
Motor mounting holes	25-M3*4
Propeller mounting holes	15-M34; 12-M34
Additional hole callout	12-2*3.2

KV Variant Performance Summaries (from images)

KV	Recommended hover thrust	Maximum thrust	Optimized weight	Efficiency (shown)
170KV	1.5~2.0 kgf	4.8 kgf	175 g	>81%
240KV	1.0~2.0 kgf	4.1 kgf	176 g	>80%
300KV	1.0~2.0 kgf	3.8 kgf	170 g	>80%
340KV	1.5~2.0 kgf	4.0 kgf	170 g	>79%
400KV	1.5~2.0 kgf	4.1 kgf	175 g	>79%

170KV Specifications (image panel)

RPM/V	170 KV
No load current	0.42A/20V
Motor weight	175 g
Maximum current	20.6 A
Maximum thrust	4.8 kg
Recommended ESC	MAD AMPX 40A (5-14S) HV
Nominal voltage	12S lipo battery
Internal resistance	195m
Product boxed weight	334g (110 x 110 x 50 mm)
Maximum power	981W
Maximum torque	1.09 Nm
Recommended propellers	17×5.8, 18×6.1, 18×5.7
Single rotor take-off weight	1.5kg – 2kg
UAV take-off weight	12S-16″/7kg-Quadcopter; 10.5kg-Hexacopter; 14kg-Octocopter

240KV Specifications (image panel)

RPM/V	240 KV
No load current	0.67A/20V
Motor weight	176 g
Maximum current	29.9 A
Maximum thrust	4.1 kg
Recommended ESC	MAD AMPX PRO 40A (2-6S)
Nominal voltage	6-8S lipo battery
Internal resistance	104m
Product boxed weight	335g (110 x 110 x 50 mm)
Maximum power	788W
Maximum torque	1.1 Nm
Recommended propellers	20×6.0, 21×6.3, 22×6.6, 22×7.0, 18×6.1, 18×5.7, 17×5.8
Single rotor take-off weight	1kg – 2kg

300KV Specifications (image panel)

RPM/V	300 KV
No load current	0.95A/20V
Motor weight	170 g
Maximum current	25.5 A
Maximum thrust	3.8 kg
Recommended ESC	MAD AMPX PRO 40A (2-6S)
Nominal voltage	6S lipo battery
Internal resistance	60m
Product boxed weight	325g (110 x 110 x 50 mm)
Maximum power	600W
Maximum torque	0.84 Nm
Recommended propellers	18×5.1, 18×5.7, 19×5.7, 20×6.0
Single rotor take-off weight	1kg – 2kg

340KV Specifications (image panel)

RPM/V	340KV
No load current	1.1A / 20V
Motor weight	170 g
Maximum current	27.7 A
Maximum thrust	4.0 kg
Recommended ESC	MAD AMPX PRO 40A (2-6S)
Nominal voltage	6S lipo battery
Internal resistance	66.4m
Product boxed weight	329g (110 x 110 x 50 mm)
Maximum power	734W
Maximum torque	0.91 Nm
Recommended propellers	17×5.8, 18×5.1, 18×5.7, 19×5.7
Single rotor take-off weight	1.5kg – 2kg

400KV Specifications (image panel)

RPM/V	400 KV
No load current	1.35A / 20V
Motor weight	175 g
Maximum current	33.3 A
Maximum thrust	4.1 kg
Recommended ESC	MAD AMPX PRO 40A (2-6S)
Nominal voltage	6S lipo battery
Internal resistance	44.5m
Product boxed weight	334g (110 x 110 x 50 mm)
Maximum power	776.8W
Maximum torque	0.82 Nm
Recommended propellers	16×5.4, 17×5.8
Single rotor take-off weight	1.5kg – 2kg
UAV take-off weight	6S-17″/7kg-Quadcopter; 10.5kg-Hexacopter; 14kg-Octocopter

Whats Included

Motor x1
Propeller plate x1
3.5mm bullet connector x3
46 adapter ring x1
Heat shrinkable tube x3
M3*8 motor screws x4
M3*10 propeller screws x2
Sticker x2

Applications

eVTOL airframe propulsion systems using autocenter feathering propellers
Multirotor UAV platforms requiring high-thrust motor options across multiple KV ratings

Performance Charts (Original Panels)

The following original panels include the full analytical graphs and operating tables for each KV option.

The MAD 5008 PRO 170KV motor spec sheet lists a 175 g weight, recommended 1520 kgf load range, and performance curves for setup planning.

The MAD 5008 PRO 240KV drone motor is rated for 6S setups and lists a 176 g motor weight with over 80% efficiency on the spec sheet.

MAD 5008 PRO IPE performance tables provide quick reference figures across multiple prop and battery configurations.

The MAD 5008 PRO motor performance sheet includes a thrust curve graph and detailed test tables for setup and matching with props and ESCs.

The MAD 5008 PRO 340KV motor includes detailed performance curves and test tables to help choose props and tune thrust on 46S setups.

Drawings & Accessories Images

MAD 5008 PRO IPE motor dimensions and mounting hole pattern help confirm fitment with your drone frame and hardware.

Details

MAD 5008 PRO IPE motor mounting uses multiple M3 bolt patterns with a 56 mm body diameter and 23.5 mm overall length for fit checks.

The MAD 5008 PRO IPE drone motor package includes the motor, propeller plate, connectors, adapter ring, heat-shrink tube, and mounting screws for installation.

The MAD 5008 PRO motor datasheet lists key figures like 170KV, 175 g weight, and efficiency over 81% alongside performance curves and test tables.

The MAD 5008 PRO 240KV motor specs list a 176 g weight and efficiency over 80% for 6S setups.

MAD 5008 PRO IPE performance tables list thrust, current draw, and efficiency across multiple propeller sizes and throttle settings.

MAD 5008 PRO motor test data provides performance curves and detailed tables to help choose a propeller and power setup.

The MAD 5008 PRO motor is listed as an energy-efficient 340KV option with 48S support, 40-inch prop pairing, and up to 1520 kg thrust.

The MAD 5008 PRO 400KV drone motor features a 65 mm housing and a listed weight of 175 g for efficient multirotor setups.
