MAD 5008 IPE V3 Drone Motor Overview

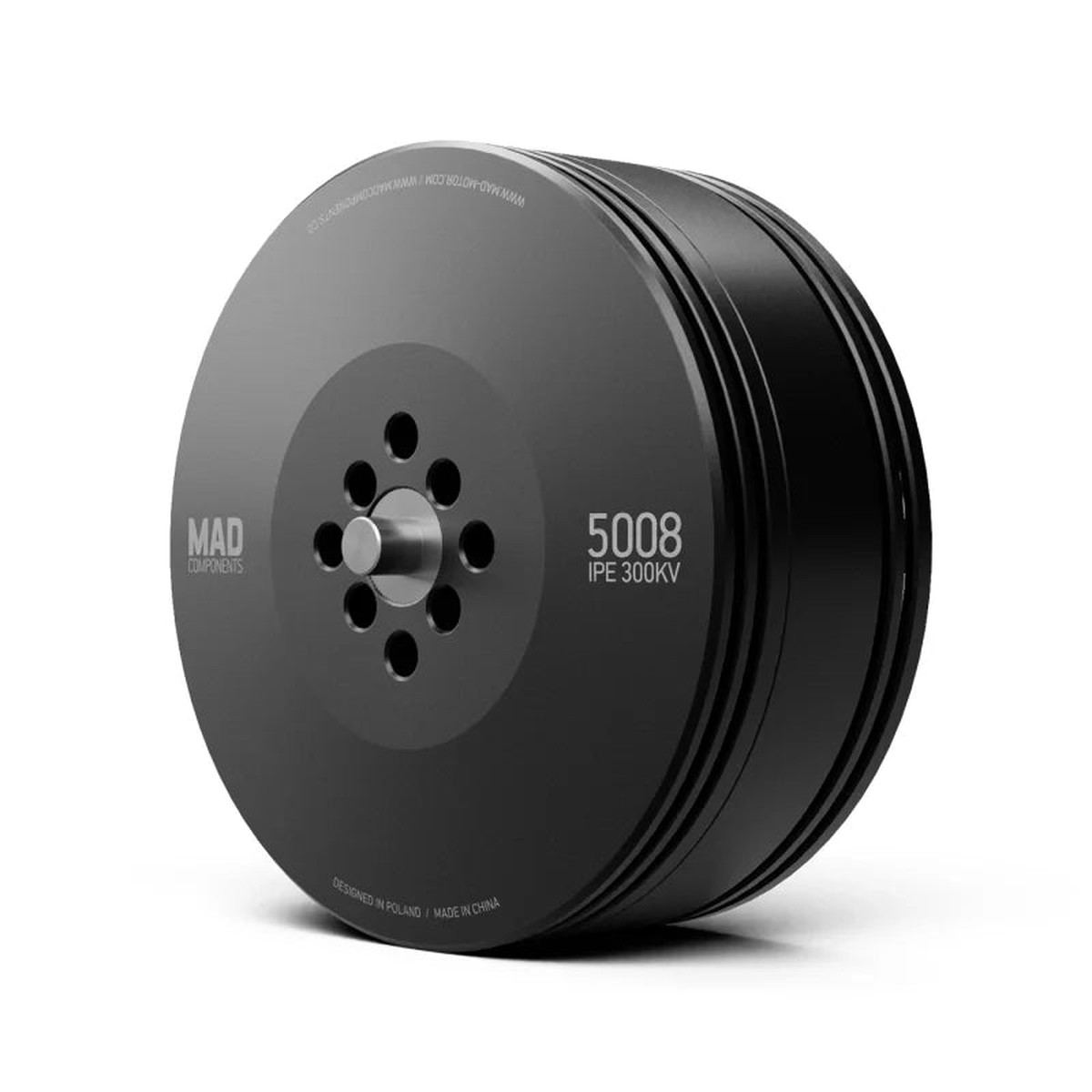

The MAD 5008 IPE V3 Drone Motor is a highly efficient and versatile motor designed by MAD EU, ideal for multirotors needing 1-2kg thrust per rotor. It supports propeller sizes of 18-20 inches and is widely used in long-range inspection, mapping, and surveying drones, including quadcopters and hexacopters. Key features include a stator from Taiwan, IP45 protection, and centrifugal heat dissipation. With a weight of 136-142g depending on the KV rating (170-400 KV), it offers maximum power ranging from 602W to 1029W and thrust up to 4.8kg. The motor is compatible with various recommended propellers and ESCs, ensuring optimal performance across different UAV configurations.

MAD 5008 IPE V3 Drone Motor Specifications

Motor Data

Specifications	Details	Specifications	Details
Motor Model	MAD 5008 IPE V3.0	Number of pole pairs	14
Stator	TAIWAN / Anticorrosive	Varnished wire Degree	180C
Motor Size	D:56 29.3 mm	Magnet Degree	150C
Degree of Protection	IP45	Cable Length	150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	YES	Rotor Balance	5 mg
Propeller Mounting Holes	D:12 M34, D:15 M34	Motor Balance	10 mg
Shaft Diameter	IN: 6 mm	Motor Mounting Holes	D:25 M34
Bearing	EZO 696ZZ*2	Disruptive test	500 V
Additional Accessories	Propeller Plate 1, 4-6 Adapter Ring 1, 3.5mm Bullet Connector3, Heat Shrinkable Tube3, M38mm 4 Motor Screws, M310mm 2 Propeller Screws, Sticker*2

MAD 5008170 KVSpecifications

Specifications	Details	Specifications	Details
RPM/V	170 KV	Nominal Voltage	12S lipo battery
No Load Current	0.42A / 20V	Internal resistance	195m
Motor Weight	141 g	Product Boxed Weight	304g (110 x 110 x 50 mm)
Maximum Current	20.6 A	Maximum Power	981 W
Maximum thrust	4.8 kg	Maximum Torque	1.09 Nm
Recommended ESC	MAD AMPX 40A (5-14S) HV	Recommended Propellers	17×5.8, 18×6.1, 18×5.7
UAV take-off weight	12S-18″ 7kg–Quadcopter	Single rotor take-off weight	1.5kg ~ 2kg
	10.5kg–Hexacopter
	14kg–Octocopter

MAD 5008 240 KV Specifications

Specifications	Details	Specifications	Details
RPM/V	240 KV	Nominal Voltage	6S lipo battery
No Load Current	0.67A / 20V	Internal resistance	104m
Motor Weight	142 g	Product Boxed Weight	305g (110 x 110 x 50 mm)
Maximum Current	29.9 A	Maximum Power	788 W
Maximum thrust	4.1 kg	Maximum Torque	1.1 Nm
Recommended ESC	MAD AMPX PRO 40A (2~6S)	Recommended Propellers	20×6.0, 21×6.3, 22×6.6, 22×7.0, 18×6.1
UAV take-off weight	6S-21″ 5kg–Quadcopter	Single rotor take-off weight	1kg ~ 2kg
	7.5kg–Hexacopter
	10kg–Octocopter

MAD 5008 300 KV Specifications

Specifications	Details	Specifications	Details
RPM/V	300 KV	Nominal Voltage	6S lipo battery
No Load Current	0.99A / 20V	Internal resistance	80m
Motor Weight	136 g	Product Boxed Weight	299g (110 x 110 x 50 mm)
Maximum Current	25.5 A	Maximum Power	602 W
Maximum thrust	3.8 kg	Maximum Torque	0.84 Nm
Recommended ESC	MAD AMPX PRO 40A (2~6S)	Recommended Propellers	18×6.1, 18×5.7, 19×5.7, 20×6.0
UAV take-off weight	6S-18″ 5kg–Quadcopter	Single rotor take-off weight	1.2kg ~ 1.7kg
	7.4kg–Hexacopter
	9.9kg–Octocopter

MAD 5008 340 KV Specifications

Specifications	Details	Specifications	Details
RPM/V	340 KV	Nominal Voltage	6S lipo battery
No Load Current	1.1A / 20V	Internal resistance	66.4m
Motor Weight	136 g	Product Boxed Weight	299g (110 x 110 x 50 mm)
Maximum Current	27.7 A	Maximum Power	734 W
Maximum thrust	4.0 kg	Maximum Torque	0.91 Nm
Recommended ESC	MAD AMPX PRO 40A (2~6S)	Recommended Propellers	17×5.8, 18×6.1, 18×5.7, 19×5.7
UAV take-off weight	6S-18″ 6kg–Quadcopter	Single rotor take-off weight	1.5kg ~ 2kg
	9kg–Hexacopter
	12kg–Octocopter

MAD 5008 400 KV Specifications

Specifications	Details	Specifications	Details
RPM/V	400 KV	Nominal Voltage	6S lipo battery
No Load Current	1.35A / 20V	Internal resistance	44.5m
Motor Weight	141 g	Product Boxed Weight	304g (110 x 110 x 50 mm)
Maximum Current	33.3 A	Maximum Power	776.8 W
Maximum thrust	4.1 kg	Maximum Torque	0.82 Nm
Recommended ESC	MAD AMPX PRO 40A (2~6S)	Recommended Propellers	16×5.4, 17×5.8
UAV take-off weight	6S-17″ 7kg–Quadcopter	Single rotor take-off weight	1.5kg ~ 2kg
	10.5kg–Hexacopter
	14kg–Octocopter

MAD 5008 IPE V3 Drone Motor Details

Drawing and mount holes
