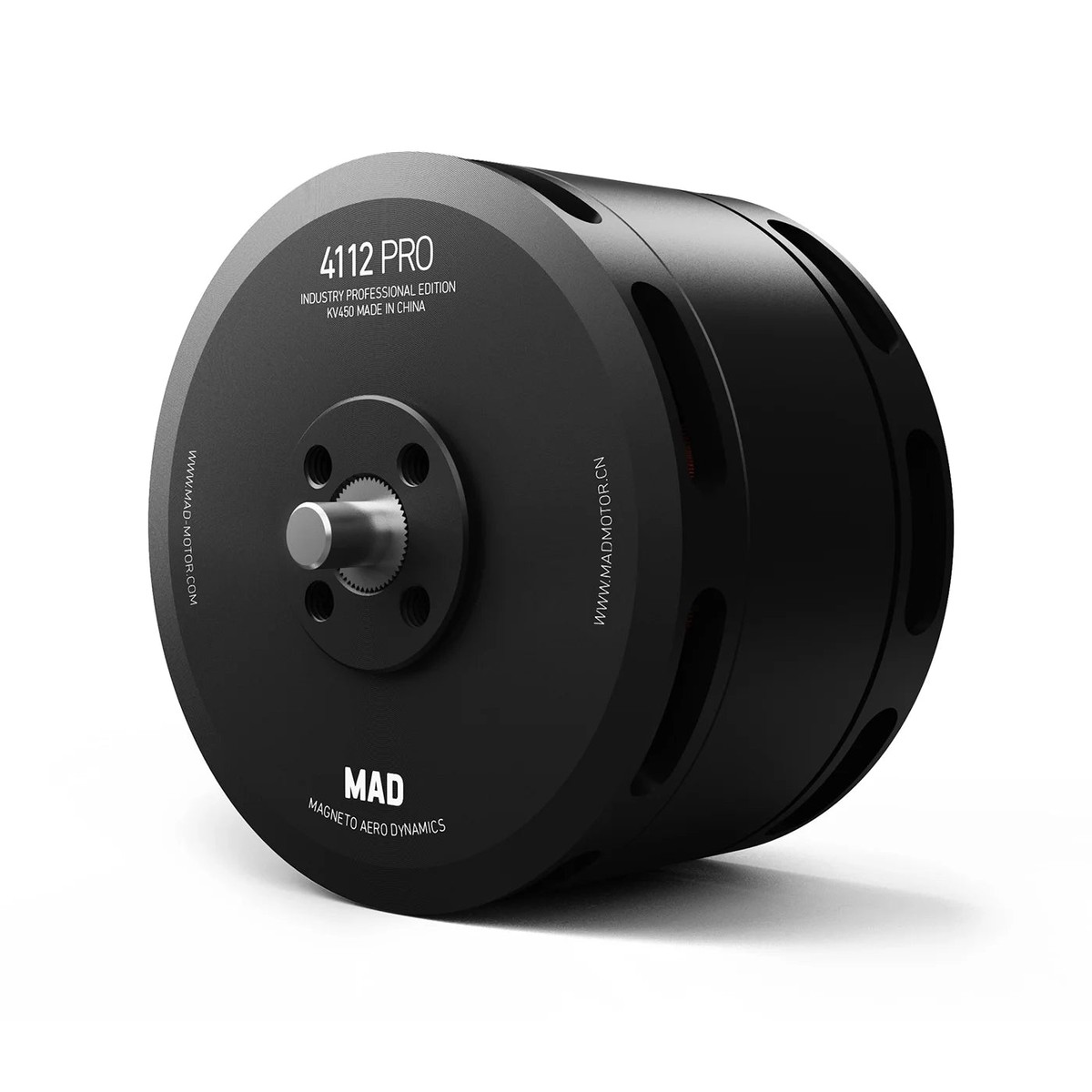

MAD 4112 PRO IPE 450KV Brushless Motor Overview

The MAD 4112 PRO IPE 450KV Brushless Motor is designed for high-performance drone applications, featuring a robust and efficient design. Key specifications include a 450KV rating, providing a maximum thrust of 3.8 kg and a maximum power of 920W. The motor operates with a nominal voltage of 6S lipo battery and supports a maximum current of 39.7 A. Weighing 146 g, it offers excellent heat dissipation and protection (IP35) with a 150 mm 16# Awg (Black) silicone cable. The motor is suitable for various UAV configurations, including quadcopters with a take-off weight of 6.8kg, hexacopters at 10.2kg, and octocopters at 13.6kg. Recommended ESC is the MAD AMPX PRO 40A (2~6S), and propellers of sizes 15×5.0 and 16×5.4 are suggested for optimal performance.

MAD 4112 PRO IPE 450KV Brushless Motor SPECIFICATIONS

Motor Data
Motor Model	MAD 4112 PRO IPE V1.0	Number of pole pairs	12
Stator	TAIWAN / Anticorrosive	Varnished wire Degree	150C
Motor Size	D:46.6 34.7mm	Magnet Degree	150C
Degree of Protection	IP35	Cable Length	150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	YES	Rotor Balance	5 mg
Propeller Mounting Holes	D:12 M34	Motor Balance	10 mg
Shaft Diameter	IN: 5 mm	Motor Mounting Holes	D:25 M34
Bearing	EZO 685ZZ1 / EZO 695ZZ1	Disruptive test	500 V
Additional Accessories	Propeller Plate 2, 4-6 Adapter Ring 2, 3.5mm Bullet Connector 6, Heat Shrinkable Tube 6, M36mm 8 Motor Screws, M310mm 4 Propeller Screws, Sticker *2

Specifications
RPM/V	450KV	Nominal Voltage	6S lipo battery
No Load Current	0.91A / 20V	Internal resistance	116.8m
Motor Weight	146 g	Product Boxed Weight	532g (110 x 110 x 55 mm) 2pcs/box
Maximum Current	39.7 A	Maximum Power	920 W
Maximum thrust	3.8 kg	Maximum Torque	0.73 Nm
Recommended ESC	MAD AMPX PRO 40A (2~6S)	Recommended Propellers	15×5.0, 16×5.4
UAV take-off weight	6S-16″/6.8kg–Quadcopter
	10.2kg–Hexacopter
	13.6kg–Octocopter
Single rotor take-off weight	1.4kg ~ 1.9kg
