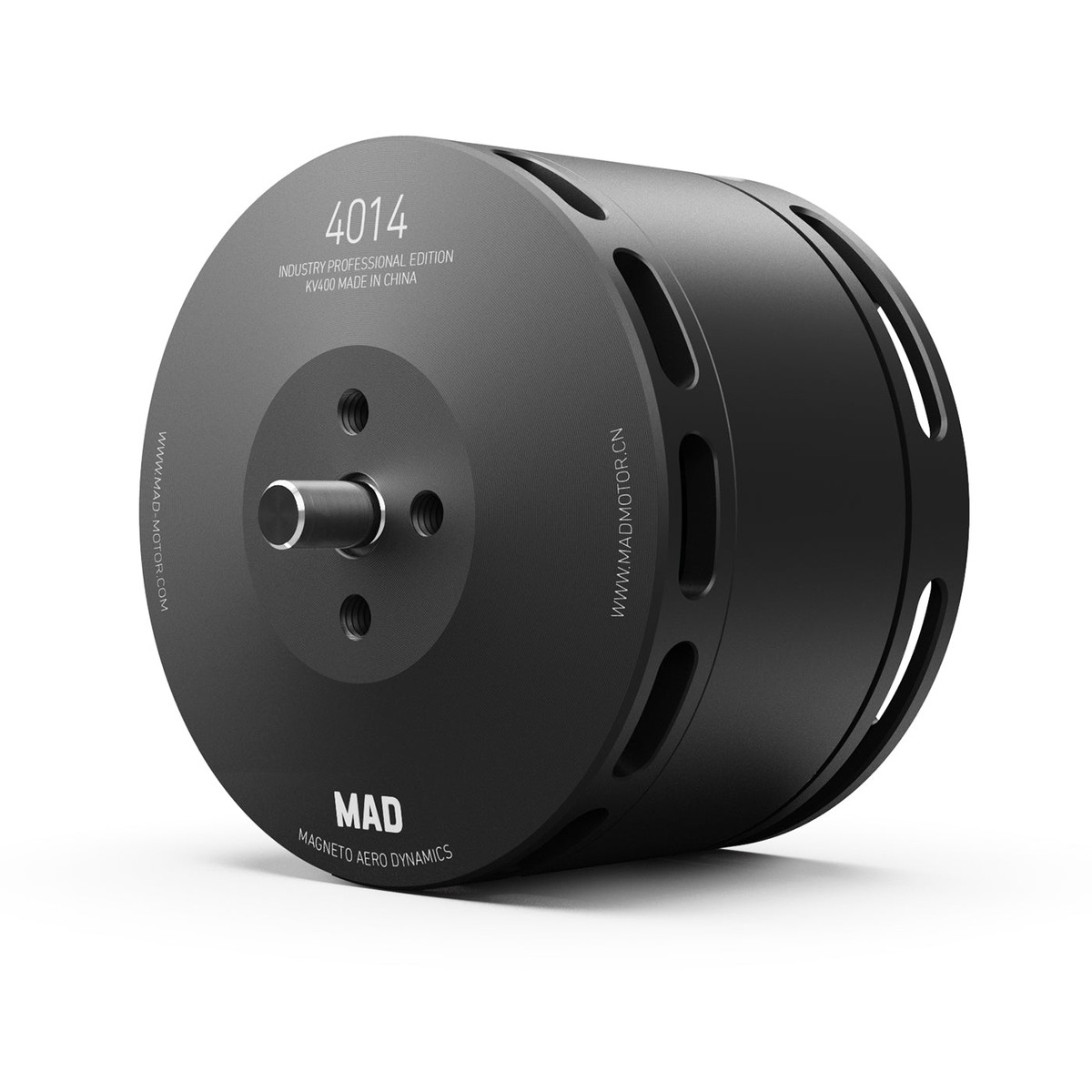

MAD 4014 IPE Drone Motor 370KV/400KV (6S) Brushless Motor, IP35, 1517in Prop, 4mm Shaft

Overview

MAD 4014 IPE is a drone motor offered in 370KV and 400KV options for 6S LiPo setups, optimized for 1517 inch propellers. It is specified for 9501600 g/rotor payload capacity and up to 3400 g (3.4 kg) max thrust per rotor (variant-dependent).

Key Features

• Optimized for 1517 inch high-performance carbon fiber propellers
• IP35 degree of protection
• 600 mm 18# AWG (Black) silicone cable
• Centrifugal heat dissipation: YES
• Rotor balance: 5 mg; Motor balance: 10 mg

For KV selection, customization questions, or bulk purchasing support, contact [email protected] or visit https://rcdrone.top/.

Specifications

Motor data (MAD 4014 IPE V1.0)

Mounting / drawing dimensions

370KV (datasheet summary)

• Edition text: 4014 Energy Efficient 370KV (Industry Professional Edition)
• Recommended hover thrust: 1.01.5 kgf
• Maximum thrust: 3.1 kgf
• Optimized weight: 166 g
• Efficiency: >83%
• Nominal voltage: 6S LiPo battery
• No load current: 0.91 A / 20V
• Internal resistance: 93 m
• Maximum current: 21.4 A
• Maximum power: 507 W
• Maximum torque: 0.64 N.m
• Recommended ESC: MAD AMPX PRO 40A (26S)
• Recommended propellers: 15×5.0, 16×5.4, 17×5.8
• Single rotor take-off weight: 1 kg ~ 1.5 kg
• UAV take-off weight (6S): 16″/ 4 kg – Quadcopter; 6 kg – Hexacopter; 8 kg – Octocopter
• Product boxed weight: 532 g (110 x 110 x 55 mm) 2pcs/box
• Shown test setup text: FLUXER PRO 15×5.0 MATT + AMPX 40A PRO (2~6S); 6S MAX 76C
• Additional table headers show: 6S MAX 89C (16×5.4 MATT) and 6S MAX 109C (17×5.8 MATT)

400KV (datasheet summary)

• Edition text: 4014 Energy Efficient 400KV (Industry Professional Edition)
• Recommended hover thrust: 1.01.5 kgf
• Maximum thrust: 3.4 kgf
• Optimized weight: 168 g
• Efficiency: >82%
• Nominal voltage: 6S LiPo battery
• No load current: 1.12 A / 20V
• Internal resistance: 73 m
• Maximum current: 26.1 A
• Maximum power: 612 W
• Maximum torque: 0.71 N.m
• Recommended ESC: MAD AMPX PRO 40A (26S)
• Recommended propellers: 15×5.0, 16×5.4, 17×5.8
• Single rotor take-off weight: 1 kg ~ 1.5 kg
• UAV take-off weight (6S): 16″/ 5 kg – Quadcopter; 7.5 kg – Hexacopter; 10 kg – Octocopter
• Product boxed weight: 536 g (110 x 110 x 55 mm) 2pcs/box
• Shown test setup text: FLUXER PRO 15×5.0 MATT + AMPX 40A PRO (2~6S); 6S MAX 80C
• Additional table headers show: 6S MAX 95C (16×5.4 MATT) and 6S MAX 116C (17×5.8 MATT)

Whats Included

• Motor x2
• Propeller Plate x2
• Prop Adapter x2
• Adapter Propeller Plate x2
• M6 Bullet x2
• M3*6 Motor Screws x8
• 3.5mm Bullet Connector x6
• 46 Adapter Ring x2
• Heat Shrinkable Tube x6
• M3*8mm Prop Adapter Screws x8
• M3*10 Propeller Screws x4
• Sticker x2

Applications

• Heavy-lift cinematography platforms (payload and flight performance depend on the full airframe system)
• Industrial logistics / VTOL platforms (range and cargo capability depend on aircraft design, battery, and regulations)
• General industrial monitoring and inspection platforms

Details

MAD 4014 IPE drone motor drawings provide key body dimensions and mounting hole pattern details for fitting frames and prop adapters.

The MAD 4014 IPE drone motor set includes two motors with prop plates, adapters, bullet connectors, heat shrink tubing, screws, and stickers for installation.

MAD 4014 IPE drone motor specs include a 370KV rating with thrust and efficiency curves plus detailed test tables for setup planning.

MAD 4014 IPE drone motor specs list a 400KV setup at 168g, with performance data for 34-inch prop configurations and 1015 kg thrust range.
