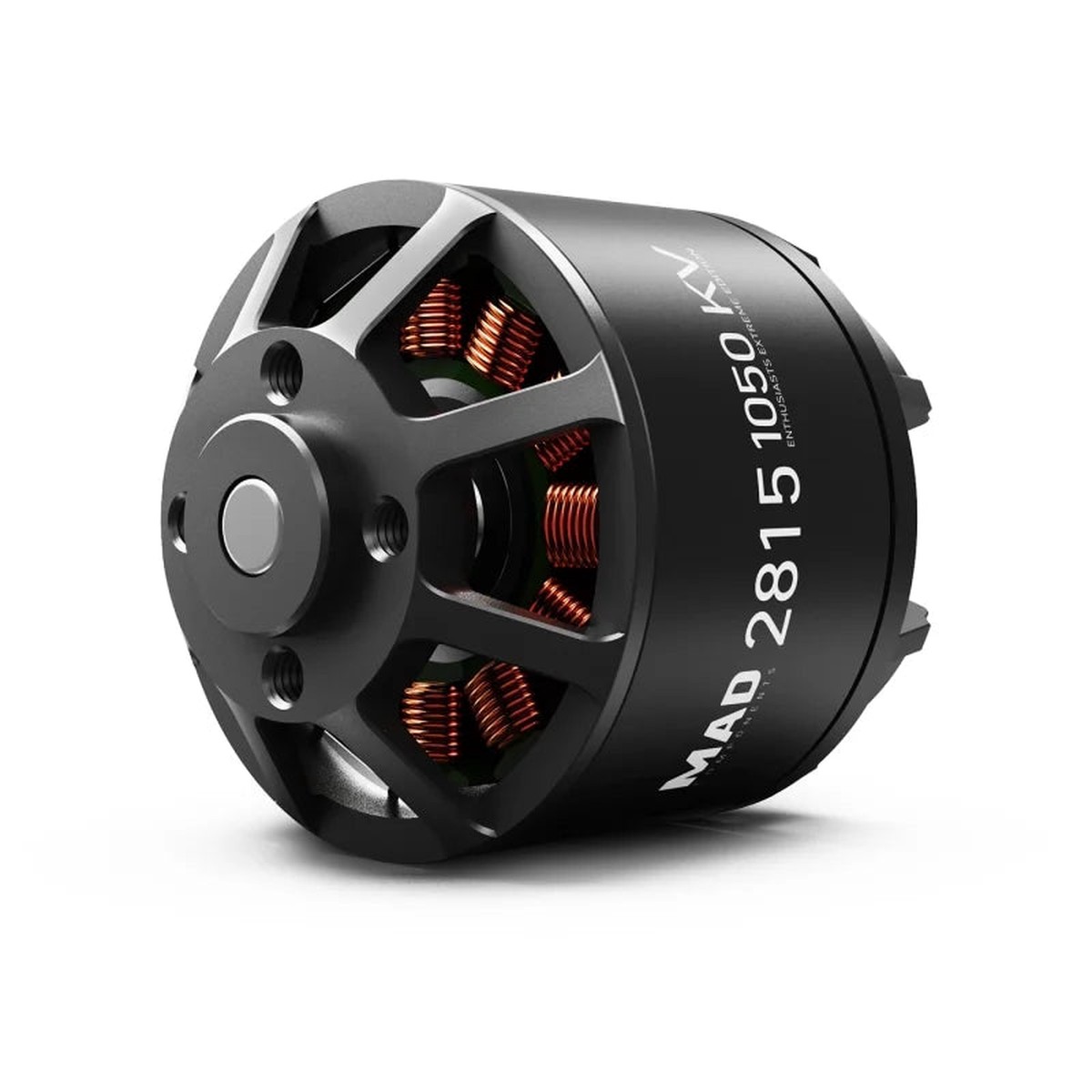

MAD 2815 VTOL Airplane Drone Motor Overview

The MAD X2815 EEE V1.0 motor is designed with robust features suitable for various UAV applications. It comes with a protective rainproof coating and high-quality components like EZO 694ZZ bearings and anticorrosive stator from Taiwan. The motor is available in two KV ratings: 900KV and 1050KV. The 900KV version supports a higher maximum thrust of 2.3 kg, while the 1050KV version can achieve up to 2.6 kg of thrust. Both versions are compatible with a range of propellers and can handle significant power and torque, making them ideal for quadcopters, hexacopters, and octocopters with varying take-off weights.

MAD X2815 series motors are the classic UAV motors for small to medium industrial use, efficient and for endurance flights. These sizes of motors have been on the market for 10 years, MAD Components has optimised them to be very lightweight. ENTHUSIASTS EXTREME EDITION for extreme weight reduction while maintaining the highest possible performance.

MAD 2815 VTOL Airplane Drone Motor Specifications

Motor Data

Motor Model	MAD X2815 EEE V1.0
Stator	TAIWAN / Anticorrosive
Motor Size	D:35 40.1mm
Degree of Protection	Rain protection
Centrifugal Heat Dissipation	Independent
Propeller Mounting Holes	D:15 M34
Shaft Diameter	IN: 4 mm
Bearing	EZO 694ZZ
Additional Accessories	Propeller Adapter 1, Prop Plate 1, Nut 1, 3.5mm Bullet Connector3, Heat Shrinkable Tube3, M38mm 4 Motor Screws, M38mm 4 Propeller Screws, Sticker2
Number of pole pairs	7
Varnished wire Degree	150C
Magnet Degree	150C
Cable Length	150 mm (extended Enameled wires)
Rotor Balance	3 mg
Motor Balance	10 mg
Motor Mounting Holes	D:25 M34
Disruptive test	500 V

Specifications

Parameter	900KV	1050KV
RPM/V	900KV	1050KV
No Load Current	1.95A / 15V	1.43A / 10V
Motor Weight	113 g	113 g
Maximum Current	39.5 A	54.2 A
Maximum Thrust	2.3 kg	2.6 kg
Recommended ESC	MAD AMPX PRO 40A (2~6S)	AMPX PRO 40A(2~6S) / XROTOR Pro 60A(4-6S)
UAV take-off weight	4S-11 / 3.5kg–Quadcopter 5.2kg–Hexacopter 7kg–Octocopter	4S-11 / 3.5kg–Quadcopter 5.2kg–Hexacopter 7kg–Octocopter
Nominal Voltage	4-6S lipo battery	3-4S lipo battery
Internal resistance	35.6m	27m
Product Boxed Weight	300g (110 x 110 x 55 mm)	280g (110 x 110 x 55 mm)
Maximum Power	580W	795.6W
Maximum Torque	0.38 Nm	0.45 Nm
Recommended Propellers	APC 11×5.5, APC 12×6, ACP 13×6.5	APC 11×5.5, APC 12×6, ACP 13×6.5
Single rotor take-off weight	0.45kg ~ 0.80kg	0.45kg ~ 0.80kg
