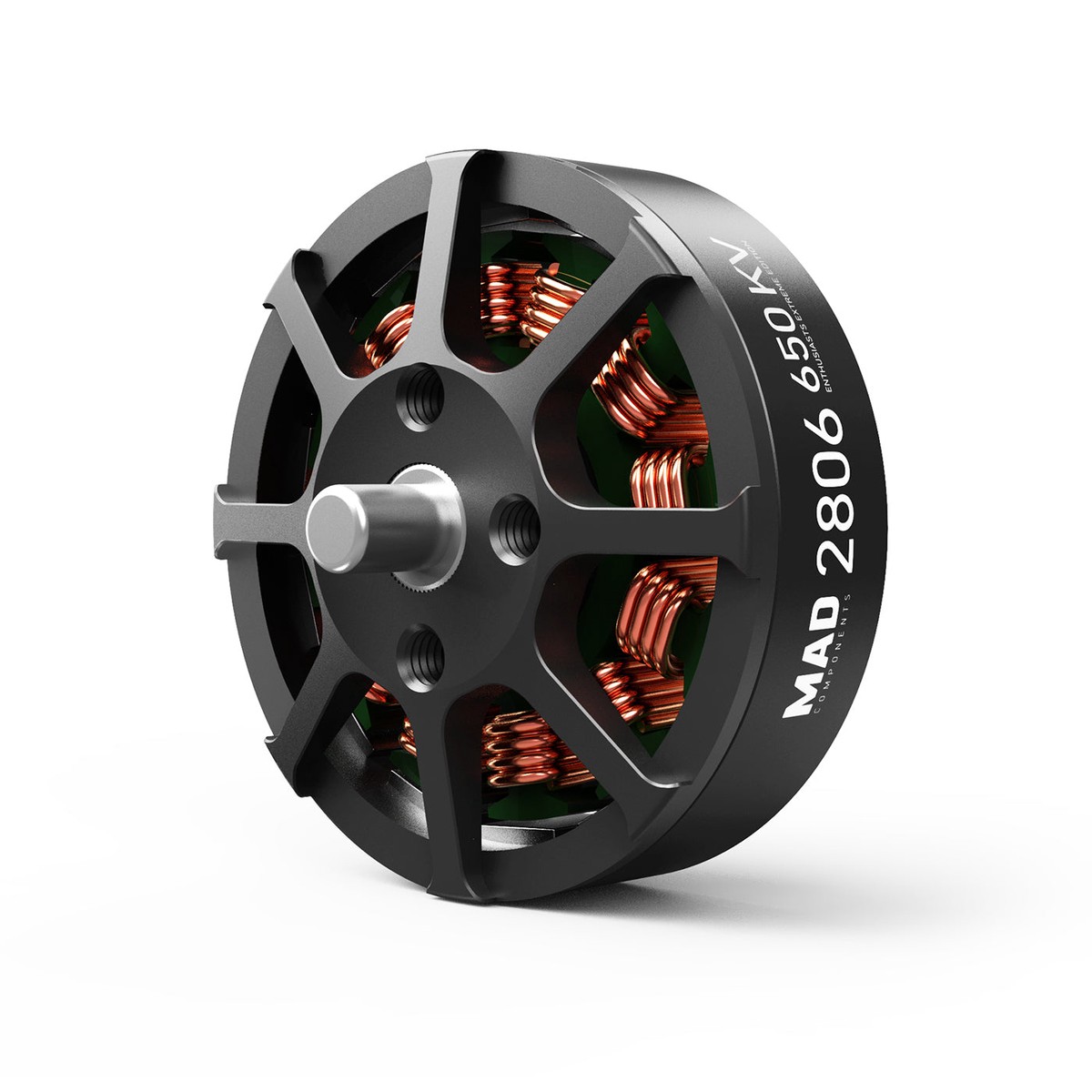

Name: MAD 2806 EEE V1.0 Drone Motor 400KV (6S) / 650KV (4S), 12N14P, 6061-T6, 2806 Size
SKU: A2380047959
Availability: InStock

Description
Reviews (0)

Overview

MAD 2806 EEE V1.0 is a drone motor platform offered in 400KV and 650KV variants, designed for long-endurance setups such as aerial survey and mapping, with a lightweight hollow structure, optimized magnetic circuit design, and rain protection.

Key Features

Supports 6S operation (feature description); 400KV performance data is based on 6S nominal voltage, 650KV performance data is based on 4S nominal voltage.
12N14P multi-slot stator design for smooth torque and efficiency.
6061-T6 aluminum alloy construction (feature description).
Independent centrifugal heat dissipation (Motor Data).
Rain protection (Motor Data).

Specifications

Motor Data (MAD 2806 EEE V1.0)

Motor Model	MAD 2806 EEE V1.0
Number of pole pairs	7
Stator	12N14P
Stator Size	High-quality Silicon steel sheets / High-temperature coating resistant to 180C
Varnished wire Degree	180C
Motor Size	D:35 19.8mm
Magnet Degree	150C
Degree of Protection	Rain protection
Cable Length	50 mm (extended enameled wires)
Centrifugal Heat Dissipation	Independent
Rotor Balance	3 mg
Motor Balance	10 mg
Propeller Mounting Holes	D:12 M34
Motor Mounting Holes	D:19 M34
Shaft Diameter	IN: 4mm
Bearing	NSK 694ZZMC3*1
Disruptive test	500 V

Mounting / Drawing Dimensions (from drawing)

Mounting pattern	19-M34 (motor mounting)
Prop mounting pattern	12-M34 (propeller mounting)
Motor outer diameter	35
Motor length dimension	19.8
Step / spacing dimension	5.5
Shaft diameter (drawing)	4
Additional drawing dimensions	3; 14.5; 19.5; M6; 15; 26; 20; 3.5; 4.5; 6.2; 2.5; 17.8; 3.24; 5.74; 12; 12-3.24; 5.84

400KV Variant (Energy Efficient 400KV)

Recommended hover thrust: 300~400 gf
Maximum thrust: 1.1 kgf (note: maximum thrust may depend on battery level, propeller type, air pressure and other conditions)
Optimized weight: 44 g
Efficiency: >74%

RPM/V	400KV
No Load Current	0.22A / 20V
Motor Weight	44 g
Maximum Current	7.2 A
Maximum thrust	1.1 kg
Recommended ESC	MAD AMPX 30A (2-6S)
UAV take-off weight	6S-12″ / 1.6kg–Quadcopter; 2.4kg–Hexacopter; 3.2kg–Octocopter
Nominal Voltage	6S lipo battery
Internal resistance	597m
Product Boxed Weight	–
Maximum Power	170W
Maximum Torque	0.18 Nm
Recommended Propellers	12×4.0, 13×4.4
Single rotor take-off weight	300g ~ 400g

650KV Variant (Energy Efficient 650KV)

Recommended hover thrust: 300~400 gf
Maximum thrust: 1.2 kgf (note: maximum thrust may depend on battery level, propeller type, air pressure and other conditions)
Optimized weight: 45 g
Efficiency: >78%

RPM/V	650KV
No Load Current	0.47A / 20V
Motor Weight	45 g
Maximum Current	13.4 A
Maximum thrust	1.2 kg
Recommended ESC	MAD AMPX 30A (2-6S)
UAV take-off weight	6S-12″ / 1.6kg–Quadcopter; 2.4kg–Hexacopter; 3.2kg–Octocopter
Nominal Voltage	4S lipo battery
Internal resistance	218m
Product Boxed Weight	–
Maximum Power	200W
Maximum Torque	0.2 Nm
Recommended Propellers	12×4.0, 13×4.4
Single rotor take-off weight	300g ~ 400g

Performance Data

MAD 2806 EEE 400KV (measured at input voltage 24 V, temperature 25C, sea level)

Legend: I = Current, P = Input Power, = Electrical Efficiency, T = Thrust, N = Rotational Speed.

400KV FLUXER PRO 12×4.0 MATT AMPX 30A (2-6S) 6S MAX 45C

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	23.76	0.31	7.4	5.2	0.020	2469	128	70.3	17.3
35	23.76	0.46	10.9	8.0	0.027	2813	171	73.4	15.7
40	23.76	0.66	15.7	11.8	0.035	3213	221	75.2	14.1
45	23.75	0.89	21.1	16.2	0.043	3603	274	76.8	13.0
50	23.75	1.15	27.3	20.6	0.050	3941	328	75.5	12.0
55	23.73	1.43	33.9	25.3	0.057	4235	377	74.6	11.1
60	23.73	1.74	41.3	31.5	0.067	4486	438	76.3	10.6
65	23.72	2.1	49.8	38.1	0.076	4793	493	76.5	9.9
70	23.7	2.55	60.4	46.9	0.088	5084	568	77.6	9.4
75	23.69	3.15	74.6	56.4	0.100	5386	665	75.6	8.9
80	23.67	3.65	86.4	65.3	0.110	5665	730	75.6	8.5
85	23.66	4.23	100.1	74.7	0.120	5942	799	74.6	8.0
90	23.63	4.84	114.4	84.6	0.131	6166	876	74.0	7.7
95	23.62	5.47	129.2	94.6	0.141	6406	938	73.2	7.3
100	23.59	6.42	151.4	107.9	0.154	6693	1041	71.3	6.9

400KV FLUXER PRO 13×4.4 MATT AMPX 30A (2-6S) 6S MAX 52C

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	23.77	0.33	7.8	6.8	0.027	2397	139	87.2	17.8
35	23.76	0.49	11.6	10.8	0.036	2711	194	87.9	16.7
40	23.75	0.72	17.1	14.6	0.045	3091	249	85.4	14.6
45	23.75	1.06	25.2	20.6	0.057	3446	329	81.7	13.1
50	23.74	1.4	33.2	27.2	0.069	3759	397	81.9	12.0
55	23.73	1.73	41.1	33.2	0.078	4066	453	80.8	11.0
60	23.72	2.07	49.1	39.1	0.087	4291	513	79.6	10.4
65	23.71	2.45	58.1	46.4	0.097	4564	573	79.9	9.9
70	23.69	2.96	70.1	54.7	0.108	4838	644	78.0	9.2
75	23.67	3.59	85.0	65.0	0.121	5129	739	76.5	8.7
80	23.66	4.2	99.4	75.1	0.134	5352	822	75.6	8.3
85	23.64	4.82	113.9	84.9	0.145	5590	861	74.5	8.0
90	23.62	5.44	128.5	93.3	0.153	5824	922	72.6	7.2
95	23.6	6.23	147.0	105.4	0.168	5990	1006	69.9	6.8
100	23.57	7.19	169.5	118.4	0.181	6249	1101	69.9	6.5

MAD 2806 EEE 650KV (measured at input voltage 16 V, temperature 25C, sea level)

Legend: I = Current, P = Input Power, = Electrical Efficiency, T = Thrust, N = Rotational Speed.

650KV FLUXER PRO 12×4.0 MATT AMPX 30A (2-6S) 4S MAX 54C

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	15.88	0.57	9.1	7.2	0.026	2654	143	79.1	15.7
35	15.87	0.82	13.0	10.8	0.034	3039	191	83.1	14.7
40	15.86	1.3	20.6	16.3	0.046	3503	264	82.0	12.8
45	15.85	1.75	27.7	22.3	0.055	3870	323	80.5	11.7
50	15.83	2.19	34.7	27.9	0.064	4159	377	80.4	10.9
55	15.82	2.74	43.3	34.2	0.073	4479	440	79.0	10.2
60	15.79	3.49	55.1	43.9	0.087	4820	513	79.7	9.3
65	15.77	4.31	68.0	53.6	0.099	5173	589	78.8	8.7
70	15.74	5.18	81.5	63.4	0.110	5506	663	77.8	8.1
75	15.71	6.27	98.5	76.2	0.126	5773	736	77.4	7.5
80	15.68	7.34	115.1	87.5	0.138	6052	821	76.0	7.1
85	15.65	8.39	131.3	98.0	0.148	6321	895	74.6	6.8
90	15.61	9.53	148.8	108.1	0.158	6579	961	73.2	6.5
95	15.58	10.8	168.3	121.1	0.170	6803	1030	72.0	6.1
100	15.52	12.64	196.2	137.7	0.186	7070	1104	70.2	5.6

650KV FLUXER PRO 13×4.4 MATT AMPX 30A (2-6S) 4S MAX 64C

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	Output Power [W]	Torque [N*m]	RPM	Thrust [gf]	Efficiency [%]	Efficiency [gf/W]
30	15.32	0.64	9.8	7.8	0.030	2490	145	79.6	14.8
35	15.31	0.97	14.9	11.9	0.040	2833	213	79.9	14.3
40	15.29	1.46	22.3	17.2	0.051	3228	274	77.1	12.3
45	15.28	2.04	31.2	24.2	0.064	3615	349	77.6	11.2
50	15.26	2.69	41.0	31.7	0.077	3926	415	77.3	10.1
55	15.24	3.21	48.9	38.0	0.086	4218	482	77.7	9.9
60	15.22	3.86	58.7	44.7	0.095	4494	544	76.1	9.3
65	15.2	4.68	71.1	53.4	0.105	4807	612	75.1	8.6
70	15.17	5.68	86.2	64.3	0.121	5077	690	74.6	8.0
75	15.13	6.77	102.4	75.6	0.135	5346	794	73.8	7.7
80	15.1	7.89	119.1	86.4	0.148	5577	878	72.5	7.4
85	15.07	8.97	135.2	95.5	0.156	5845	930	70.6	6.9
90	15.03	10.16	152.7	106.5	0.168	6053	1001	69.7	6.6
95	15	11.42	171.3	117.8	0.181	6217	1052	68.8	6.1
100	14.94	13.38	199.9	132.0	0.196	6432	1163	66.0	5.8

Whats Included

Propeller Plate *2
Prop Adaper *1
04-6 Adapter Ring *1
M3*omm *4 Motor Screws
M3*8mm *4 Prop Adaper Screws
M3*8mm *2 Propeller Screws
Sticker *1

For compatibility checks (propellers, ESC, battery) and setup assistance, contact [email protected] or visit https://rcdrone.top/.

Applications

Professional aerial photography and surveying
Long-range mapping and exploration
Training quadcopters

Details

Detailed motor dimensions and M3 mounting patterns help verify fitment with your frame, prop adapter, and motor mount.

MAD 2806 EEE V1.0 motor specs list a 400KV winding, 44g weight, and 6S compatibility alongside performance curves and test tables.

The MAD 2806 EEE V1.0 650KV motor comes with a detailed performance graph and spec tables to help match props and power setup.
