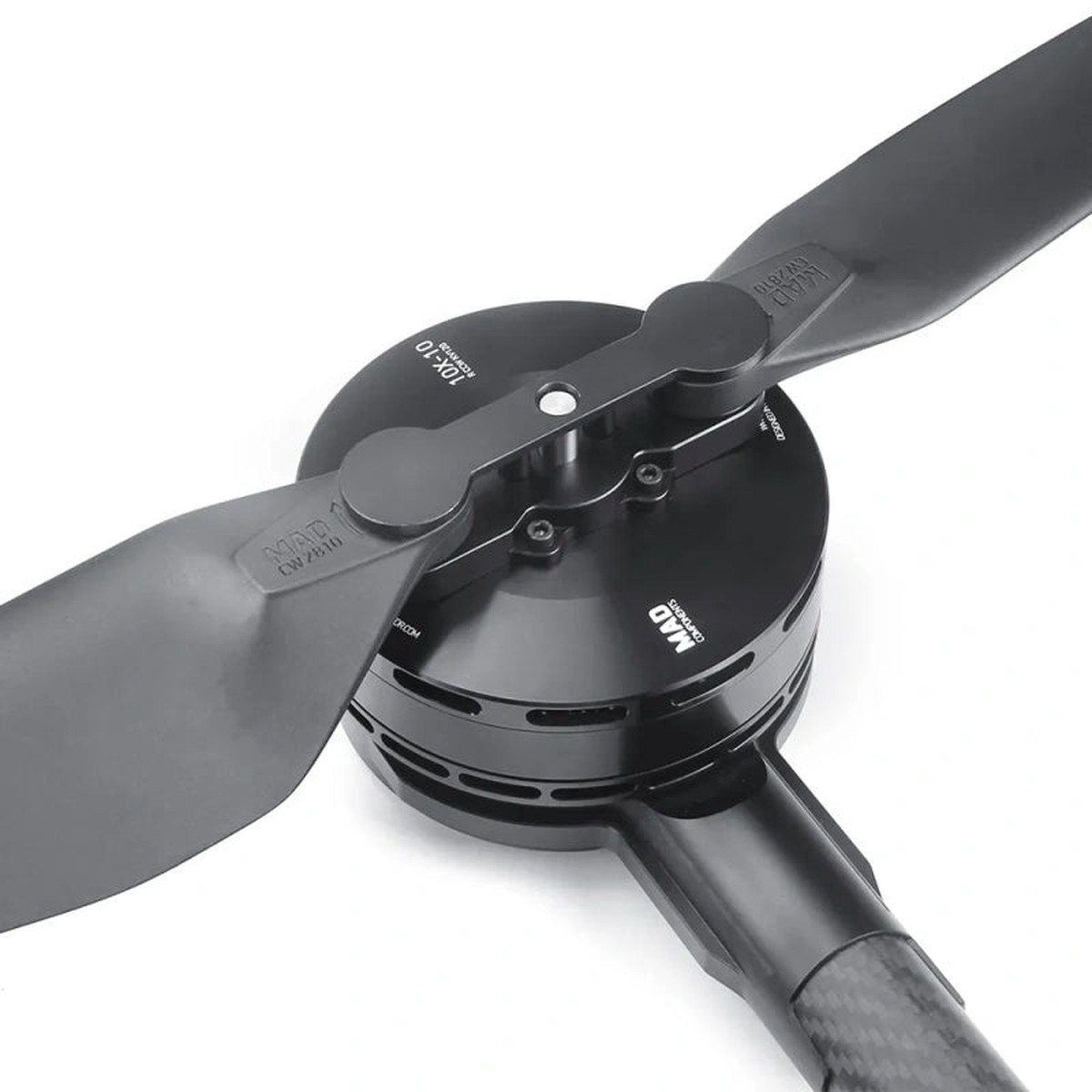

MAD 10X-10 M10 Drone Arm Set – 12S 120KV 60A 14kgF/rotor Propulsion System for Industrial Multirotor Drone

Overview

The MAD 10X-10 M10 drone arm set is a high-performance propulsion system designed for industrial multirotor applications, including mapping, aerial inspection, firefighting, defense, military, and search and rescue operations. Equipped with the MAD 10010 Drone Motor, a 60A 14S FOC ESC, and HAVOC AW 2810 polymer propellers, this system delivers a powerful thrust range from 4kgf to 14kgf per rotor. It is compatible with 30mm carbon arm tubes, making it ideal for endurance flight operations.

Key Features

• Max Thrust: 14kgF per rotor
• Efficiency: 8.3gf/w@5kg
• Operating Voltage: 12S LiPo
• Field-Oriented Control (FOC) ESC: Ensures smooth and efficient power delivery
• Iron Core Motor Design: Optimized for higher thrust and efficiency
• Integrated Propulsion System: Pre-assembled with motors, ESCs, and propellers for easy installation
• Ultra-quiet Polymer Propellers: CFD-designed winglets reduce noise and enhance aerodynamics
• Extended Flight Time: Low weight of 939g improves flight endurance
• Neat Cable Arrangement: Facilitates clean installation
• LED Indicator: Red/Green LED options for enhanced visibility

Technical Specifications

Basic Parameters

Propeller

Motor

ESC (Electronic Speed Controller)

Application

The MAD 10X-10 drone arm set is engineered for professional-grade drones that demand superior performance and efficiency. Whether used in industrial surveillance, security, or long-range reconnaissance, this propulsion system provides exceptional power while maintaining high reliability.

This drone arm set is an upgrade from the DJI E5000, offering enhanced stability, power efficiency, and extended flight endurance.

Details

MAD 10X-10 is a tuned propulsion system for industrial multirotor applications. It includes MAD 10010 motor, 60A14S FOC ESC, and Havoc AW 2810 polymer propellers. The system provides 8.8 to 13.2 lbs per rotor of rated load capacity, weighs 939g, and is compatible with 30mm carbon arm tubes.

High efficiency motor uses new iron core design, producing bigger thrust and high efficiency. It features precise workmanship with unique assembly process. The 10X-10 combo FOC60A14S ESC uses FOC algorithms for motor responsiveness and precision control, with additional protection functions extending ESC life.

Polymer propellers use lightweight, strong carbon fiber composite material. AW=anhedral winglets ensure ultra-quiet operation. CFD analysis optimizes the airfoil shape for multicopter efficiency. Thrust ranges from 4-6kgf/rotor (hovering) to 12kgf/rotor (max). Product drawing includes detailed dimensions and specifications.

The document details specifications for MAD 10X-10 KV120 and 10X-10 KV120 motors, including thrust, voltage, weight, and compatible components. It also provides benchmark data for performance metrics like torque, RPM, efficiency, and power consumption at various throttle settings. Recommendations for optimal usage are included.

Troubleshooting guide for ESC status using LED indicators and sounds. Lists fault symptoms, possible causes, and solutions during self-check and operation. Covers issues like motor not spinning, incorrect throttle settings, high temperature, and abnormal voltage. Provides steps to resolve each problem effectively.
