LDPOWER FA2814 880KV Airplane Brushless Motor 3-4S 754.8W 52A 4mm Shaft (28x14mm Stator)

Overview

The LDPOWER FA2814 Airplane Motor is a high-efficiency brushless outrunner designed for fixed-wing aircraft needing strong, stable power on 34S (11.114.8V) setups. With a 2814mm stator, 880KV, and up to 754.8W / 52A performance, the FA2814 focuses on smooth running, durability, and reliable coolingideal for sport and performance airplane builds. It comes with 1105mm leads, 16AWG high-temp silicone wire, and 3.5mm bullet connectors for easy installation.

Key Features

• Precision CNC machining for solid concentricity and balanced, low-vibration operation

• Hardened steel shaft for extra strength (4mm shaft)

• High-purity oxygen-free copper windings for efficient output

• High-grade magnets + 0.2mm silicon steel laminations to improve efficiency and responsiveness

• Oversized NSK ball bearings (original imported) for long service life

• Optimized cooling structure to keep the motor running cooler under load

• FA series options available: versions with bottom output shaft or no bottom output shaft (contact for the exact configuration you need)

Specifications (FA2814)

Dimensions & Wiring Notes

• Drawing shows 35mm motor diameter and 1105mm lead length

• Leads are 16AWG with 3.5mm bullet connectors

• Please pay attention to the indicated screw-hole and lead-out direction during installation

Applications

• Fixed-wing airplanes requiring a compact, efficient outrunner for 3S4S power systems

• Sport / performance airplane builds where smoothness, cooling, and durability matter

Whats Included

• 1 LDPOWER FA2814 Airplane Motor with 16AWG high-temp silicone leads (1105mm) and 3.5mm bullet connectors

Details

The 2814 880KV motor datasheet lists key specs such as 11.114.8V input, 52A max sustained current, and prop test results.

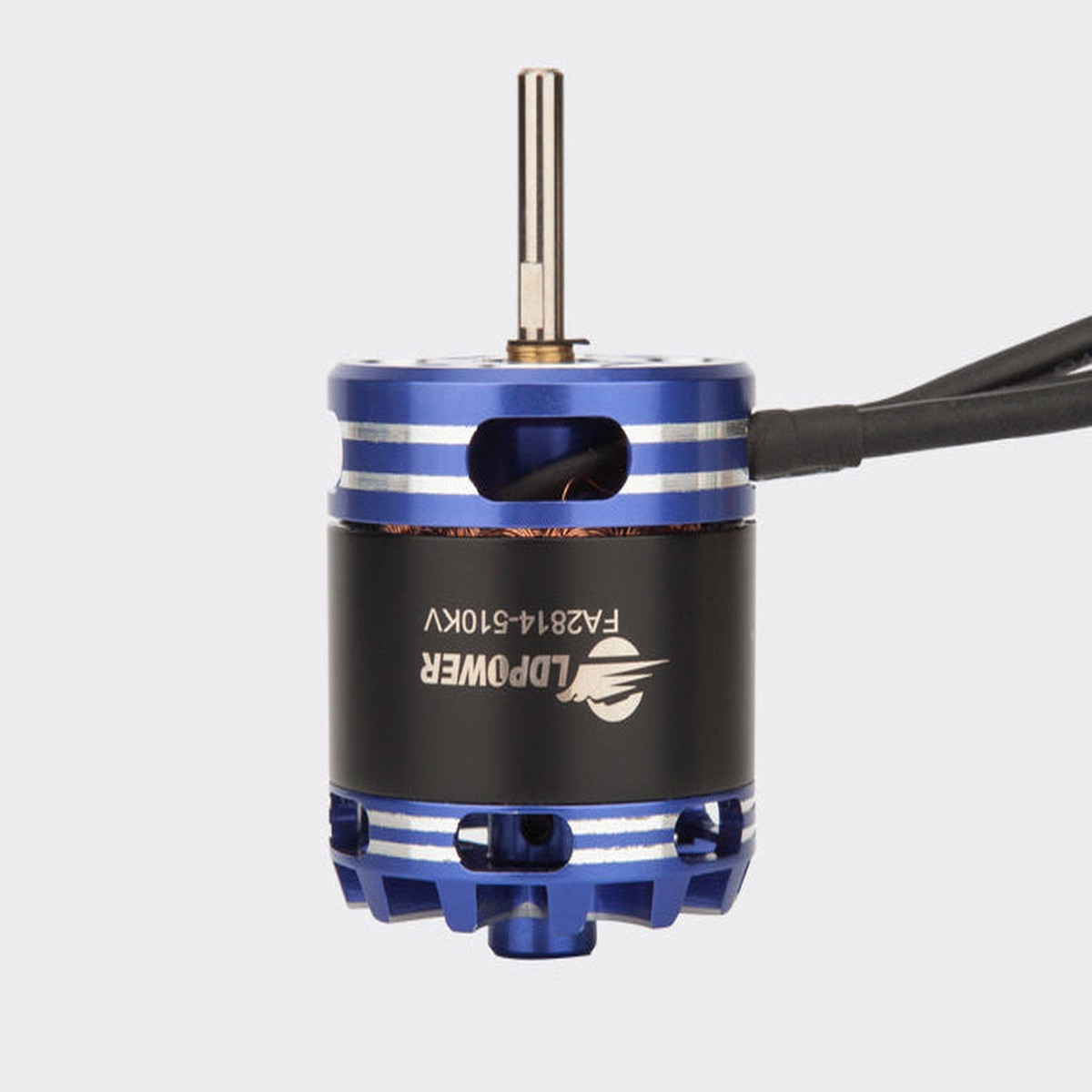

The LDPOWER FA2814 brushless airplane motor includes a blue aluminum mount, prop adapter, spinner-style collet, and screws for installation.

The FA2814 motor drawing details the 4-M3 mounting pattern, 35mm body diameter, and 16AWG leads with 3.5mm bullet connectors for easier fitment planning.
