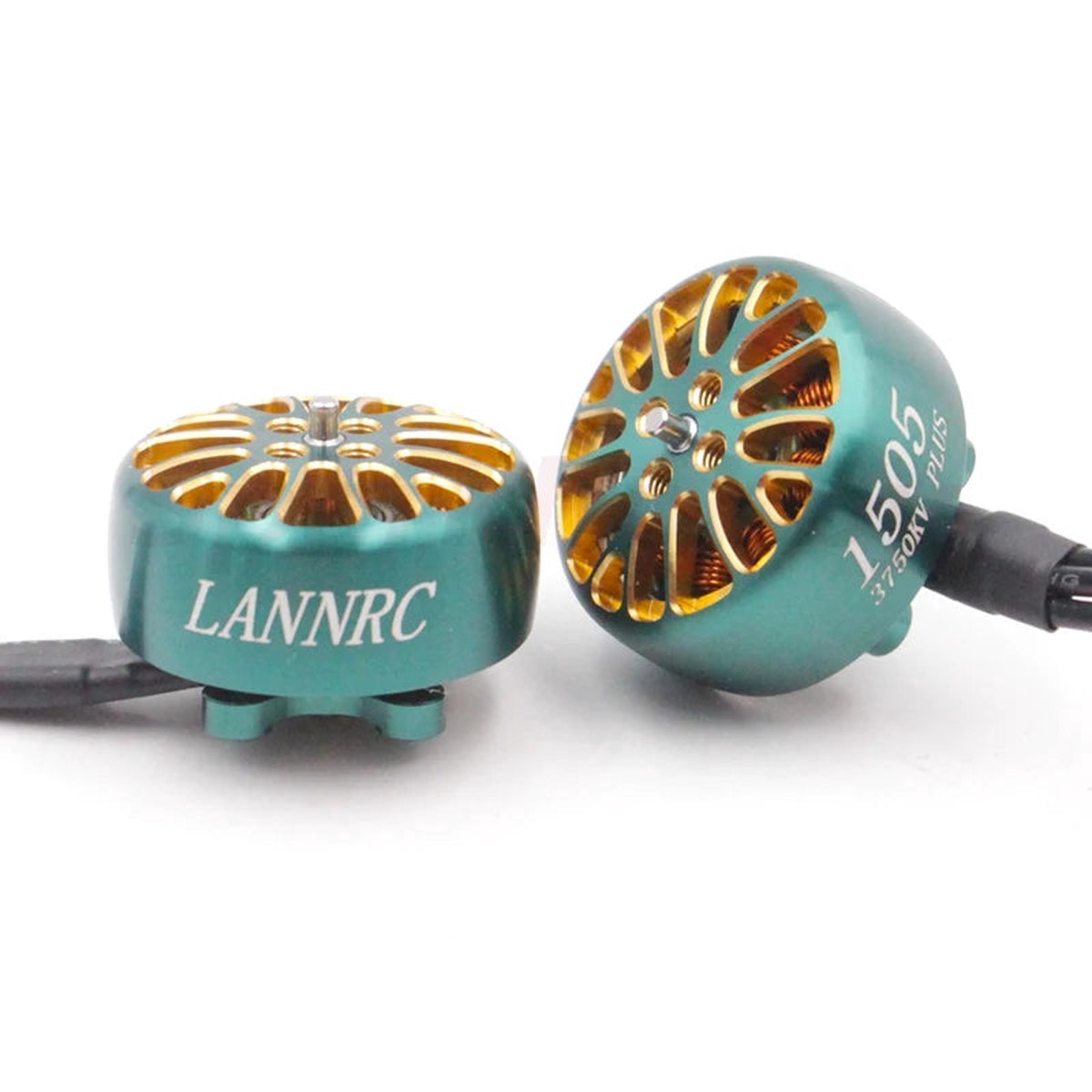

LANNRC 1505 Plus 2650KV / 3750KV 3-6S Brushless Motor 1.5mm Shaft for 2.54 Inch FPV Racing Freestyle Drones

The LANNRC 1505 Plus Brushless Motor is a high-performance, precision-engineered motor designed for 2.54 inch FPV freestyle and racing drones. With options for 2650KV (46S) and 3750KV (34S) setups, this motor provides responsive power delivery, durability, and smooth flight control for demanding pilots.

Key Features:

• KV Options: 2650KV for 46S / 3750KV for 34S

• Configuration: 9N12P

• Shaft Diameter: 1.5mm

• Motor Size: 21.3 15.5mm

• Weight: 14g

• Wire: 22AWG, 150mm length

• Durable Design: Robust construction with optimized cooling and dynamic balance

Technical Specs:

2650KV Version

• Voltage: 46S LiPo

• Idle Current @10V: 0.3A

• Max Continuous Power (60s): 336W

• Max Current (60s): 14A

• Internal Resistance: 173m

3750KV Version

• Voltage: 34S LiPo

• Idle Current @10V: 0.8A

• Max Continuous Power (60s): 200W

• Max Current (60s): 18A

• Internal Resistance: 96m

Package Includes:

• Option 1: 1 1505 2650KV Brushless Motor

• Option 2: 4 1505 2650KV Brushless Motor

• Option 3: 1 1505 3750KV Brushless Motor

• Option 4: 4 1505 3750KV Brushless Motor

Ideal for: 2.5″, 3″, 3.5″, and 4″ FPV drones in freestyle, toothpick, and racing configurations. Choose the KV version to match your battery voltage and prop size for optimal thrust and efficiency.

Lannrc 1505-KV2650 motor offers KV 2650, 9N12P config, 21.3mm diameter, 9.5mm length, and 14g weight. Max power 336W, current 14A, resistance 173m for efficient performance. Specifications and dimensions included.

Lannrc 1505 motor, KV 3750, 9N12P, 21.3mm stator, 14g. Max 200W, 18A. Efficient performance with detailed specs.

Shipping, payment, returns, warranty, and feedback for Lannrc 1505 Motor ensure customer satisfaction with clear guidelines and support.
