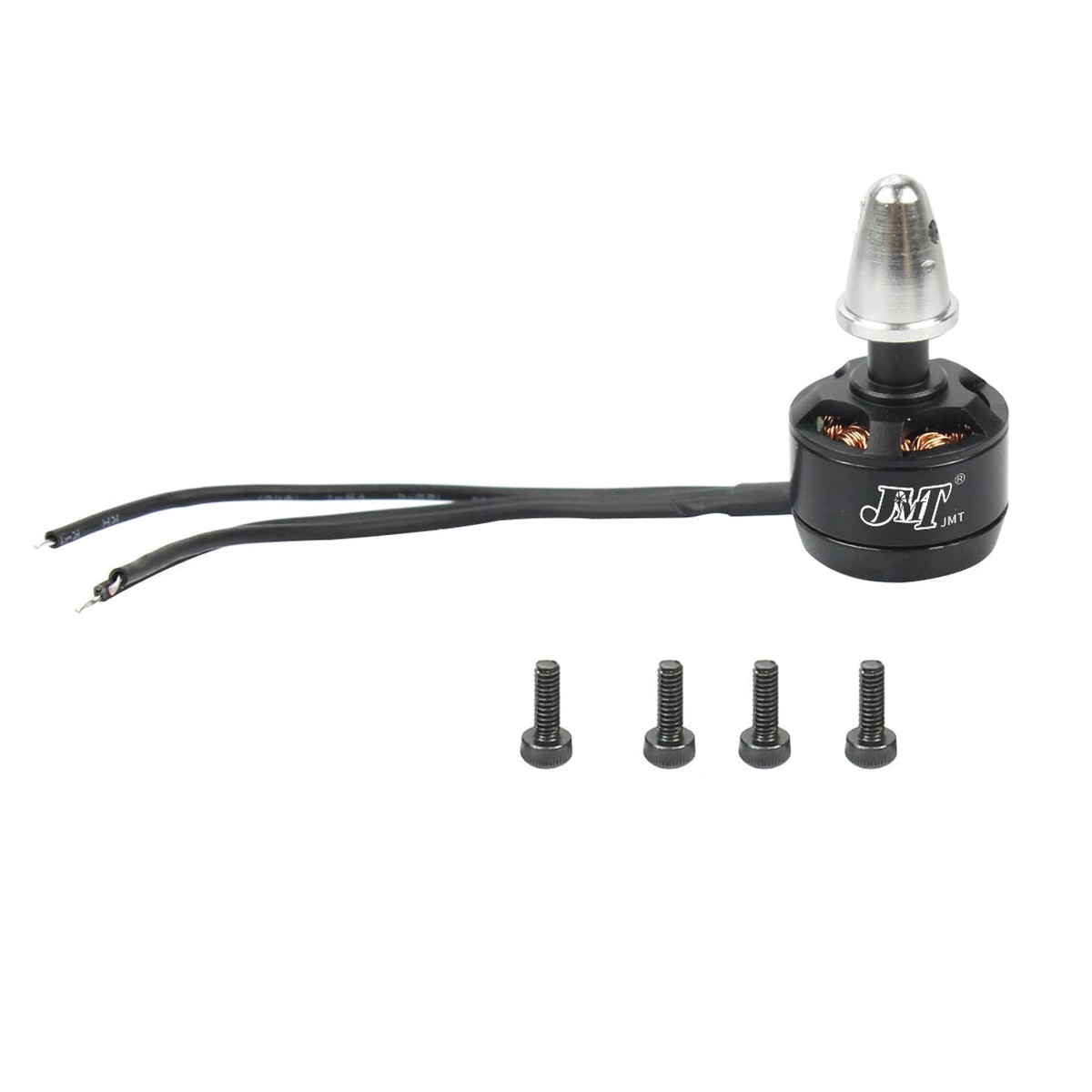

JMT Mini 1306 3100KV 2-3S CW & CCW Brushless Motor for 130-210 RC FPV Quadcopter Drone

The JMT Mini 1306 3100KV Brushless Motor is designed for lightweight and agile FPV quadcopters ranging from 130mm to 210mm frame sizes. With a powerful 3100KV rating and dual rotation support (CW & CCW), this motor delivers smooth, responsive performance for freestyle or racing builds. It features durable construction, compact size, and compatibility with 2S3S LiPo batteries, making it an ideal choice for DIY drone enthusiasts.

Key Specifications:

• Model: 1306 3100KV (CW + CCW)

• KV Rating: 3100KV

• Stator Diameter: 18mm

• Stator Length: 14.1mm

• Shaft Diameter: M4

• Motor Dimensions: 18 15.1mm

• Weight: 13g

• Voltage Compatibility: 2S3S LiPo

• Recommended ESC: OPTO Mini 12A / 16A / 20A

• Max Current: 7.6A

• Max Power Output: 61W

Application:

• Suitable for 130mm210mm FPV racing drones

• Ideal for DIY mini quadcopters and freestyle builds

• Compatible with 23 inch propellers

Package Includes:

• 1 JMT 1306 3100KV Brushless Motor (CW or CCW)

Need both directions? Order 2pcs to receive one CW + one CCW configuration for perfect balance.

JMT 1306 Brushless Motor performance: No load at 7.4V, 0.4A, 23500 rpm. On load with LiPo batteries, power ranges from 9.6W to 104.3W, efficiency 3.4%-7.3%. Load types include Battery/prop configurations.
