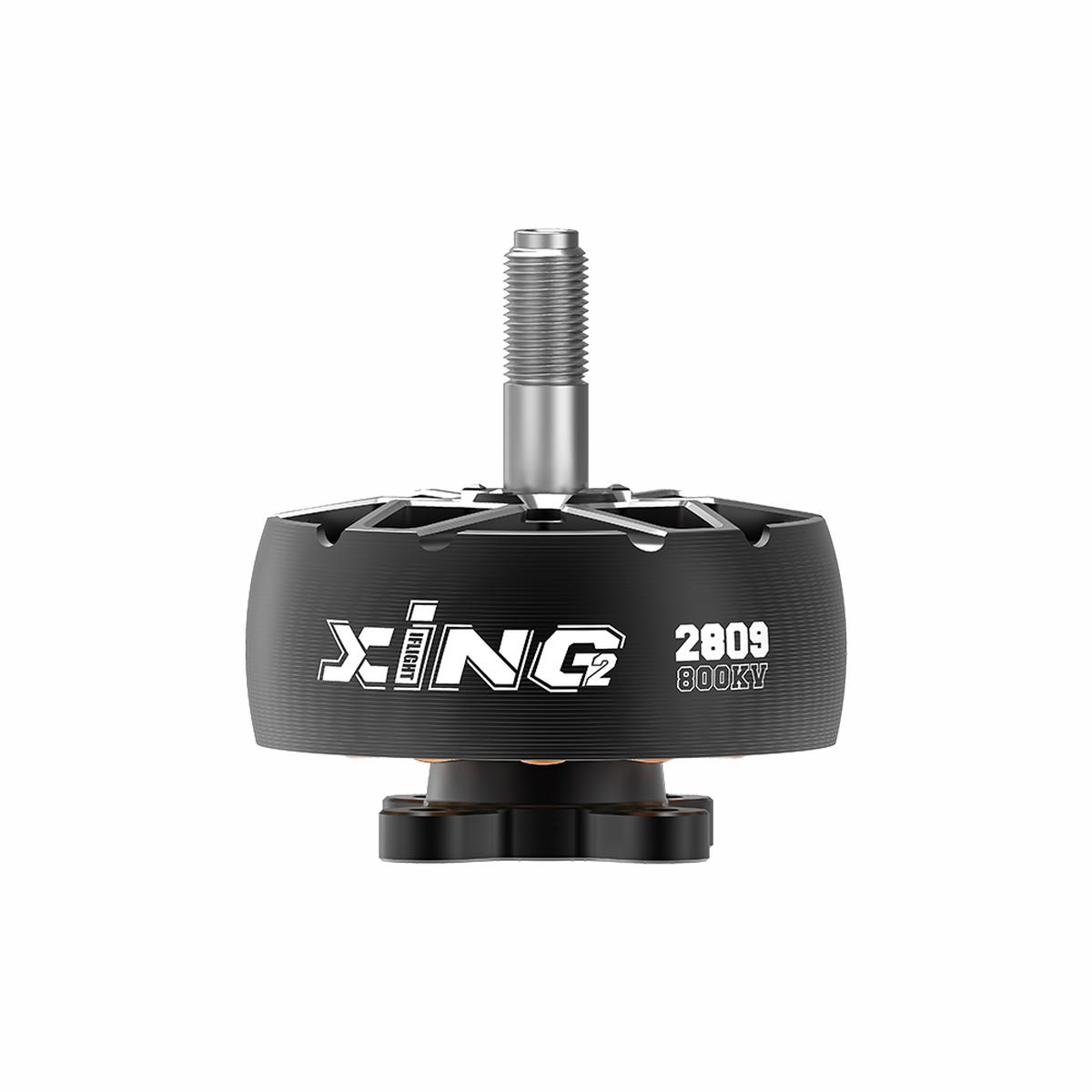

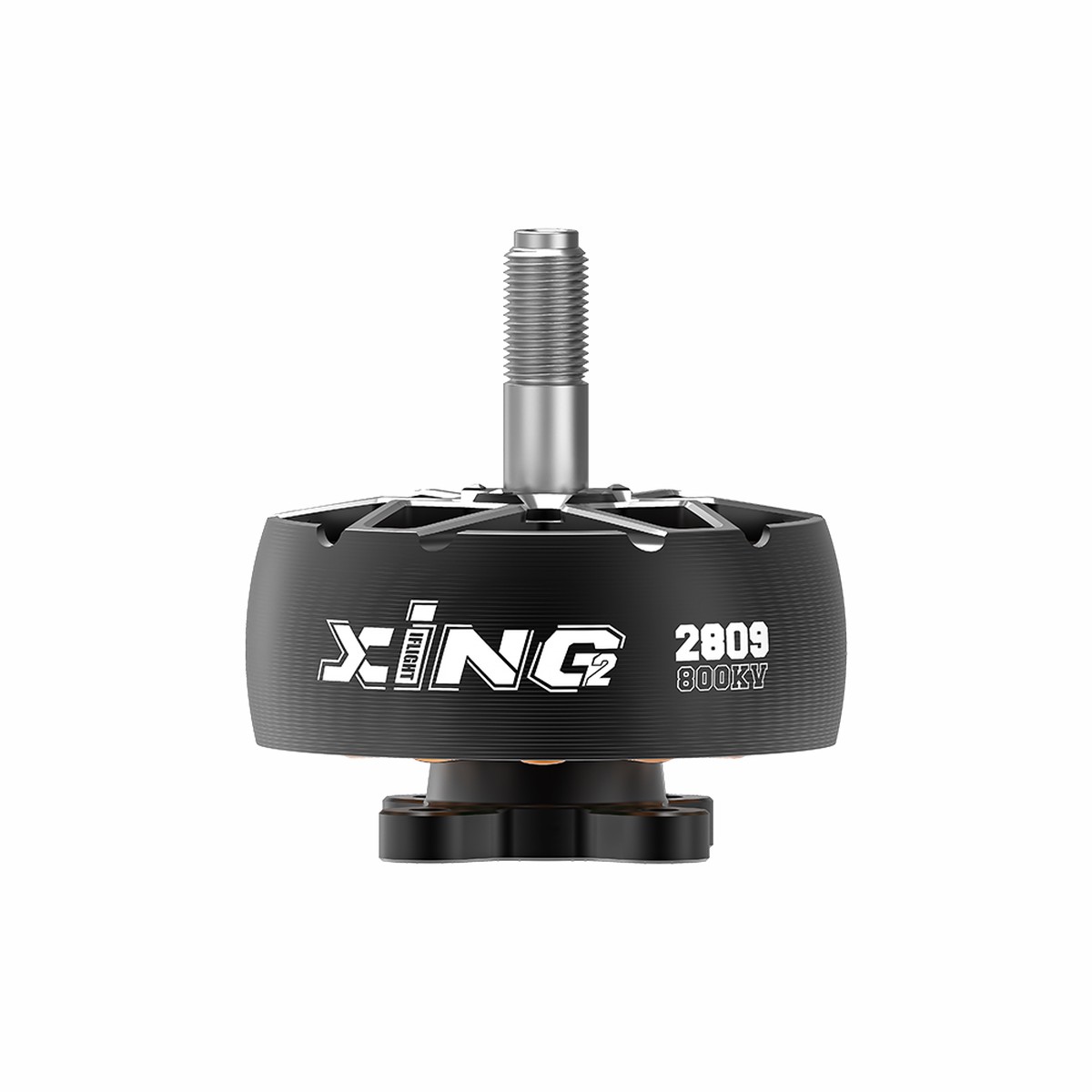

iFlight XING2 2809 Cinelifter Motor 800KV / 1250KV / 1600KV For 6S 7-Inch to 10-Inch FPV Drones, 5mm Shaft

iFlight XING2 2809 Cinelifter Motor 800KV / 1250KV / 1600KV For 6S 7-Inch to 10-Inch FPV Drones, 5mm Shaft

iFlight XING2 2809 Cinelifter Motor 800KV / 1250KV / 1600KV For 6S 7-Inch to 10-Inch FPV Drones, 5mm Shaft

Original price was: $57.00.Current price is: $28.50.
  • SKU:HDPQ2168513
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

The iFlight XING2 2809 Brushless Motor is engineered for Cinelifter builds and large-format FPV drones, offering unmatched torque and thrust for carrying heavy payloads such as full-size GoPros, RED cameras, or Blackmagic rigs. With three KV variants800KV, 1250KV, and 1600KVthis motor delivers powerful, smooth, and efficient performance for 7-inch to 10-inch drones.

Upgraded with center-slotted N52H curved arc magnets, a crash-resistant 7075 aluminum Unibell bell, and NSK 11x5x5 bearings, the XING2 2809 reduces response lag and improves precision in PID control loops. Built for aerial cinematography and power-hungry freestyle, this motor sets the new standard for Cinelifters and long-range heavy-duty drones.

Key Features

  • Ideal for 7″10″ Cinelifter & Heavy-Lift FPV Drones

  • 5mm Titanium Alloy Shaft Ultra-strong and crash-tolerant.

  • Unibell Design with 7075 Aluminum Bell Improved rigidity and impact resistance.

  • Center-slotted N52H Arc Magnets Boost throttle response and torque.

  • NSK 11x5x5 Bearings Smooth, quiet operation with extended life.

  • O-ring Bearing Gap Protection Prevents dust and debris intrusion.

  • 260mm 18AWG Silicone Wires Ideal length for larger frames.

  • Dynamically Balanced Rotor Ensures smooth flight and reduced vibration.

Specifications

Parameter 800KV 1250KV 1600KV
Weight (incl. wire) 61.4g 60.7g 59.9g
Interphase Resistance 127m 65.46m 47m
Input Voltage 6S (24V) 6S (24V) 6S (24V)
Peak Current 25.63A 50A 62.24A
Max Power 610.3W 1145W 1456.4W

General Structure

  • Motor Dimensions: 35.33 21.7mm

  • Shaft Diameter: 5mm

  • Shaft Protruding Length: 15mm

  • Mounting Pattern: 1919mm (M3 screws)

  • Magnet Type: N52H Curved

  • Configuration: 12N14P

  • Lead Wire: 260mm / 18AWG

  • Winding: Single-strand copper

  • Bearing Type: NSK

  • Bearing Spec: 1155mm

  • Rotor Type: Unibell CNC Bell

Recommended Pairings

Compatible Drone Sizes

  • 7-inch, 8-inch, 9-inch, and 10-inch FPV drones

  • Ideal for Cinelifter builds, long-range cruisers, mapping drones, or custom aerial film rigs

Recommended ESCs

  • iFlight BLITZ E80 / F60A 4-in-1 ESC

  • T-Motor F60A / F80A ESC

  • Holybro Tekko32 F60 Pro

Use 60A80A high-current ESCs with BLHeli_32 firmware for stable operation and thermal headroom under payload stress.

Recommended Propellers

  • Gemfan 7037 / 8042 / 9045 / 1045

  • HQProp 8×4.5×3 or 9x5x3

  • Dalprop T7056C

Match the KV variant with the prop size and drone weight800KV for 910″, 1250KV for 78″, and 1600KV for punchy 7″ freestyle setups.

Changelog

  • May 5, 2024: Updated included screws from M38mm to M310mm for better mounting support on thicker arms.

Packing List

  • 1 XING2 2809 Brushless Motor (KV optional)

  • 4 M310mm Mounting Screws

  • 1 M5 Flange Nut

Test Report

XING2 2809 800KV motor specs: 61.4g, 35.33*36.7mm, 127m, 24V, 25.63A peak, 610.3W max, N52H magnet, 12N14P config, NSK bearings, single strand copper winding. Datasheet includes HQ prop performance at various throttle levels.

XING2 2809 1250KV motor specs: 60.7g, 35.33×36.7mm, 24V, 50A peak, 1145W max, N52H magnet, NSK bearings, single-strand copper winding. Includes M3 screws and M5 nut. Performance data for HQ 8*4*3 and GF 7040 props at various throttle levels.
