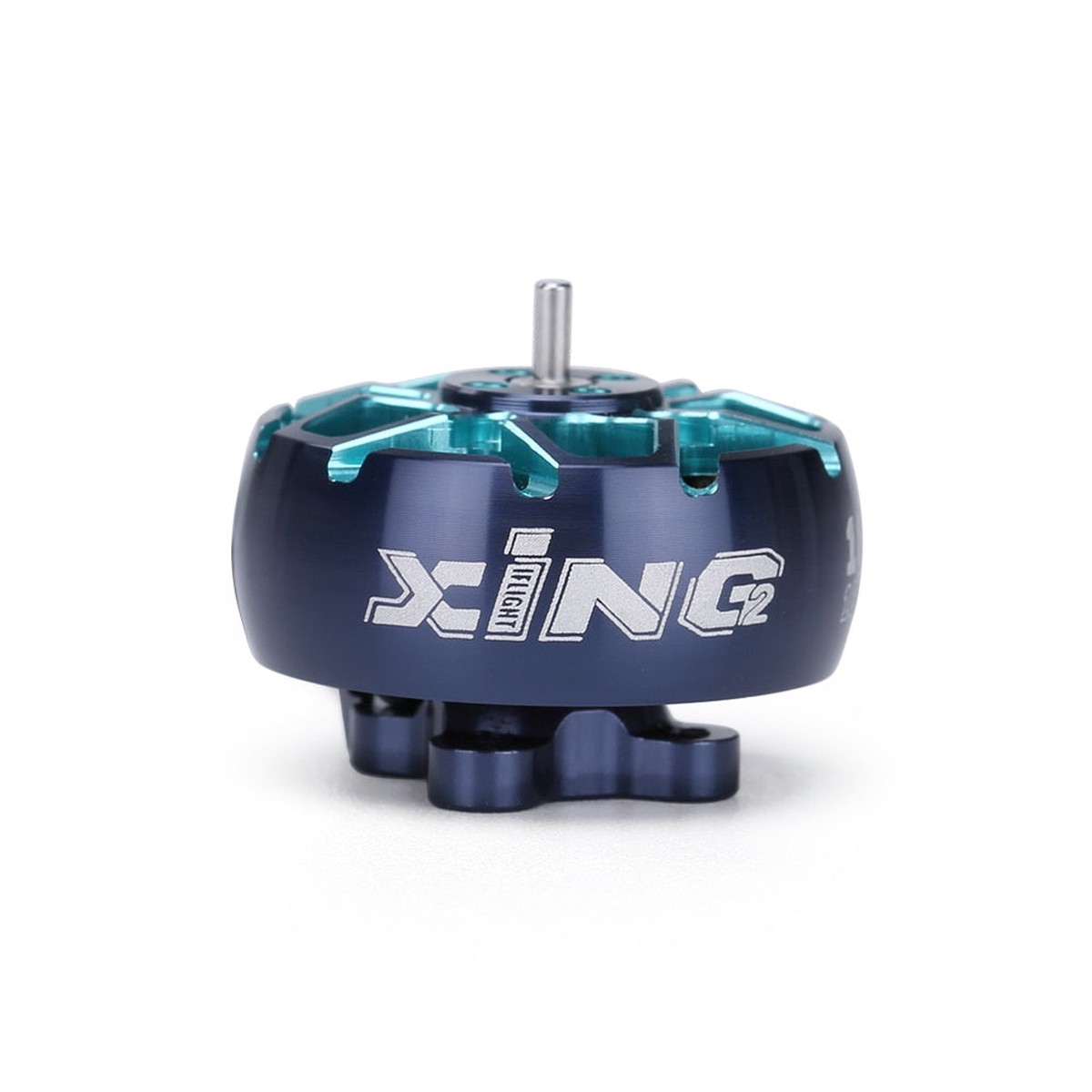

iFlight XING2 1806 1600KV / 2500KV 4-6S FPV Motor with 1.5mm titanium alloy shaft for FPV

iFlight XING2 1806 1600KV / 2500KV 4-6S FPV Motor SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Cutting

Technical parameters: Value 2

Size: 25.2×16.3mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: XING2 1806

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description

• Our XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher quality NSK bearings coupled with a higher grade titanium alloy shaft? We’ve been copied and compared all these years, but now it’s time to set a new standard again!We’re finally ready to announce our predecessor the XING2!
• The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before.New center slotted N52H curved arc magnetswere introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to it’s translation delay of it braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!
• Due to the high quality materials used and the durable joint of bell and shaft, we were able toreduce the magnet air gap and stator laminationto a minimum.The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causingmore efficiency and higher power!
• Early 2018 we started to put o-rings on the top of our bearings between motor bell and stator. This acts as an absorber if your bell or shaft has gone through crashing and keeps the bearing gap tight to reduce all those vibrations induced by high rpms! It can also reduce the axial impact force just enough to keep your bearings smooth and quiet. All our experience, high quality 7075 bells, O-ring bearing protection and all the other features you’ve just seen on your original XING series are still inbuilt in a new shape and design!

Features:

• 1.5mm outer titanium alloy shaft
• Japanese NSK7*3*3mm bearings
• N52H curved magnets
• Motor wires protected
• Dynamically balanced

Specification

• Model:XING2 1806
• KV: 1600KV / 2500KV (select)
• Input Voltage: 4S/6S Lipo
• Configuration: 12N14P
• Stator Diameter: 18mm
• Stator Length: 6mm
• Weight: 19.3g with short wire
• Wire length:24AWG 160mm
• Bottom Mounting pattern: 12*12mm2mm
• Top Mounting pattern: 6*6mm2mm

Package includes:

• 1x XING2 1806 Brushless Motor 1.5mm Shaft (KV is optional)
• 6x M2*7mm screws

NOTE: propeller does not include.

iFight XING2 1806 1600KV Technical Datas KV 7600KV Configu-ration 12NI4P Stator Diamter 18mm Stator Length 6mm Shaft Diameter 3mm Motor 025.2*16.3mm Dimension(Dia:#Le Weightlg) 1939 Idle 0.43 NGz 18006 current(1O)@1OV(A No_of Cells (Lipo) 465 Max Continuous 331.85W Power

iFlight XING2 1806 Motor Specifications:- KV: 1600KV / 2500KV- Configuration: 4-6S- Shaft material: 1.5mm titanium alloy- Technical Data:+ Voltage: 21.03V (min) to 25.06V (max)+ Current: 687.0A (min) to 747.0A (max), and 807.0A (max) at 100% load+ Power output: 328.13W (min) to 385.55W (max) at 100% load+ Stator diameter: 18mm+ Stator length: 6mm+ Suitable for: Airplane, Helicopter, VTOL
