SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 28.5×19.7mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: XING-E Pro 2207

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: IFLIGHT

Description

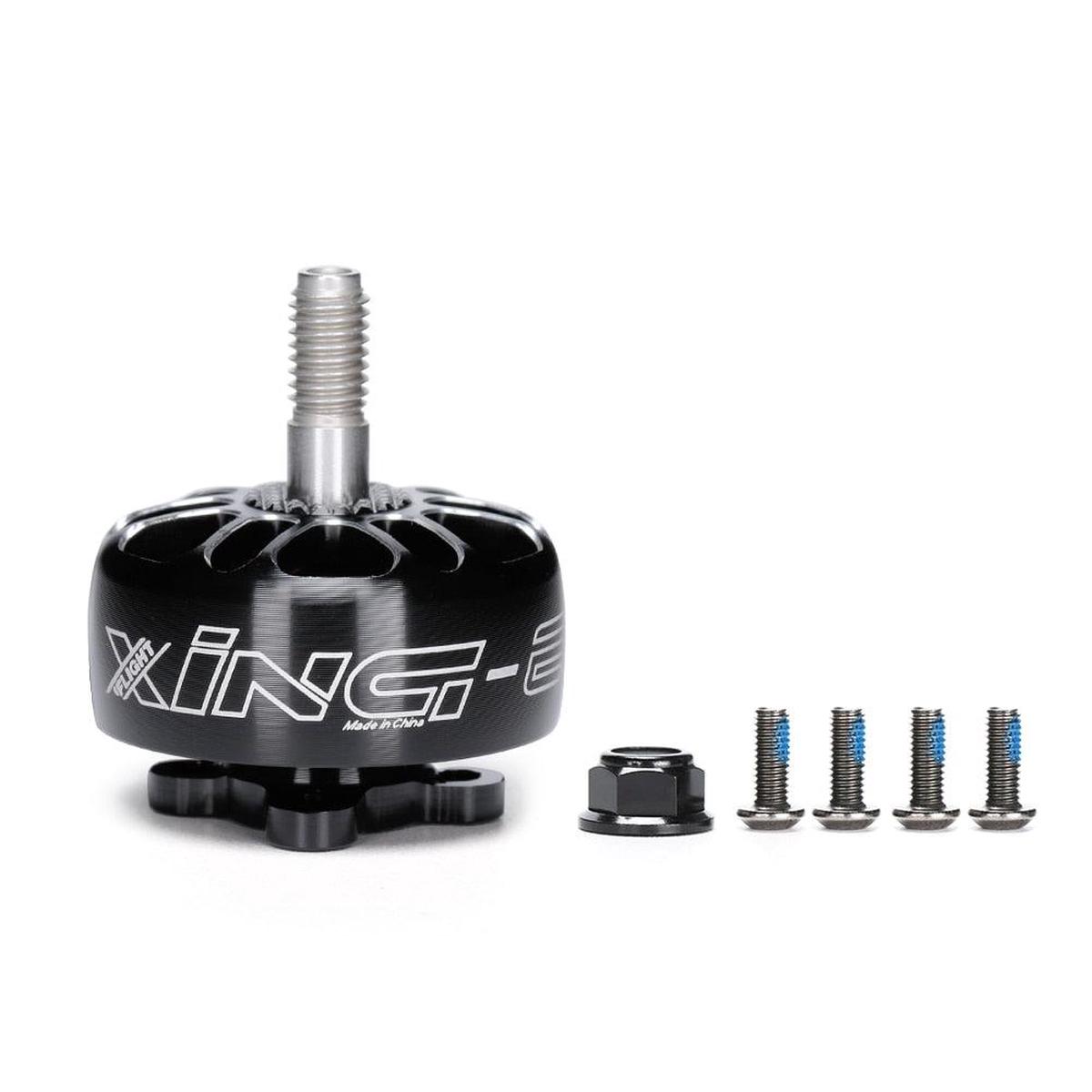

• XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.focuses on quality, the XING-E series affordable motors that are strong and durable.

• This 2207 sized drone motors features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.

Features

• High-strength 5mm Steel shaft

• N52H High-temperature magnets, NSK bearings

• 16x16mm hole pattern

• Single strand copper winding

• Hex bolt shaft set screw

Specifications

• Configuration:12N14P

• Stator Diameter:22mm

• Magnets: N52SH Curved

• Bearing Size: 9x4x4

• Shaft Diameter: 5mm / Steel

• Base Mounting Pattern: 16x16mm M3 Thread

• Motor Dimension: 28.5×19.7mm

• Weight: 33.8g (150mm wires)

• Idle Current @12.6v (Io):1.2 A

• Cells (LiPo): 2-6S

• Max Burst Current <10s: 35.22A

• Max Power (W) 60s: 845W

• Internal Resistance (Rm):81.5m

• Motor Wire Length:150mm / 20AWG

Package included:

• 1pcx MOTOR XING-E Pro 2207motor

or

• 4pcs x MOTOR XING-E Pro 2207motor

iFlight XING-E Pro X2207 2750KV Technical Datas 2750 Configu-ration 12N14P Stator Diamter 22mm Stator Length Zmm Shaft Diameter 4mm Motor_Dimension(Dia :Len) p28.5*19.7mm Weight(g) 33.8 Idle_current(l0@1QV(A) Noof Cells(Lipo) 2-4S Pre63 =11 Max

The iFlight XING- E X2207 1800KV motor features technical specifications including a Kv value of 2448, an RPM range of 1481 to 1094, and a current consumption of 355mA at 53C. It also has a voltage rating of 5050V, a temperature range of -20C to 47C, and dimensions of 5.1mm x 3mm x 3mm.
