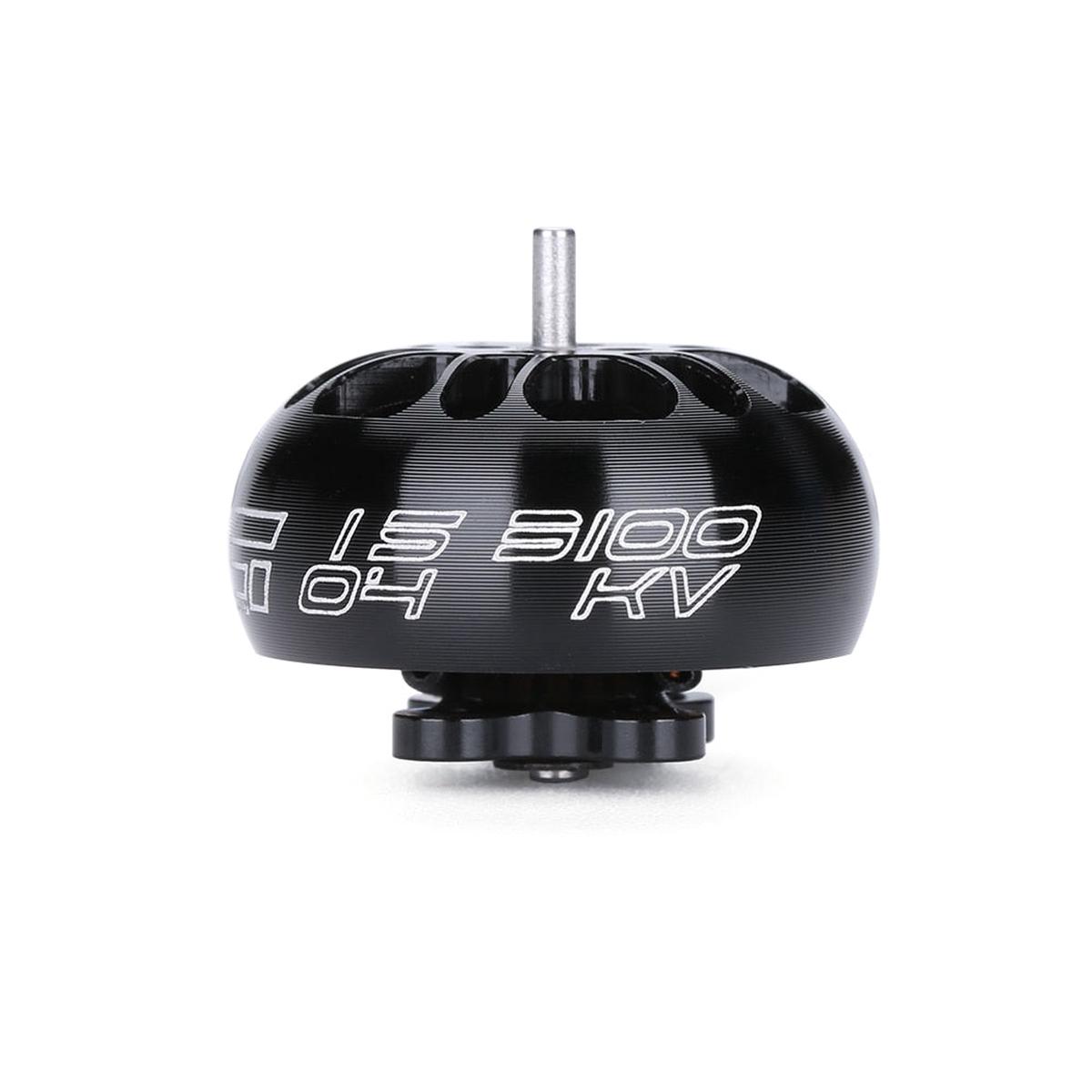

iFlight XING 1504 3100KV 3-6S FPV motor with 1.5mm shaft for FPV drone part

iFlight XING 1504 3100KV 3-6S FPV Drone Motor SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 21.6*13.45mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: XING 1504

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Specifications

• Model: XING 1504 Black Motor
• KV: 3100KV
• Weight(included wire): 12.3g
• Dimension: 21.6*13.45mm
• Interphase Resistance: 0.247
• Input Volts: 3~6 S
• Peak Current: 12.44A
• Max Watt: 207W
• Mounting Holes: 9*9 2mm
• Rotor Specifications: Unibell
• Shaft Diameter: 1.5mm
• Shaft Protruding Length: 4.0mm
• Configuration: 12N14P
• Bearing Type: NSK
• Bearing Specification: 5*2*2.5
• Winding: Single Strand copper winding


Package included:

• 1 x XING 1504 3100KV Motor Black

XING 1504 3100KV KV 3100kv Weight (included wire) 12.3g Dimension: 021.6*13.45mm Interphase resistance: 0.24702 Input Volts: 36S Peak Current: 12.44A Max Watt: 207w Mounting Holes: 9*9-@2mm Rotor specifications: Unibell Shaft Diameter: 1.5mm Shaft Protruding Length: 4.0mm Lead: 160mm/26AWG Magnet:
