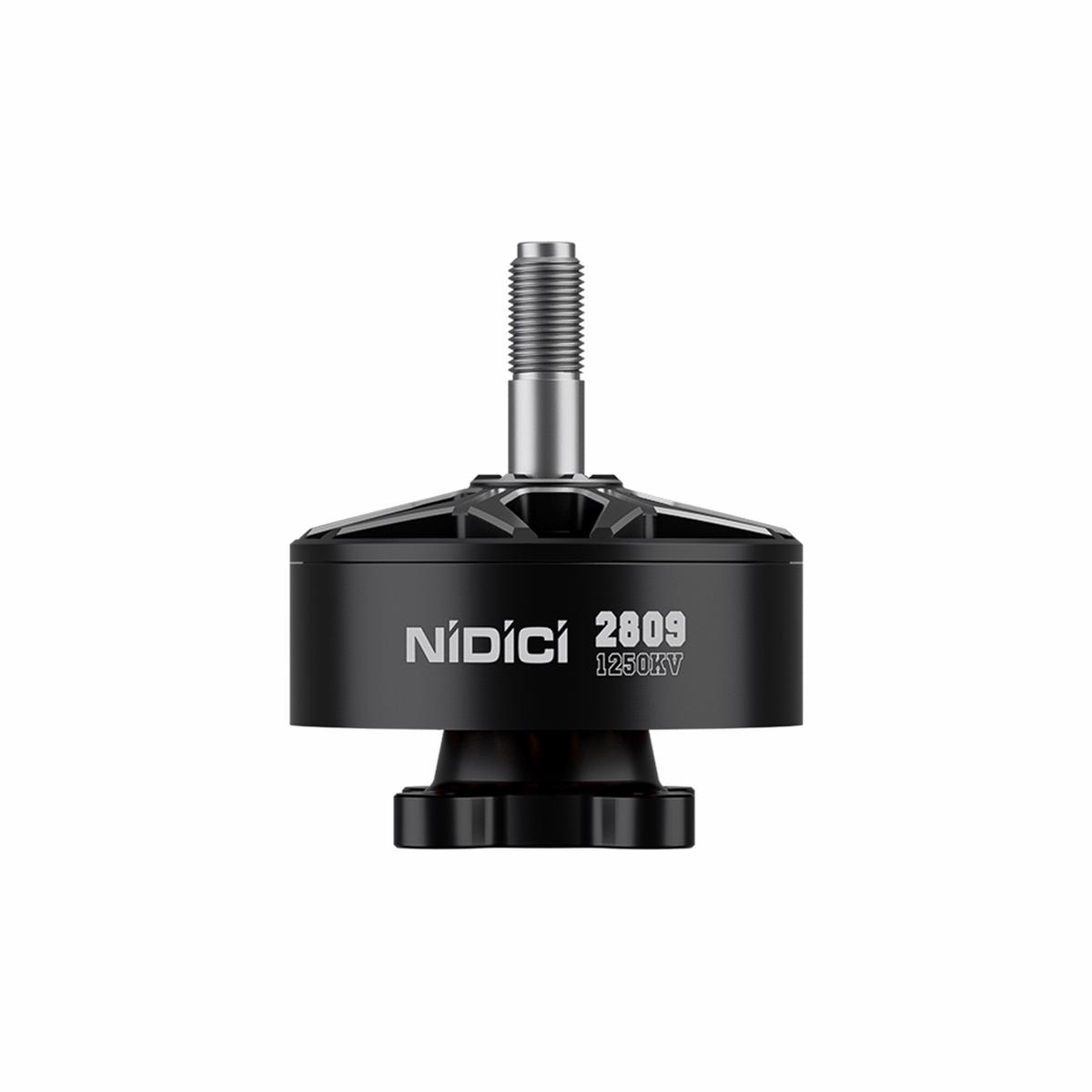

Name: iFlight NIDICI 2809 1250KV Brushless Motor for 6S 78 Inch FPV Freestyle &amp; Long-Range Drones
SKU: THQ8012109548
Availability: InStock

Description
Reviews (0)

Overview

The iFlight NIDICI 2809 1250KV Brushless Motor is a cost-effective and performance-driven choice for 78 inch FPV freestyle and long-range drones. Built with N52H curved magnets, a segmented bell design, and single-strand copper winding, it delivers up to 1147.1W of thrust power while maintaining excellent efficiency. Designed for 6S LiPo setups (24V), this motor is perfect for heavy-duty flights requiring smooth response and high endurance.

Key Features

KV Rating: 1250KV
Voltage: Supports 6S (24V) LiPo battery
Max Power: 1147.1W
Peak Current: 49.23A
Weight: 60.4g (including wires)
Mounting Holes: 1919mm 3mm
Shaft Diameter / Length: 5mm / 15.15mm
Structure: Segmented bell with N52H curved magnets
Best Use: 78 inch FPV freestyle & long-range drones

Specifications

Parameter	Value
Model	NIDICI 2809 Motor
KV	1250KV
Input Voltage	24V (6S)
Max Current	49.23A
Max Wattage	1147.1W
Interphase Resistance	65m
Dimensions	33.55 24.15mm
Shaft	5mm 15.15mm
Configuration	12N14P
Magnet Type	N52H Curved
Bearings	1155mm
Lead Wires	260mm / 18AWG
Winding	Single strand copper
Rotor	Segmented bell

Performance Datasheet

Prop Type	Throttle (%)	Voltage (V)	Load Current (A)	Thrust (g)	Power (W)	Efficiency (g/W)
HQ 843	50%	24.05	6.01	826	144.5	5.71
	60%	24.03	10.08	1098	242.2	4.53
	70%	23.98	16.53	1508	396.4	3.80
	80%	23.86	22.91	1812	546.6	3.31
	90%	23.79	31.49	2169	749.1	2.90
	100%	23.62	34.59	2298	817.0	2.81
HQ 943	50%	24.97	11.85	1483	295.9	5.01
	60%	23.81	17.21	1651	409.8	4.04
	70%	23.69	23.28	1958	551.5	3.55
	80%	23.52	27.79	2116	653.6	3.24
	90%	23.39	36.19	2535	848.5	2.99
	100%	23.21	43.86	2951	1018.0	2.90

Packing List

1 iFlight NIDICI 2809 1250KV Brushless Motor
4 M310mm Screws
1 M5 Flange Nut

Datasheet

NIDICI 2812 900KV motor: 60.4g, 33.55×42.8mm, 24V, 43.86A peak, 1018W max power. Comes with M3 screws, M5 nut. Datasheet shows HQ prop performance at different throttles.
