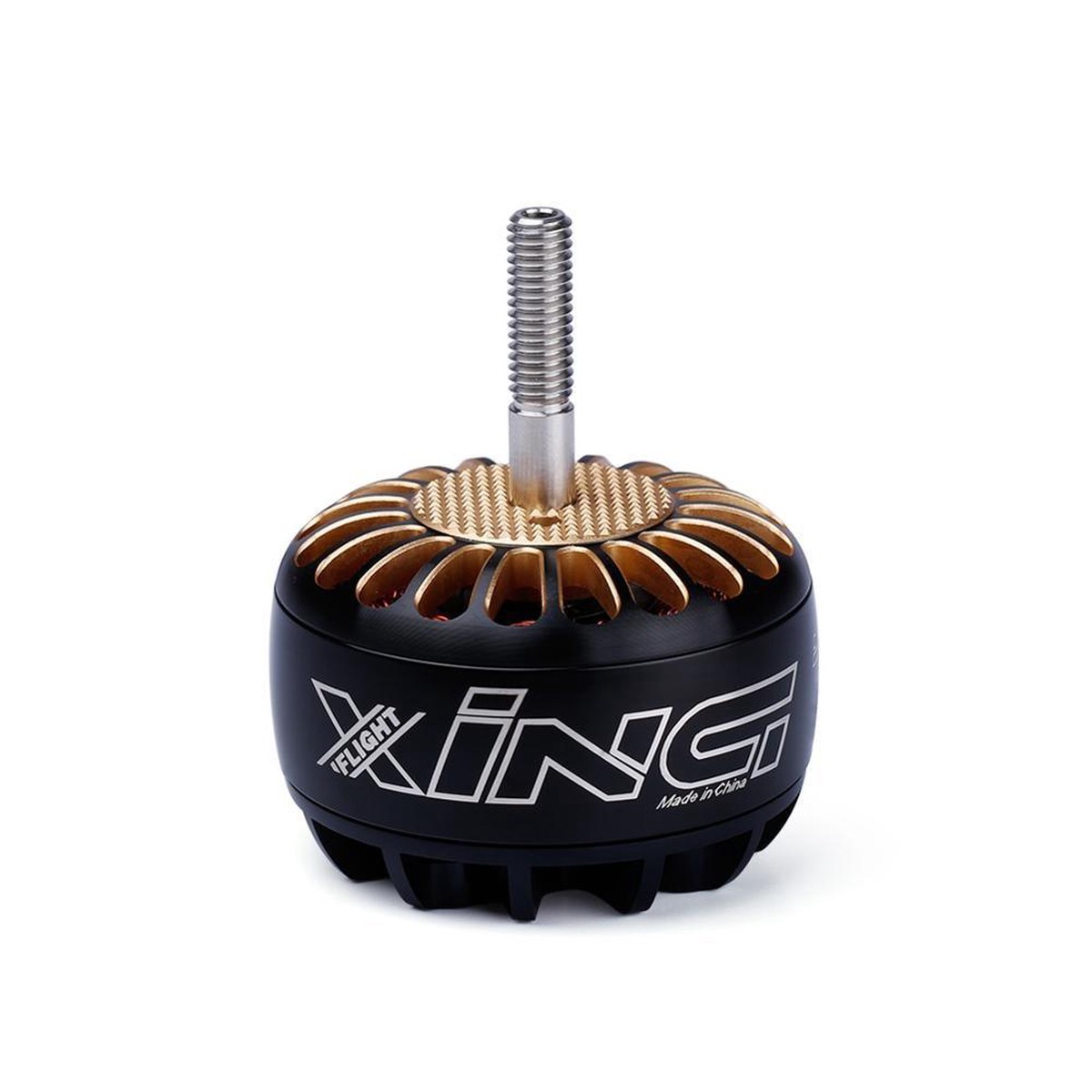

iFlight drone brushless motor XING X4214 4214 SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 50x33mm

Remote Control Peripherals/Devices: Motor

Recommend Age: 14+y,12+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: 4214

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: uuustore

Descriptions:

• The iFlightXING T4214 motor is designed to provide responsive power with a low KV. It is perfect for 6S 15″ X-Class racing drone like iX15! Named after and inspired by theXING series motor, matching its smooth and aggressive flying style, this motor comes with a solid stator & Pacific copper wires in combination with N45SH magnets & very small air gap. EZO bearings provide a silky smooth flight. All these results in unbelievable flight performance and experience!
• Anti-slip aluminum bell, 420 stainless steel 26.5mm (outer length) 6mm shaft & M6 hex nut enables most propellers on market easy to install and remove on T4214. Pre-tinned 800mm wires and 4mm threaded holes in 30*30mm pattern on the back plate apply to most X-Class frames on market. The hollowed-out lightweight base increases cooling and efficiency.
• All in all, the new iFlightXING T4214 is definitely the first choice for X-Class racing!

Features:

• Specially designed for X-Class Racing
• Oxidation-Color 7075 T6 milled aluminum Bell and Base
• 420 stainless steel
• Japanese Kawasaki 1200 Iron Core
• Solid Pacific 220 Heat-Resistant Copper Wire & Winding
• Long life Japanese EZO bearings
• N45SH High-temperature tegular magnets, small air gap
• Electromagnetically matched magnets and stator
• Optimized heat dissipation structure design, 20% heat reduced
• Max 7.9kg thrust of 660kv
• 50%-90% thrust max efficiency and thrust
• Single piece 6mm shaft runs throughout motor to prevent bell warping in hard hits
• Hex bolt shaft set screw for easy maintenance
• Dynamically balanced
• Motor wire protected

Specifications:

• Name: iFlight XING T4214
• KV: 400KV/660KV
• Structure: 12N14P
• Stator diameter: 42mm
• Stator length: 14mm
• Outer Shaft length and diameter: 26.5mm M6
• Motor size: 50*33mm
• Magnet: N45SH
• Bearing: EZO
• Cable: 14AWG,800mm
• Weight: 270.1g w/ cables

Package Included:

• Xing T4214 X-Class Racing Motor *1pc/2pcs/4pcs
• Screws & nut * 1set/2sets/4sets

iFlight XING 4214 40OKV Technical Datas 400 Configuration_ 12N14P Stator Diamter 42mm Stator_Length _ 14mm Shaft Diameter 6mm Motor_Dimension(Dia :Len) p50+33mm Weightlg) 213 Idle_current(lQJ@1QV(A)_ 1.26 Noof Cells(Lipo) 3-8S 42 Max Continuous 741.6 Power(W)

The iFlight XING 4214 motor has a technical data sheet for its 660KV configuration. The specifications include: stator diameter, 42mm; stator length, 14mm; shaft diameter, 6mm; motor dimension (diameter and length), 50+33mm; weight, 213g; idle current at 1V (A), 2.5; number of cells (Lipo), 3-6S; efficiency rating, 43% @ 9Ee; maximum continuous power, 235W @ 180.
