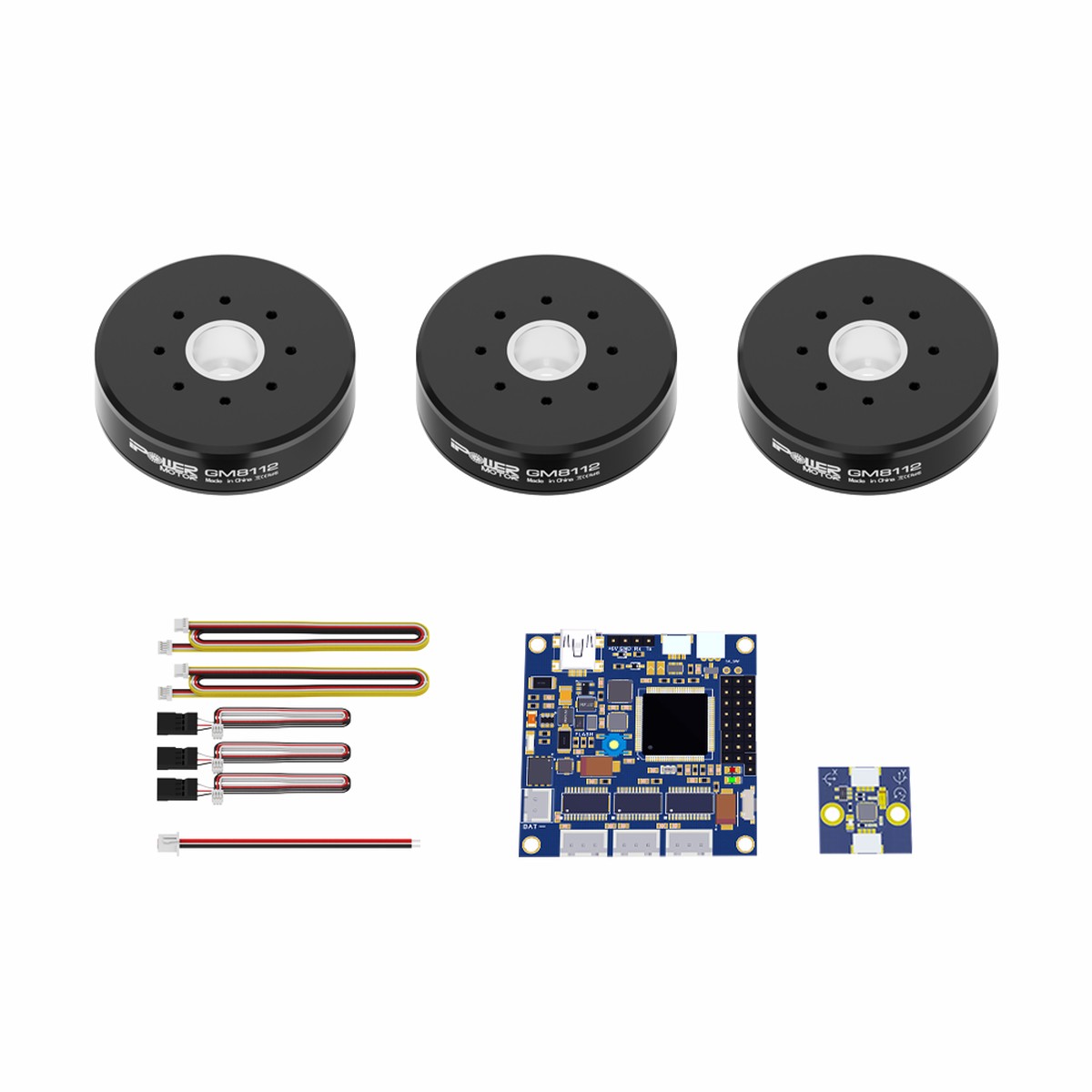

Name: iFlight GM8112-80T Combo Set 3 GM8112 Gimbal Motors + Alexmos 32BIT BGC 3-Axis Controller
SKU: WKA86610369720
Availability: InStock

Description
Reviews (0)

Overview

The iFlight GM8112-80T Combo Set combines GM8112 brushless gimbal motors with an Alexmos 32BIT BGC controller set for building high-quality 3-axis camera stabilizing systems for UAV mounting and handheld stabilizers. The controller is positioned as a newer direction in stabilizing solutions, intended to replace the previous 8-bit SimpleBGC controller while keeping 100% back-compatibility and adding new functionality.

For setup and compatibility questions (camera payload, wiring, power, or tuning), contact [email protected] or visit https://rcdrone.top/.

Key Features

Designed for 3-axis brushless direct-drive gimbal stabilization systems (UAV-mounted or handheld).
Controller: intended as a replacement for the previous 8-bit SimpleBGC controller with 100% back-compatibility.
GM8112 brushless gimbal motors specified for large cameras (stated torque: 6 kg/cm; load torque: 60009000 g).
Controller board size and mounting pattern specified for integration.

Specifications

Alexmos 32BIT BGC Controller (set without aluminum case)

Parameter	Specification
Board size	50 x 50 mm
Mounting hole distance	45 mm
Mounting hole diameter	3 mm
Power supply voltage	3S to 6S
Maximum motor current	1.5 A
5V output current (external devices)	Up to 1 A

GM8112 Brushless Gimbal Motor

Parameter	Specification
Model	GM8112
Motor outer diameter	89.5 0.05 mm
Configuration	36N/42P
Motor height	26 0.2 mm (included with encoder housing)
Hollow shaft OD	25 -0.008/-0.012 mm
Hollow shaft ID	22 +0.05/+0.1 mm
Wire length	610 3 mm
Cable AWG	#24
Motor weight	428 1 g
Wire plug	2.5 mm dupont connector
No-load current	0.3 0.1 A
No-load volts	22 V
No-load RPM	380420 RPM
Load current	2 A
Load volts	20 V
Load torque (g)	60009000
Motor internal resistance	4.2 ohm 5% (resistance varies with temperature)
High voltage test	DC 500 V, 1 mA @ 2 sec
Rotor housing runout	0.1 mm
Steering (axle extension)	Clockwise
High temperature test	Keep at 60 C for 100 hours; motor can work normally after 24 hours at room temperature
Low temperature test	Keep at -20 C for 100 hours; motor can work normally after 24 hours at room temperature
Maximum power	80 W
Working current	3-5S
Working temperature	-20 to 60 C; 1090% RH

Whats Included

3 x GM8112 gimbal motor
1 x Alexmos 32BIT BGC set (without aluminum case)
1 x connecting cables set

Applications

3-axis camera stabilizing systems for UAV mounting
Handheld brushless gimbal stabilizers
Stabilization builds for larger camera payloads (as specified by GM8112 torque/load data)
