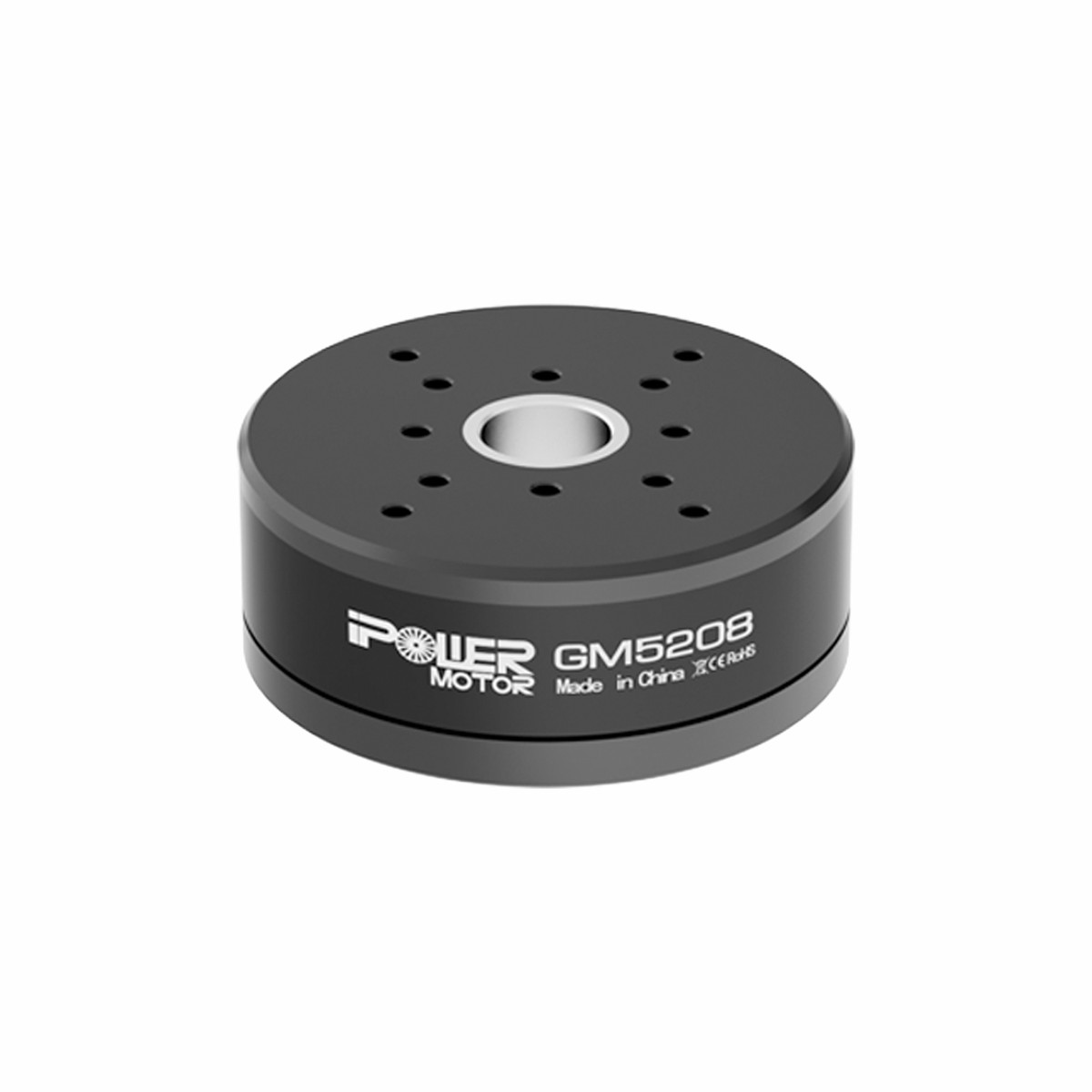

Name: iFlight GM5208-24 Brushless Gimbal Motor (GM52 Series) 24N/22P, 3-5S, 59.5mm OD, 204g
SKU: ELAC22173211107
Availability: InStock

Description
Reviews (0)

Overview

The iFlight GM5208-24 is a brushless direct-drive gimbal motor (GM52 series) designed for camera stabilization setups, including DSLR-sized cameras such as CANON 5D MARKII / MARKIII, and for large-scale multi-rotor platforms lifting Red Epic & DSLR sized gear. The stabilization principle uses BLDC direct-drive motors, similar in concept to gimbals based on hobby servos.

Key Features

Brushless direct-drive gimbal motor design for camera stabilization
24N/22P configuration
Hollow shaft design (specified OD/ID tolerances)
2.5 mm Dupont connector, #24 AWG cable, 610 3 mm wire length
Specified no-load and load performance at 20 V, plus environmental and electrical test ratings

Specifications

Model	GM5208-24
Motor outer diameter	Dia. 59.5 0.05 mm
Configuration	24N/22P
Motor height	31.2 0.2 mm
Hollow shaft (OD)	Dia. 15 -0.008/-0.012 mm
Hollow shaft (ID)	Dia. 12.6 +0.05/0 mm
Wire length	610 3 mm
Cable AWG	#24
Motor weight	204 0.5 g
Wire plug	2.5 mm Dupont connector
No-load current	0.09 0.1 A
No-load volts	20 V
No-load RPM	396~436 RPM
Load current	1 A
Load volts	20 V
Load torque	1800-2500 gcm
Motor internal resistance	13.7 ohm 5% (resistance varies with temperature)
High voltage test	DC500V 10 mA @ 1 sec
Rotor housing runout	<= 0.1 mm
Steering (axle extension)	Clockwise
High temperature test	Keep at 60 C for 100 hours; motor can work normally after 24 hours at room temperature
Low temperature test	Keep at -20 C for 100 hours; motor can work normally after 24 hours at room temperature
Maximum power	<= 40 W
Working voltage	3-5S
Working temperature / humidity	-20~60 C; 10~90% RH

Whats Included

1 x GM5208-24 gimbal motor
1 x Screw bag

Applications

Brushless gimbal stabilization for DSLR-sized cameras (including CANON 5D MARKII / MARKIII)
Large-scale multi-rotor platforms lifting Red Epic & DSLR sized gear
