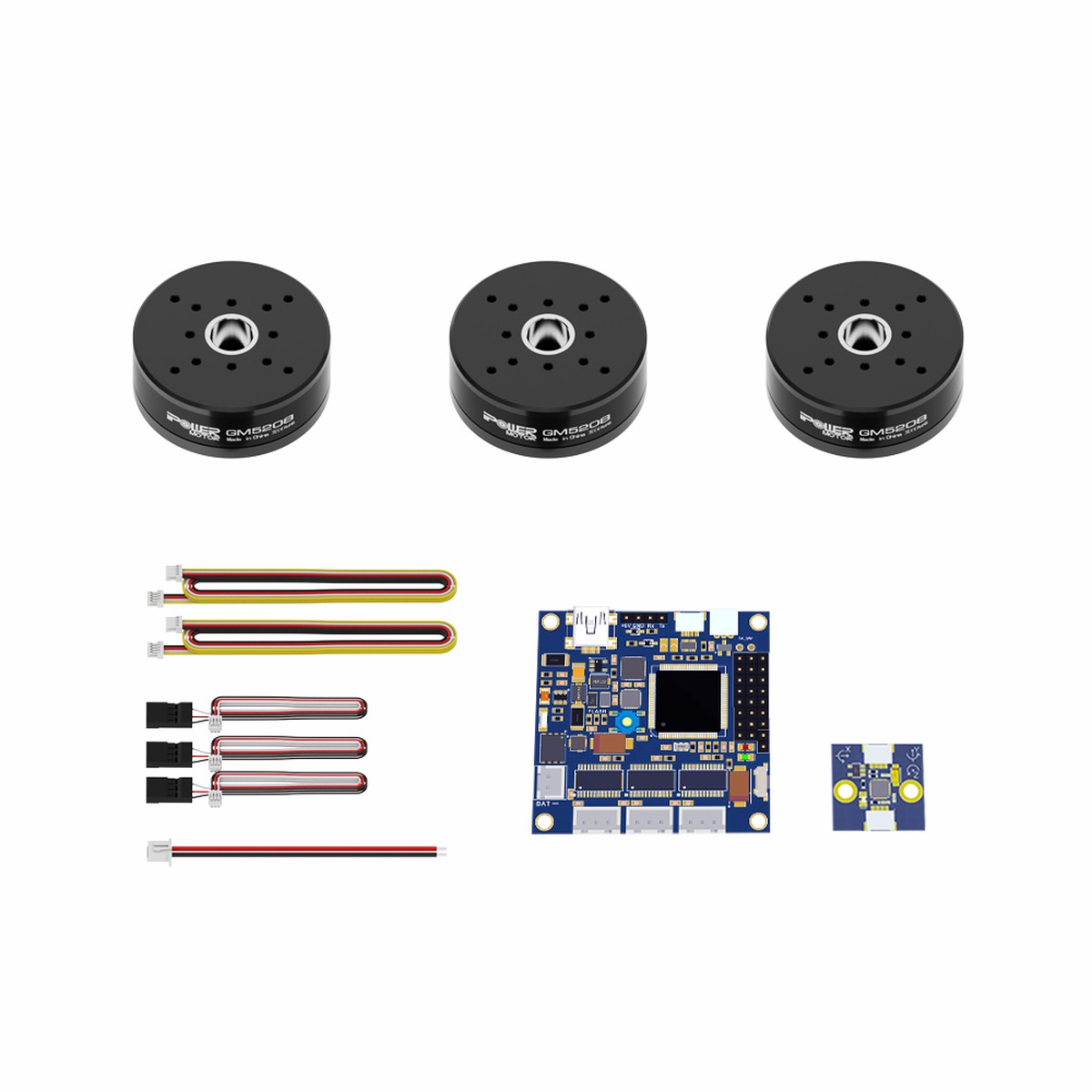

Name: iFlight GM5208-12 Combo Set - 3x Brushless Gimbal Motors + Alexmos 32BIT BGC Controller + Cables
SKU: ELAC22173211100
Availability: InStock

Description
Reviews (0)

Overview

The iFlight GM5208-12 Combo Set is intended for building high-quality 3-axis camera stabilizing systems that can be mounted to UAV platforms and for building handheld camera stabilizers. This controller version is positioned as a new direction in stabilizing solutions, intended to replace a previous 8-bit SimpleBGC controller while keeping 100% back-compatibility and adding new functionality.

The set is based around the GM52 series brushless direct-drive gimbal motors (GM5208-12), described for use with DSLR cameras (including CANON 5D MARKII / MARKIII) and DSLR-sized gear, and is also referenced for large-scale multi-rotor platforms lifting Red Epic & DSLR sized payloads (listed torque reference: 4KG/cm).

Key Features

Combo set for 3-axis brushless gimbal builds: 3x GM5208-12 motors plus a 32-bit BGC set and connection cables
Brushless direct-drive stabilization principle (BLDC motor based)
Controller described as backward compatible with a previous 8-bit SimpleBGC controller
Hollow-shaft motor design (OD/ID listed in Specifications)

For pre-sales compatibility questions or after-sales support, contact support@ or visit https:///.

Specifications

GM5208 Motor Specifications

Parameter	Value
Model	GM5208
Motor outer diameter	63 0.05 mm
Configuration	12N/14P
Motor height	22.7 0.2 mm
Hollow shaft (OD)	15 -0.008/-0.012 mm
Hollow shaft (ID)	12 +0.05/0 mm
Wire length	610 3 mm
Cable AWG	#24
Motor weight	195 0.5 g
Wire plug	2.5 mm Dupont connector
No-load current	0.09 0.1 A
No-load voltage	20 V
No-load RPM	456~504 RPM
Load current	1 A
Load voltage	20 V
Load torque (g)	1800-2500
Motor internal resistance	15.2 ohm 5% (resistance varies with temperature)
High voltage test	DC500V 10 mA @ 1 sec
Rotor housing runout	0.1 mm
Steering (axle extension)	Clockwise
Maximum power	40 W
Working voltage	3-5S
Working temperature	-20~60 C; 10~90% RH
High-low temperature test (high)	Keep at 60 C for 100 hours; motor can work normally after 24 hours at room temperature
High-low temperature test (low)	Keep at -20 C for 100 hours; motor can work normally after 24 hours at room temperature

What 1s Included

3 x GM5208-12 Gimbal Motor
1 x Alexmos 32BIT BGC set (without aluminum case)
1 x Connecting cables set

Applications

3-axis brushless gimbal builds for UAV-mounted camera stabilizers
Handheld camera stabilizers
Stabilization setups referenced for DSLR cameras (including CANON 5D MARKII / MARKIII) and DSLR-sized payloads
