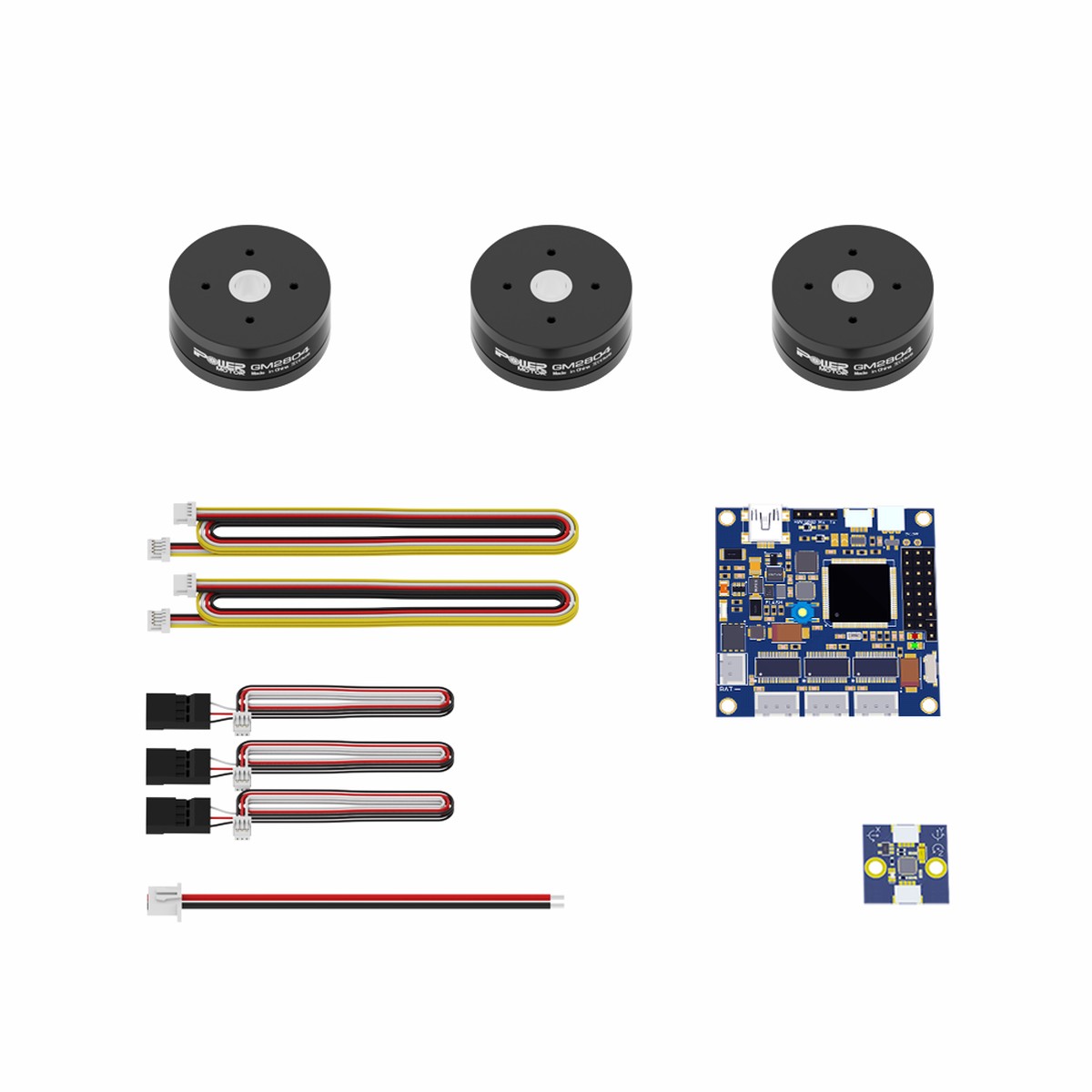

Name: iFlight GM2804 Combo Set - 3x GM2804 Gimbal Motors + Alexmos 32-bit SimpleBGC Controller &amp; Cables
SKU: WKA86610369732
Availability: InStock

Description
Reviews (0)

Overview

The iFlight GM2804 Combo Set is designed for building high-quality 3-axis camera stabilizing systems for UAV mounting and handheld camera stabilizers. This controller version is positioned to replace the previous 8-bit SimpleBGC controller while maintaining 100% back-compatibility and adding new functionality.

Key Features

Suitable for 3-axis camera stabilizing systems (UAV-mounted or handheld)
Includes Alexmos 32-bit SimpleBGC set (back-compatible with previous 8-bit version)
PH3P connector motor wiring with included connecting cable set

Specifications

Model	GM2804
Motor outer diameter	35 0.05 mm
Configuration	12N/14P
Motor height	15 0.2 mm
Hollow shaft OD	8 -0.008/-0.012 mm
Hollow shaft ID	6.5 +0.05/0 mm
Wire length	60 3 mm
Cable AWG	#24
Motor weight	42.3 0.2 g
Wire plug	PH3P connector
No-load current	0.09 0.05 A
No-load voltage	10 V
No-load RPM	1602~1771 RPM
Load current	0.8 A
Load voltage	10 V
Load torque	250-350 gcm
Motor internal resistance	9 ohm 5% (resistance varies with temperature)
High voltage test	DC500V 1mA @ 2 sec
Rotor housing runout	0.1 mm
Steering (axle extension)	Clockwise
High temperature test	Keep at 60 C for 100 hours; motor works normally after 24 hours at room temperature
Low temperature test	Keep at -20 C for 100 hours; motor works normally after 24 hours at room temperature
Maximum power	25 W
Working current	2-3S
Working temperature / humidity	-20~60 C; 10~90%RH

Whats Included

3 x GM2804 gimbal motor
1 x Alexmos 32-bit SimpleBGC set
1 x Connecting cables set

Applications

3-axis UAV camera stabilizing systems
Handheld camera stabilizers

For compatibility questions and build support, contact [email protected] or visit https://rcdrone.top/.
