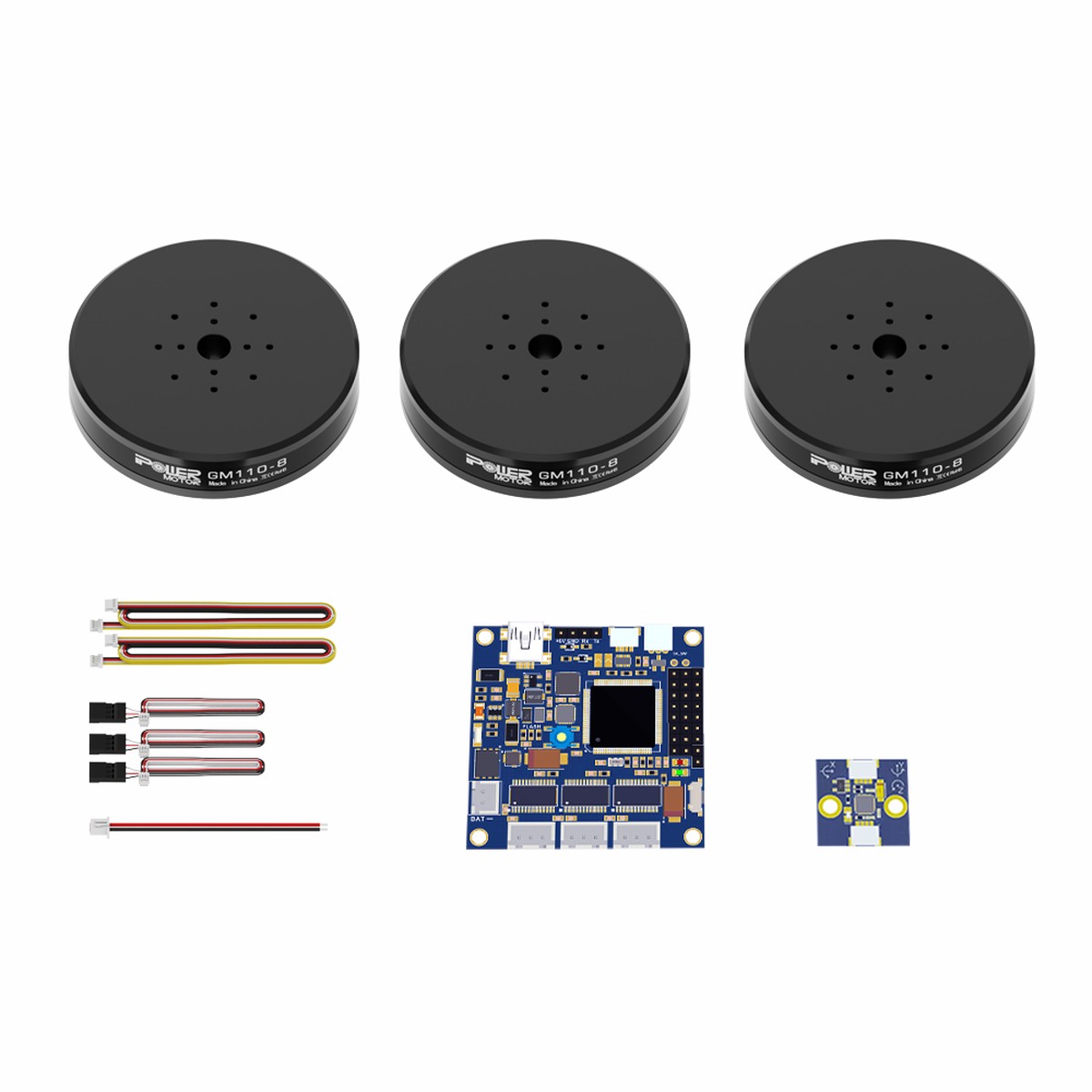

Name: iFlight GM110-8 Combo Set 3 GM110-8 Gimbal Motors + Alexmos 32BIT BGC, 110mm 24N/28P
SKU: WKA86610369738
Availability: InStock

Description
Reviews (0)

Overview

The iFlight GM110-8 Combo Set is a combo set for building high-quality 3-axis camera stabilizing systems for UAV mounting and handheld camera stabilizers. The included controller is a new development direction for stabilizing solutions, designed to replace the previous 8-bit version of the SimpleBGC controller while keeping 100% back-compatibility and adding new functionality.

Key Features

Controller board size: 5050 mm
Mounting hole spacing: 45 mm; mounting hole diameter: 3 mm
Controller power supply voltage: 3S to 6S
Maximum motor current (controller): 1.5 A
5V output for external devices: up to 1 A
GM110-8 gimbal motor configuration: 24N/28P

Specifications

Controller (Alexmos 32BIT BGC set, without alum case)

Board size	5050 mm
Mounting hole distance	45 mm
Mounting hole diameter	3 mm
Power supply voltage	3S to 6S
Maximum motor current	1.5 A
5V output current	Up to 1 A

Gimbal Motor (GM110-8, each)

Model	GM110-8
Motor outer diameter	110 0.05 mm
Configuration	24N/28P
Motor height	26 0.2 mm (included with encoder housing)
Hollow shaft (OD)	N/A
Hollow shaft (ID)	N/A
Wire length	610 3 mm
Cable AWG	#24
Motor weight	534 1 g
Wire plug	2.5 mm dupont connector
No-load current	0.09 0.1 A
No-load voltage	20 V
No-load RPM	125~139 RPM
Load current	2 A
Load voltage	20 V
Load torque (g)	8000-12000
Motor internal resistance	20.19 5% (resistance varies with temperature)
High voltage test	DC500V 1 mA @ 2 sec
Rotor housing runout	0.1 mm
Steering (axle extension)	Clockwise
High temperature test	Keep at 60C for 100 hours; motor works normally after 24 hours at room temperature
Low temperature test	Keep at -20C for 100 hours; motor works normally after 24 hours at room temperature
Maximum power	60 W
Working current	4-6S
Working temperature	-20~60C; 10~90% RH
