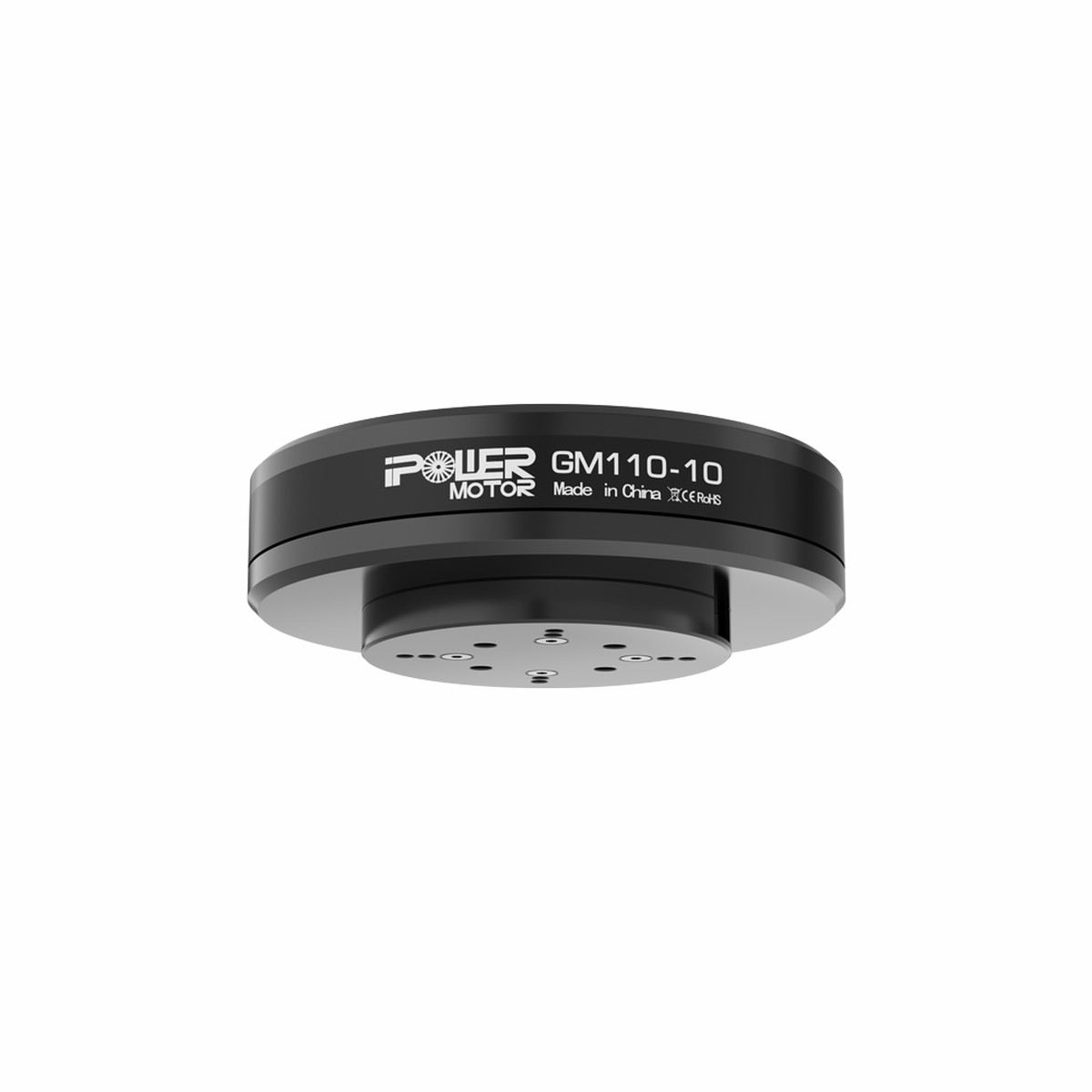

Name: iFlight GM110-10 Gimbal Motor with AS5048A Encoder, 110mm Hollow Shaft 36N/42P 4-6S
SKU: WKA86610369737
Availability: InStock

Description
Reviews (0)

Overview

The iFlight GM110-10 is a brushless direct-drive gimbal motor supplied with an AS5048A absolute angle encoder in an aluminum case. The encoder provides 360 contactless angle position sensing with 14-bit resolution and outputs via SPI/PWM for closed-loop gimbal stabilization and related rotary positioning applications.

For installation and compatibility questions, contact [email protected] or visit https://rcdrone.top/.

Key Features

AS5048A 360 contactless angle position sensor
Standard SPI interface or high-speed I2C interface, plus PWM output
Programmable zero position via SPI or I2C command (no programmer needed)
14-bit full scale resolution: 0.0219/LSB
Angle accuracy: 0.05 (after system linearization and averaging)
Daisy chain capability
Magnetic field input range: 30mT – 70mT
Encoder operating ambient temperature range: -40C to +150C
3.3V / 5V compliant
14-pin TSSOP package (5 x 6.4mm)
Magnet size: 6mm x 2.5mm
Sealed case to help prevent contamination by dust and dirt
Hollow shaft design for slipring use
Motor configuration: 36N/42P

Specifications

Model	GM110-10
Motor outer diameter	110 0.05mm
Configuration	36N/42P
Motor height	33.4 0.2mm (included with encoder housing)
Hollow shaft (OD)	25 -0.008/-0.012 mm
Hollow shaft (ID)	22 +0.05/+0.1 mm
Wire length	610 3mm
Cable	AWG #24
Motor weight	556 1g
Wire plug	2.5mm Dupont connector
No-load current	0.16 0.1 A
No-load volts	20 V
No-load RPM	292~323 RPM
Load current	2 A
Load volts	20 V
Load torque	9000-15000 gcm
Motor internal resistance	4.16 5% (resistance varies with temperature)
High voltage test	DC500V 1mA @ 2sec
Rotor housing runout	0.1mm
Steering (axle extension)	Clockwise
High temperature test	Keep at 60C for 100 hours; motor can work normally after 24 hours at room temperature
Low temperature test	Keep at -20C for 100 hours; motor can work normally after 24 hours at room temperature
Maximum power	80W
Working current (battery)	4-6S
Working temperature	-20~60C; 10~90%RH

Whats Included

1 x GM110-10 brushless gimbal motor
1 x AS5048A encoder with aluminum case

Applications

Brushless direct-drive camera stabilization systems
SLR aerial and Z-axis DIY parts
Rotary angle sensing and closed-loop position feedback systems using AS5048A (SPI/I2C/PWM)
