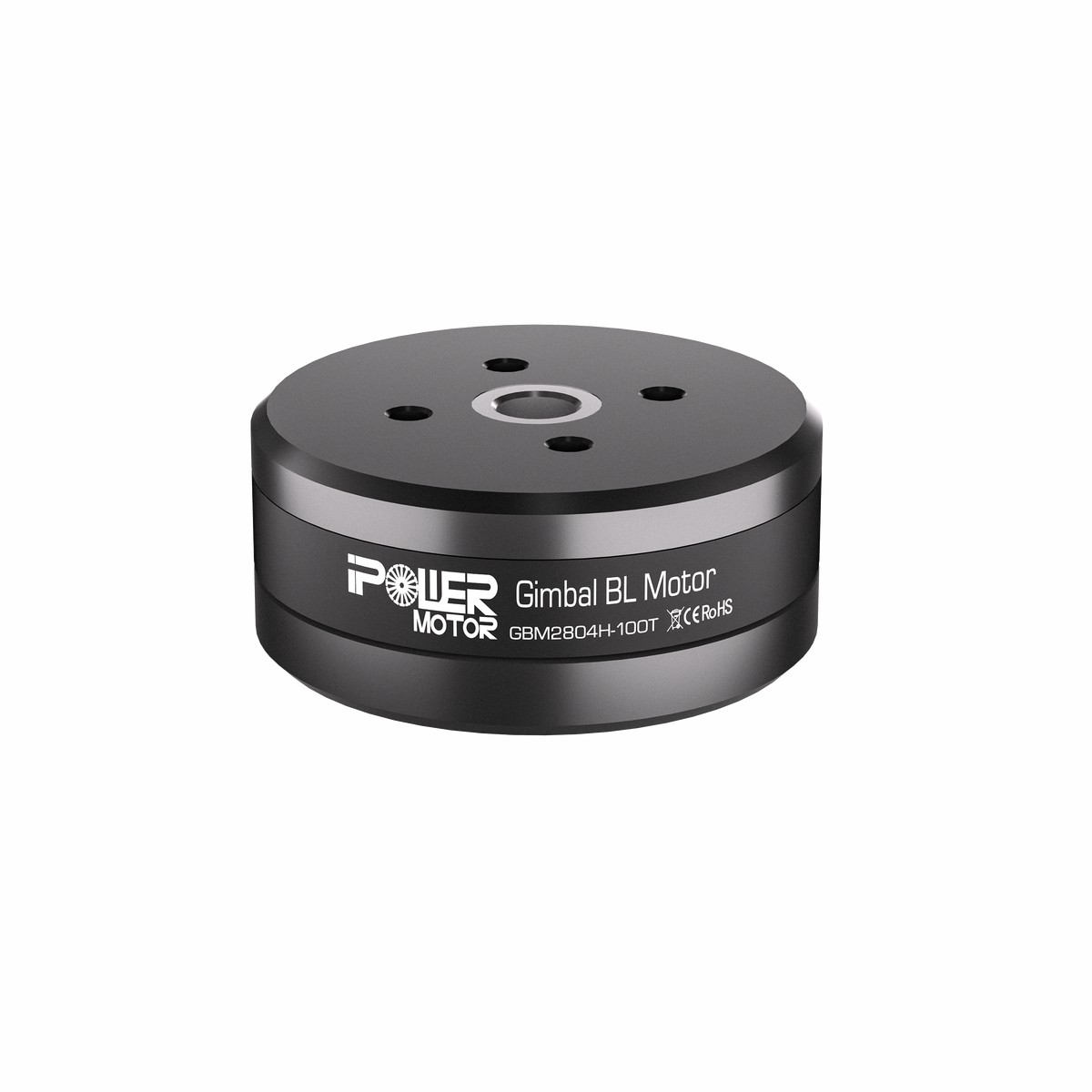

Name: iFlight GBM2804H-100T Brushless Gimbal Motor for GoPro, 12N14P, 35mm, Hollow Shaft, 10V
SKU: ELAC22173211141
Availability: InStock

Description
Reviews (0)

Overview

The iFlight GBM2804H-100T is a brushless gimbal motor designed for camera stabilization applications, including GoPro-sized cameras. It is intended for small multi-rotor platforms lifting GoPro-sized gear, using brushless direct-drive (BLDC) gimbal stabilization.

Key Features

Brushless direct-drive gimbal motor for camera stabilization
12N/14P motor configuration
Hollow shaft design (OD/ID specified below)
Specified load torque: 250-350 gcm (approximately 0.25-0.35 kgcm)
High/low temperature reliability test conditions provided in specifications

Specifications

Model	GBM2804H-100T
Motor outer diameter	35 0.05 mm
Configuration	12N/14P
Motor height	15 0.2 mm (included with encoder housing)
Hollow shaft (OD)	7 -0.008/-0.012 mm
Hollow shaft (ID)	5 +0.05/+0 mm
Wire length	300 3 mm
Cable AWG	#28
Motor weight	39 0.2 g
Wire plug	N/A
No-load current	0.07 0.05 A
No-load volts	10 V
No-load RPM	1468-1622 RPM
Load current	0.8 A
Load volts	10 V
Load torque	250-350 gcm
Motor internal resistance	10 5% (resistance varies with temperature)
High voltage test	DC 500 V, 1 mA @ 2 sec
Rotor housing runout	0.1 mm
Steering (axle extension)	Clockwise
High temperature test	Keep at 60C for 100 hours; motor can work normally after 24 hours at room temperature
Low temperature test	Keep at -20C for 100 hours; motor can work normally after 24 hours at room temperature
Maximum power	25 W
Working current	2-3S
Working temperature	-20 to 60C; 10-90% RH

Whats Included

1 x GBM2804H-100T gimbal motor

Applications

Brushless gimbal stabilization for GoPro-sized cameras
Small multi-rotor platforms requiring direct-drive gimbal motors
