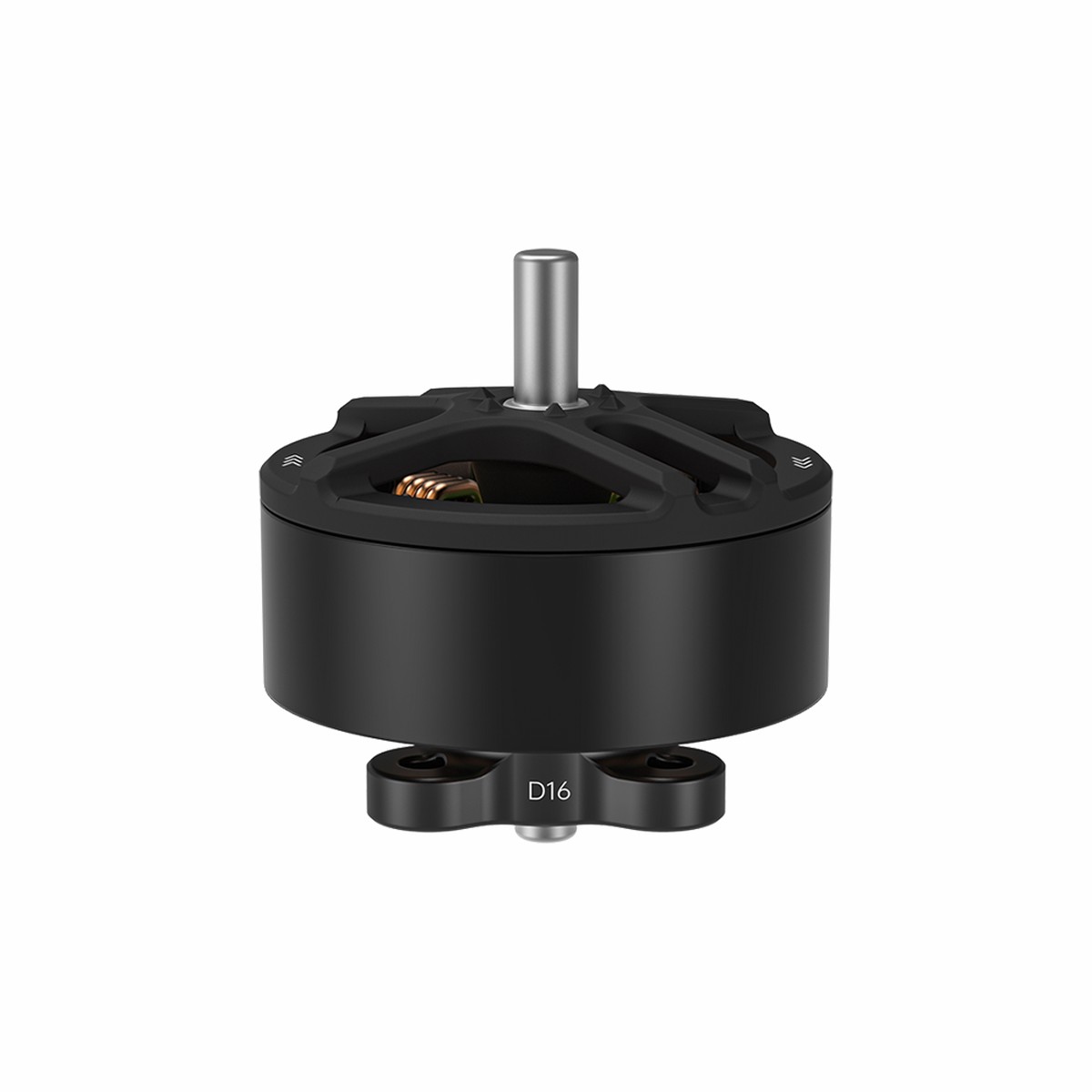

iFlight Defender 16 1002 / 1103 14000KV Brushless Motor for Ultralight 1.6-Inch FPV Drones

Overview

The iFlight Defender 16 Motor is tailored for ultralight micro FPV builds, offering two high-speed versions: the 1002 14000KV and the upgraded 1103 14000KV. Both motors are optimized for 1.6-inch props like the Defender 16 1809-3 and deliver impressive thrust in sub-250g builds. Combined with the Defender 16 AIO and frame, they enable agile performance for freestyle, cruising, or cinematic flights.

Changelog (Mar 5, 2024):
The Defender 16 motor series was upgraded from the 1002 14000KV to the 1103 14000KV version, featuring higher thrust and thermal stability.

Key Features

• KV Rating: 14000KV

• Motor Options: 1002 / 1103

• High-Speed Design: Up to 121.6W power output

• Bearing Type: NMB (1002) / NMB + NSK (1103)

• Construction: N52H Curved magnets + Segmented bell

• Use Case: Sub-250g ultralight 1.6-inch Defender FPV drones

Specifications

Performance Datasheet

Defender 16 1002 14000KV (8V)

Defender 16 1103 14000KV (12V)

Packing List

• 1 Defender 16 1002 or 1103 14000KV Motor (Optional)

• 4 M1.43mm Mounting Screws

Datasheet

Defender 16 1002 14000KV motor specs: 14000KV, 2.7g weight, 8V input, 53.2W max power, N52H magnet, M1.4*3mm screws included. Performance data for various throttle percentages provided.

Defender 16 1103 14000KV motor: 12V, 121.6W max power, 10.58A peak current, 13.3*13mm size, N52H magnet, single-strand copper winding, M1.4*3mm package included. Performance data for various throttle percentages provided.
