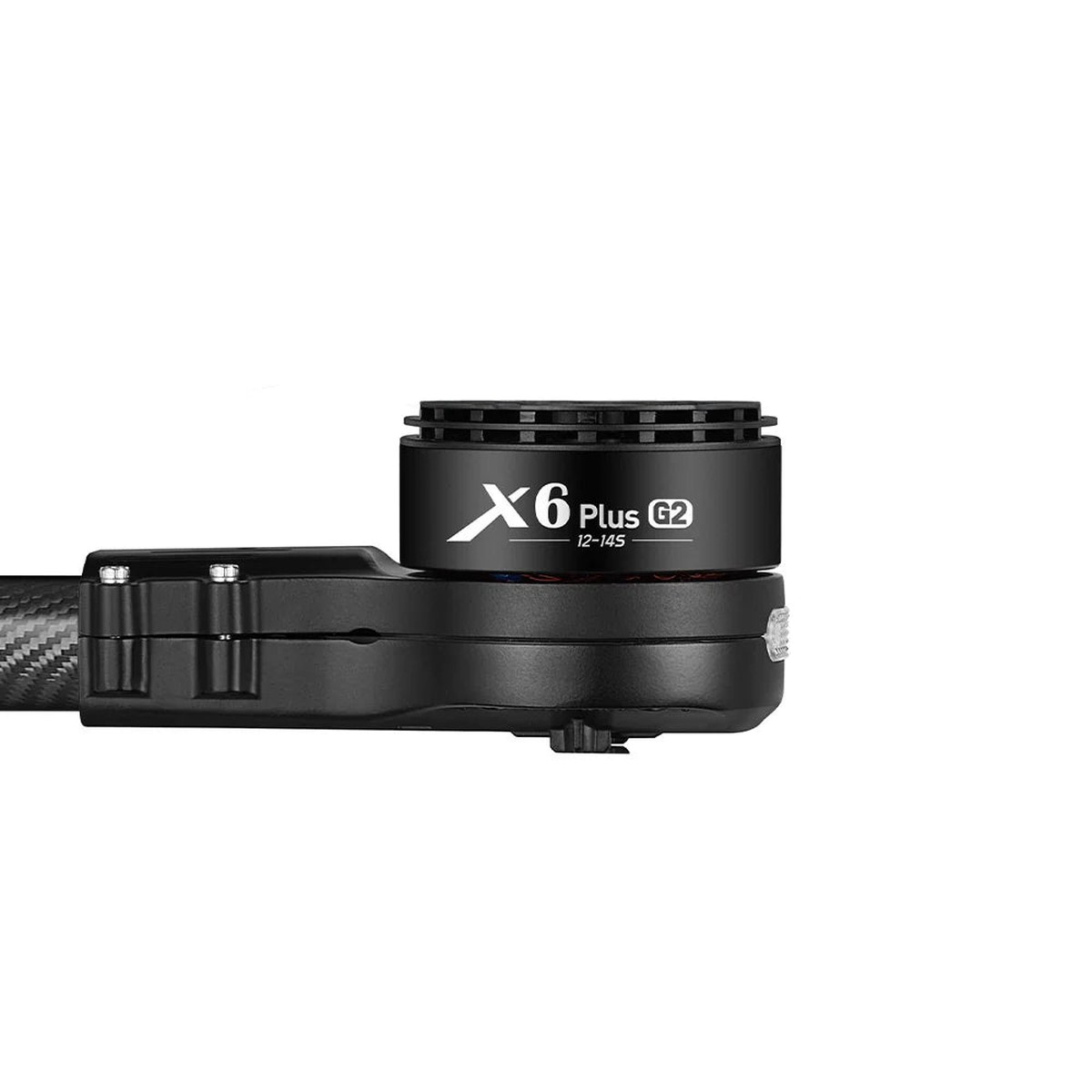

Hobbywing XRotor X6 Plus G2 Propulsion System for Agricultural Drone 12-14S, IPX6, 12.5 kg Thrust

Overview

The Hobbywing XRotor X6 Plus G2 is a propulsion system for agricultural drone platforms, designed for agricultural plant protection drones and small-to-mid UAVs. It supports a rated single-axis load of 6 kg (at sea level) with up to 12.5 kg max thrust per axis (at sea level), and fits 30 mm tube arms.

It features an IPX6 ingress protection rating for harsh environments and uses a FOC-based ESC (optimized for PMSM) for efficient heavy-load operation. The X6 Plus G2 supports real-time data exchange via CAN interface and dual throttle redundancy control (PWM + CAN).

Key Features

• Rated thrust per axis: 4~6 kg
• Max thrust per axis: 12.5 kg (sea level)
• Total weight (including cables and propellers): 748 g; listed as 5.3% lighter than X6 Plus (790 g)
• Maximum thrust (at 46 V normal voltage): 12.5 kg; listed as 5.9% increase vs X6 Plus (11.8 kg)
• IPX6 ingress protection
• Dual throttle modes (digital/analog) with redundancy: PWM + CAN
• Supported safety protections: power on, self check, voltage/current/stall
• Communication support: HWCAN + DroneCAN; ESC protocol listed as Cyphal (UAVCAN)
• Built-in fault logging; failure storage & log: supported
• OTA upgrade support via flight controller; PC DataLink host software OTA supports upgrading multiple ESC firmware in one drone
• Heat dissipation design with dual layer centrifugal fan casing and integrated air vents; heat dissipation efficiency listed as improved by 10%
• Parameter adjustment methods: remote controller; Bluetooth mobile app (Android and iOS; Huawei HarmonyOS not supported); PC software
• Compatibility: retains the same 30 mm tube diameter and mounting geometry stated as the same as X6 Plus

For pre-purchase compatibility checks (battery, tube size, CAN/PWM wiring) or after-sales support, contact [email protected] or visit https://rcdrone.top/.

Specifications

Applications

• Agricultural plant protection drones
• 5 L agricultural quadcopters
• 10 L agricultural hexacopters
• CAAC Class III training drone (< 25 kg)

CAD File

X6 Plus G2CAD

The XRotor X6 Plus G2 layout includes marked mounting holes, 30 carbon tube insertion depth (42 mm), and labeled power/signal cable lengths for straightforward installation.

MFP 24×8.0CAD

The 620 mm propeller uses a four-bolt hub pattern (43.2) with 8 and 20 center dimensions for consistent mounting alignment.

Load Performance

X6 Plus G2-12S & MFP 24×8.0Load Performance Parameters

XRotor X6 Plus G2 performance curves map thrust per rotor against torque, RPM, current draw, power output, and efficiency for setup planning.

X6 Plus G2-12S & MFP 24×8.0Thrust Test Data

The above data is measured by HobbyWing laboratory at room temperature 25, sea level, change the throttle input adjustment, the motor housing temperature is measured after running for 10 minutes under 65% throttle , for reference only.

X6 Plus G2-14S & MFP 24×8.0Load Performance Parameters

Thrust-per-rotor performance curves help compare RPM, torque, efficiency, current draw, and power output across the operating range.

X6 Plus G2-14S & MFP 24×8.0Thrust Test Data

The above data is measured by HobbyWing laboratory at room temperature 25, sea level, change the throttle input adjustment, the motor housing temperature is measured after running for 10 minutes under 65% throttle , for reference only.

Details

The XRotor X6 Plus G2 builds on the proven X6 Plus platform with updated industrial application technology.

The XRotor X6 Plus G2 propulsion system is rated for 46 kg thrust per axis and is positioned for small-to-mid UAVs such as 5L agricultural quadcopters and 10L agricultural hexacopters.

The XRotor X6 Plus G2 propulsion system lists a 748g total weight (including cables and propellers) and up to 12.5kg maximum thrust at 46V normal voltage.

The XRotor X6 Plus G2 uses a vented, dual-layer centrifugal fan casing to improve airflow and help reduce heat buildup during operation.

XRotor X6 Plus G2 settings can be adjusted through the remote controller, a Bluetooth mobile app, or PC software for flexible setup and updates.

XRotor X6 Plus G2 supports a CAN interface for real-time monitoring of key power-system parameters like throttle, voltage, current, temperature, and RPM.
