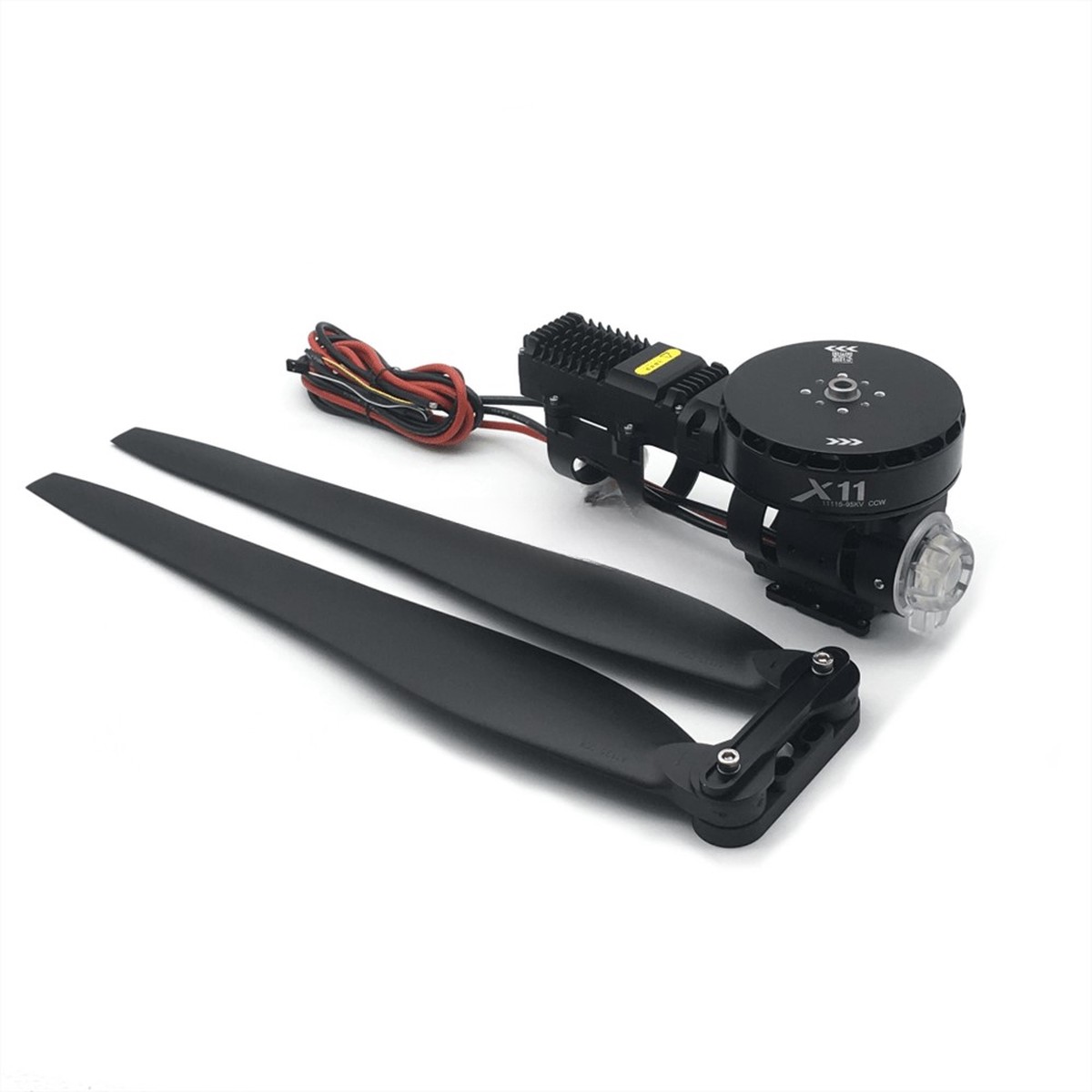

Hobbywing XRotor X11 Motor – 41135 propeller 14S 16S Motor Maximum Load 34kg for Agriculture spraying drone

Hobbywing XRotor X11 Motor – 41135 propeller 14S 16S Motor Maximum Load 34kg for Agriculture spraying drone

Hobbywing XRotor X11 Motor – 41135 propeller 14S 16S Motor Maximum Load 34kg for Agriculture spraying drone

Original price was: $385.92.Current price is: $148.00.
  • SKU:THQ8012116857
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Hobbywing X11 power system SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Assembled class

Technical parameters: Value 3

Size: X11

Size: X11

Remote Control Peripherals/Devices: ESC

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: Speed Controllers

Origin: Mainland China

Model Number: X11

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

41135 Propeller link

product name

X11-14S/16S/18S


technical parameter


Maximum pulling force: 34kg/shaft (53.6V, sea level)


Recommended take-off weight: 15-17kg/axis (sea level)


Recommended battery: 14S (LiPo)


Ambient temperature: (-20~50)


Powertrain Weight: 2340g


Protection class: IPX7


drone electric motor


KV value: 95KV


Stator size


Applicable carbon tube outer diameter: 45/50mm (diameter)


bearing


Imported waterproof bearing

ESC


Support battery: 14S (LiPo)


PWM input signal level: 3.3V/5V


Compatible signal frequency: 100-500Hz


Working pulse width: 1050-1950us (curing)


Maximum allowable voltage: 60.9V


Maximum allowable peak current (10 seconds)


150A (requires good cooling conditions)


BEC: none


Nozzle installation thread hole: 28.4mm-2*M3

kobbywng x11 power system re no: 3625186 battery 12-165 max thrust 34kg takeoff weight : 15-17kg x

Hobbywing X-Rotor X11 Motor: 41135 propeller, suitable for agriculture spraying drones, with maximum load capacity of 34 kg. Key specifications include 14S or 16S motor, LiPo battery compatibility, 18S FOC electronics, maximum output current of 120A, and a KV rating of 75 rpm/V.

3625186 7 5 % g 6 7 40 1 2 3 6″#”

shenzhen Hongcai Testing Technology Co, Ltd. certifies that hnts neen completed and reports have been generated . manufacturer: Hobbywing Technology Co. LT Address; Bldg Yasen Hi-tech Industrial Park, Chengxin Rd.,, Raolong Town .
