Hobbywing XRotor V9626 IPC 160KV 12S VTOL Motor (HV-9626-160KV) 9340W, 38.5kg Thrust

Overview

The Hobbywing XRotor V9626 IPC 12S VTOL motor (V9626 160KV / HV-9626-160KV) is designed for VTOL rotor power series applications and supports Intelligent Propeller Control (IPC). Key rated and maximum performance figures include max power of 9340W and max thrust of 38.5kg.

For compatibility checks (propellers, ESC, wiring), contact [email protected] or visit https://rcdrone.top/.

Key Features

• Intelligent Propeller Control (IPC): low power consumption with precision positioning; propeller stop positioning can reduce cruising resistance and improve flight time when used with a Hobbywing ESC; standardized installation interface.
• Optimized magnetic circuit design for improved performance, supporting high torque and strong burst power.
• Stator process: high standard silicon steel sheet, rust proof, with 180C high temperature resistance paint-coat.
• Enamelled wire temperature rating: 200C; magnet temperature rating: 180C.
• Isolation test: 500V AC high voltage resistance test.
• Protection level: IP5; bearing: water proof bearing.
• Dynamic balance: 15mg.
• High-load figures shown: motor weight 975g; thrust-to-weight ratio up to 39:1; suitable for VTOL take-off weight of 65kg (conventional four-rotor VTOL layout).
• Maximum thrust test note: 38.5kg (tested with MSC 32×10.5 propellers under 46V at full throttle in the laboratory).

Specifications

Applications

• VTOL rotor power series motors
• Drone application scenarios (shown)

Recommended application combinations (provided)

• Motor: V9626 160KV
• Propeller: MSC 30×9.8 / MSC 32×10.5 (also provided: MFP 30×9.8 / MFP 32×10.5)
• ESC: XRotor Pro-H200A-14S-BLDC-IPC (also provided: XRotor Pro H200A 14S BLDC IPC)
• Battery: 12S LiPo
• Thrust/rotor: 12~16kg
• Takeoff weight of quadrotor: 50~64kg

Performance

V9626 160KV + MFP 30×9.8Load performance parameters

V9626 160KV + MFP 30×9.8Motor Propeller Pull Test Data

The above data is measured by HobbyWing laboratory at room temperature 25, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.

V9626 160KV + MFP 32×10.5Load performance parameters

V9626 160KV + MFP 32×10.5Motor Propeller Pull Test Data

The above data is measured by HobbyWing laboratory at room temperature 25, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.

Details

The XRotor V9626 motor drawing details the overall size and multiple mounting hole patterns to help plan fitment and hardware selection.

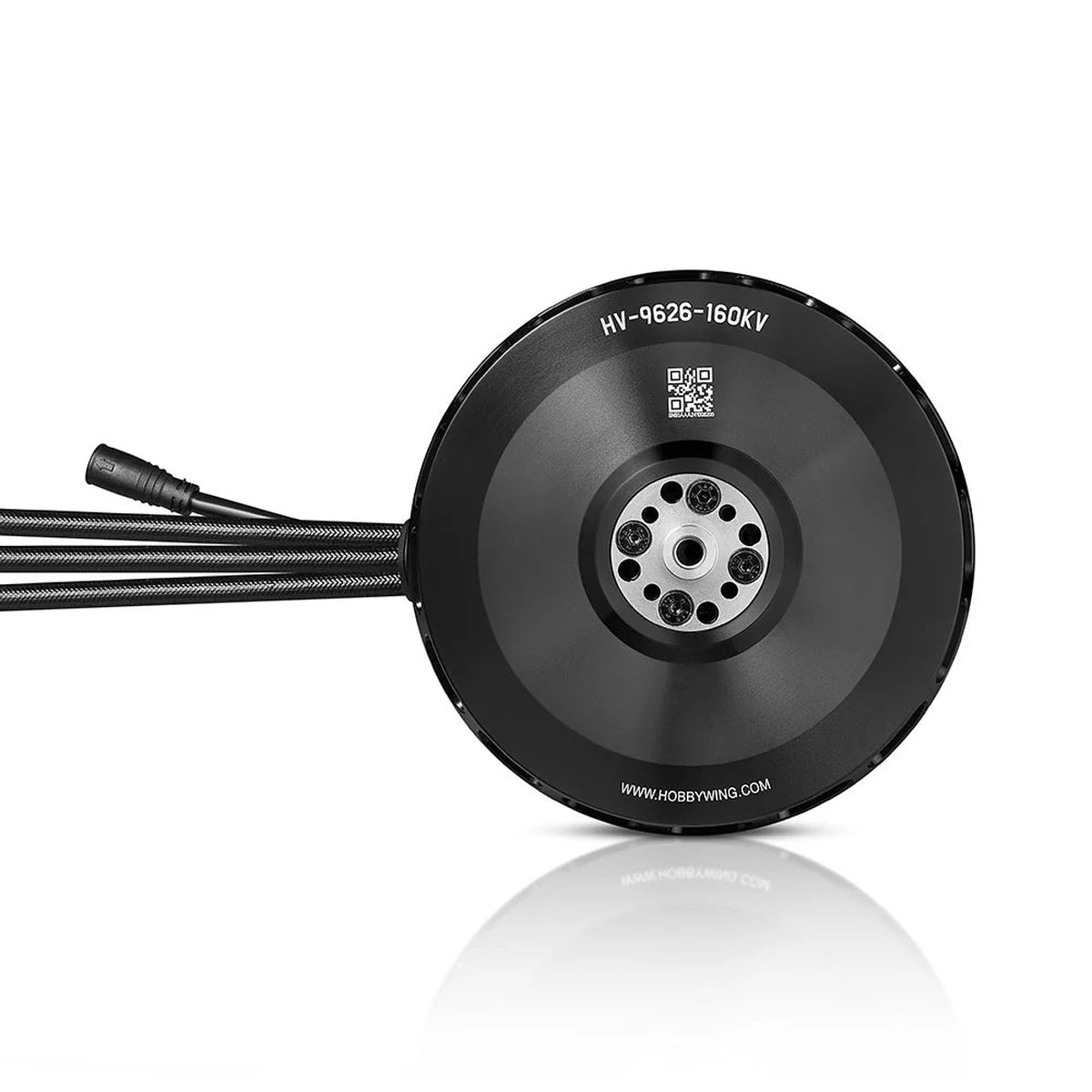

The XRotor V9626 160KV VTOL motor features a vented aluminum housing, central mounting hub, and extended leads for easier routing.

The Hobbywing XRotor HV-9626 160KV motor is listed at 975g with a quoted maximum thrust of 38.5kg and a 39:1 thrust-to-weight ratio.

The XRotor V9626 VTOL motor is positioned for drone applications such as emergency response operations.

The Hobbywing XRotor V9626 VTOL motor features a vented black housing with a clean, low-profile can design for compact installations.

The XRotor V9626 IPC motor uses Intelligent Propeller Control for precise propeller stop positioning with a standardized installation interface.

Recommended setups pair the V9626 160KV motor with a 12S LiPo, MSC 30×9.8 or 32×10.5 propeller, and XRotor Pro-H200A-14S-BLDC-IPC ESC.
