Hobbywing XRotor V5212 275KV IPC Motor for VTOL Fixed Wing Drone, 12S, IPX5, 9.1kg Thrust

Hobbywing XRotor V5212 275KV IPC Motor for VTOL Fixed Wing Drone, 12S, IPX5, 9.1kg Thrust

Hobbywing XRotor V5212 275KV IPC Motor for VTOL Fixed Wing Drone, 12S, IPX5, 9.1kg Thrust

Original price was: $139.00.Current price is: $69.50.
  • SKU:A2380050330
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

This motor is designed for VTOL fixed wing drone platforms. The Hobbywing XRotor V5212 275KV IPC motor supports up to 9.1kg maximum thrust (at 46V) with 16-17 in propellers, while keeping total weight (with wire) to 248g. The maximum thrust-to-weight ratio reaches 36:1, and the motor is intended to maintain torque output in high-altitude and strong-wind conditions.

Key Features

  • V Series – specially designed for VTOL
  • Optimized magnetic circuit design to increase torque and overload capacity
  • Large air outlet with centrifugal self heat dissipation structure; rated operating temperature rise is 20% lower than competitive products
  • Optional intelligent propeller control version; compatible with Hobbywing IPC ESCs for propeller stop position settings to reduce cruise drag and increase flight time
  • Protection level: IPX5
  • High-end materials and rigorous testing, including 48h salt spray verification and 1000h+ reliability test (per VTOL application conditions)

For compatibility checks and installation support, contact [email protected] or visit https://rcdrone.top/.

Specifications

Model V5212 275KV
KV 275
Battery (LiPo) 12S
No-load current 2.25A
Maximum current 53A
Max power 2469W
Max thrust 9.1kg (@46V)
Rated power input 690W
Rated power output 586.5W
Resistance 64mOhm
Motor size Phi58*H37.2mm
Stator size Phi52mm
Slot & pole 24N28P
Dynamic balance <= 8mg
Motor axle diameter Phi4mm
Wire size 16AWG
Wire length 600mm
Weight (with wire) 248g
Protection level IPX5
Stator process High standard silicon steel sheet, rust proof, 180C high temperature resistance paint-coat
Enamelled wire 200C
Magnet 150C
Isolation test 500V AC high voltage resistance test
Bearing High-quality waterproof bearing

CAD drawing dimensions (selected)

Outer diameter Phi58
Body height 37.20mm
Heights (additional) 32.30mm; 30.80mm
Shaft diameter Phi4
Shaft length (from top surface) 24mm
Mounting pattern (motor) 4-M3 on Phi25
Mounting circles shown Phi18; Phi12
Plate dimensions shown 20mm; 4.1mm; 2mm
Hole note shown 4-Phi3.2
Additional dimension shown 4.90mm

Recommended combinations

Motor V5212 275KV
Propeller MSC 16×5.4 / MSC 17×5.8
ESC XRotor Pro H60A 14S / XRotor Pro H80A 14S IPC
Battery 12S LiPo
Thrust/rotor 2.5~3.5kg
Maximum take-off weight/quadrotor 10~14kg

Applications

  • VTOL fixed-wing drone propulsion systems

Performance

V5212 275KV MSC 16×5.4Load performance parameters

V5212 275KV MSC 16×5.4Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N-m)

Power Output(W)

Temperature()

46V (12S LiPo)

MSC 16×5.4

33%

1049

2.6

121.5

3978

8.6

0.21

103.3

85.4C

35%

1195

3.1

140.5

4220

8.5

0.23

119.4

37%

1334

3.5

160.2

4442

8.3

0.26

136.2

39%

1468

3.9

180.8

4650

8.1

0.28

153.7

42%

1667

4.6

213.7

4948

7.8

0.32

181.6

45%

1871

5.4

249.6

5238

7.5

0.36

212.2

48%

2084

6.3

289.4

5527

7.2

0.40

246.0

51%

2311

7.2

333.7

5818

6.9

0.44

283.7

54%

2553

8.3

383.0

6113

6.7

0.48

325.5

57%

2810

9.5

437.4

6410

6.4

0.53

371.8

60%

3083

10.8

497.0

6707

6.2

0.58

422.5

63%

3369

12.2

562.0

7003

6.0

0.64

477.7

66%

3668

13.7

632.4

7296

5.8

0.69

537.5

69%

3977

15.4

708.3

7586

5.6

0.75

602.1

72%

4294

17.2

790.1

7873

5.4

0.81

671.5

75%

4618

19.1

877.9

8156

5.3

0.88

746.2

78%

4947

21.1

972.2

8437

5.1

0.94

826.3

81%

5283

23.3

1073.5

8717

4.9

1.01

912.5

84%

5625

25.7

1182.5

8997

4.8

1.07

1005.1

87%

5977

28.2

1300.0

9276

4.6

1.14

1105.0

90%

6343

31.0

1426.9

9556

4.4

1.21

1212.8

100%

7684

41.0

1889.4

10363

4.1

1.47

1606.0

The above data is measured by HobbyWing laboratory at room temperature 25, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.

V5212 275KV MSC 17×5.8Load performance parameters

V5212 275KV MSC 17×5.8Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N-m)

Power Output(W)

Temperature()

46V (12S LiPo)

MSC 17×5.8

33%

1275

3.1

143.8

3918

8.9

0.25

122.3

93.0C

35%

1445

3.6

167.2

4154

8.6

0.29

142.1

37%

1611

4.2

192.0

4376

8.4

0.32

163.2

39%

1774

4.7

218.3

4587

8.1

0.35

185.5

42%

2017

5.7

260.6

4889

7.7

0.40

221.5

45%

2264

6.7

306.8

5179

7.4

0.45

260.7

48%

2520

7.8

357.4

5464

7.1

0.50

303.8

51%

2787

9.0

413.1

5746

6.7

0.55

351.1

54%

3069

10.3

474.4

6026

6.5

0.61

403.3

57%

3367

11.8

541.9

6306

6.2

0.67

460.7

60%

3683

13.4

616.1

6584

6.0

0.73

523.7

63%

4018

15.1

697.5

6862

5.8

0.80

592.9

66%

4371

17.1

786.5

7138

5.6

0.87

668.5

69%

4743

19.2

883.7

7412

5.4

0.94

751.1

72%

5132

21.5

989.8

7685

5.2

1.02

841.3

75%

5536

24.0

1105.5

7956

5.0

1.10

939.7

78%

5955

26.7

1231.7

8226

4.8

1.19

1046.9

81%

6385

29.7

1369.2

8496

4.7

1.27

1163.8

84%

6824

33.0

1518.7

8766

4.5

1.37

1290.9

87%

7271

36.5

1680.5

9035

4.3

1.46

1428.4

90%

7721

40.3

1854.5

9300

4.2

1.55

1576.3

100%

9140

53.6

2469.5

10067

3.7

1.85

2099.1

The above data is measured by HobbyWing laboratory at room temperature 25, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.

Details

The XRotor V5212 motor uses a 58mm can size with clearly laid out 4x M3 mounting patterns to help confirm fitment on your frame.

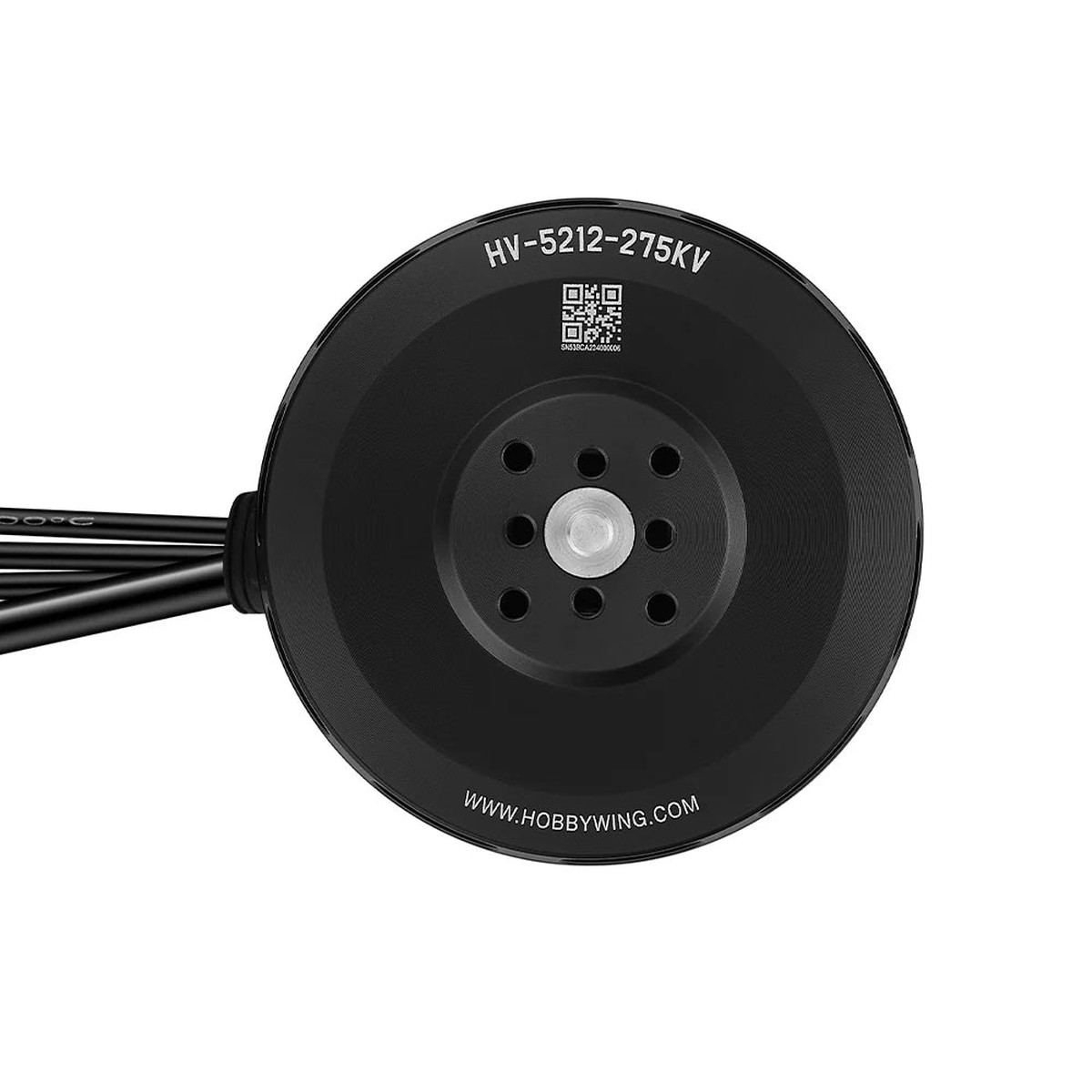

The XRotor V Series 5212-275KV motor features a vented can design with clearly labeled HV-5212-275KV markings for easy identification during installs.

Hobbywing XRotor V5212 275KV IPC motor specs list a maximum 36:1 thrust-to-weight ratio and up to 9.1 kg thrust at 46V.

The XRotor V5212 motor uses a large air outlet and centrifugal heat-dissipation structure to help manage internal heat during operation.

The XRotor V5212 IPC motor supports an optional intelligent propeller control setup with Hobbywing IPC ESCs and a standardized installation interface for common propellers.

The XRotor V5212 275KV IPC motor is presented as using high-end materials with rigorous testing, including 48-hour salt spray verification.

The V5212 275KV motor is recommended with MSC 16×5.4 or 17×5.8 propellers, XRotor Pro H60A/H80A 14S ESCs, and a 12S LiPo battery.
