Hobbywing XRotor V11122 IPC Motor 60KV (HV-11122-60KV) IP45 for Medium-Large VTOL UAV

Overview

The Hobbywing XRotor V11122 is an IPC motor designed as a medium to large scale VTOL UAV propulsion solution. The motor model marking includes HV-11122-60KV.

Key Features

• Large thrust-to-weight ratio and strong propulsion output (weight 1,319g, max. thrust 52.5kg, thrust-to-weight ratio up to 39.8).
• IP45 protection design with steel mesh structure, large air outlets, and centrifugal cooling fan to resist dust intrusion.
• Verified by industry-standard tests: drive compatibility test, water ingress test, and high/low temperature operation tests for stable operation in complex environments.
• IPC function support: when used with Hobbywing IPC ESC, the propeller stopping position can be set accurately while reducing cruise resistance and extending flight endurance.
• Standardized installation connector: propeller adapter base supports installation of various conventional propellers to meet different configuration needs.
• 48-hour neutral salt spray test per GB/T 10125-2012 for harsh offshore environments with severe salt spray corrosion.
• Premium-specification materials: magnets rated up to 180C, enameled wires rated up to 200C, iron core punched by 0.2 mm low-loss silicon steel sheets, and a bread-shaped magnetic structure.

Specifications

Propeller Adapter Base Dimensions (as labeled)

• D30, 4-M5
• 4 x D4.20
• D7.50
• D24, 4-M4

For pre-sales and technical support, contact https://rcdrone.top/ or email [email protected].

Applications

• Marine inspection
• Offshore wind farm operation and maintenance
• Marine search and rescue
• Power line inspection
• Hydrological monitoring
• Agriculture and forestry monitoring
• Emergency response and other industrial applications

CAD File

Performance

V11122 60KV Load performance parameters

V11122 60KV Motor Propeller Pull Test Data

The above data is measured by HobbyWing laboratory at room temperature 25, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.

Details

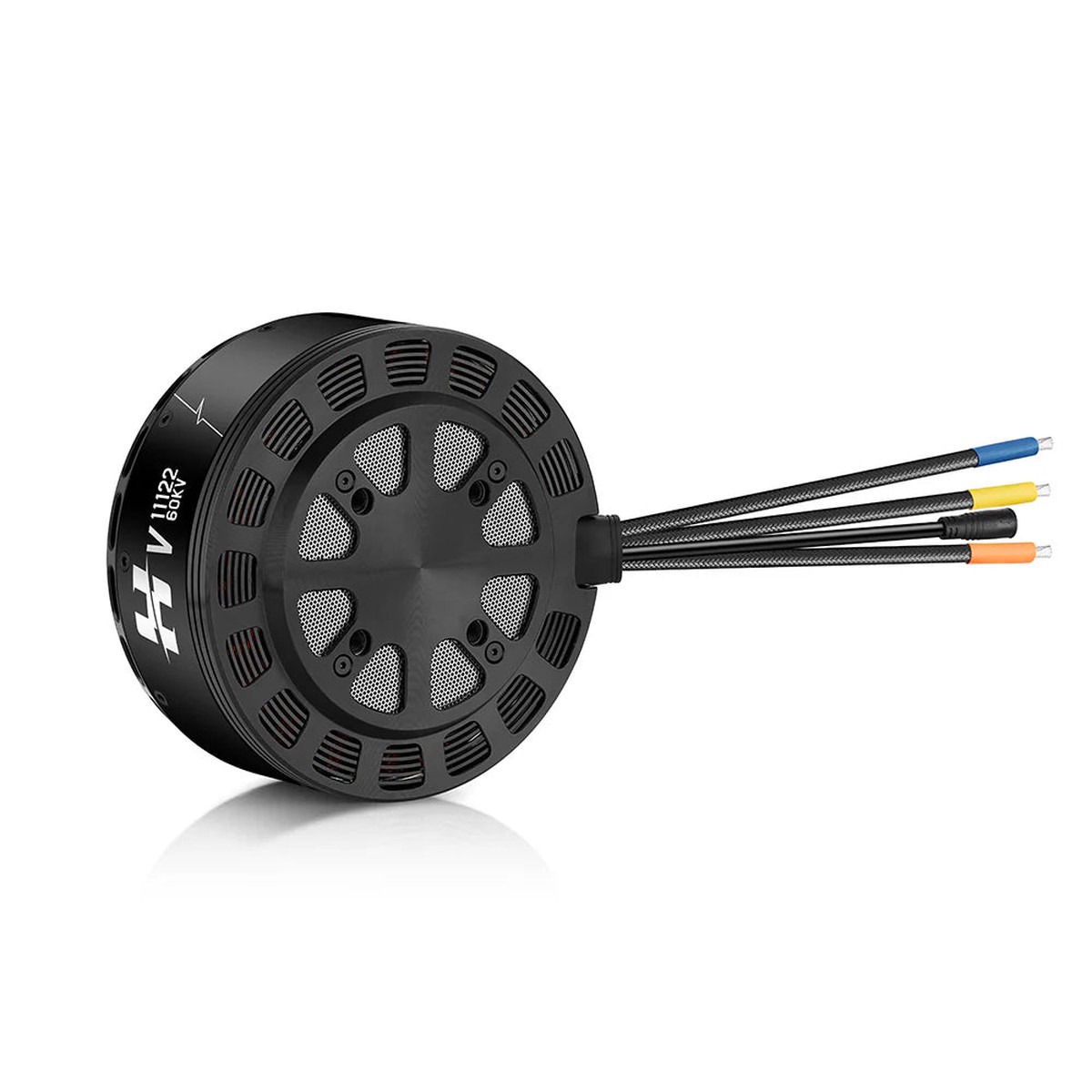

The Hobbywing XRotor V11122 HV-11122-60KV motor features a compact round housing and three color-coded leads for straightforward wiring.

The Hobbywing XRotor V11122 motor is listed at 1,319 g with up to 52.5 kg max thrust and a thrust-to-weight ratio up to 39.8 for VTOL UAV applications.

Hobbywing XRotor V11122 motor is positioned for wide UAV uses including marine inspection, offshore wind farm maintenance, and search and rescue.

The IP45-rated steel mesh bottom cover and bracket, paired with large air outlets and a centrifugal cooling fan design, help resist dust intrusion.

The Hobbywing XRotor V11122 IPC motor is tested on a rig with a propeller installed to verify drive compatibility.

The XRotor IPC motor supports precise propeller stopping position when used with a compatible Hobbywing IPC ESC.

The standardized propeller adapter base supports multiple bolt patterns (30 4-M5 and 24 4-M4) for flexible propeller mounting.

The Hobbywing XRotor V11122 IPC motor uses high-grade magnets (up to 180C), enameled wires (up to 200C), and 0.2 mm silicon steel sheets in the iron core.

The V11122 60KV setup is paired with a 24S LiPo, VSC 40.1×16 propeller, and XRotor Pro H200A 24S BLDC ESC, with a 2023 kg takeoff weight per rotor.
