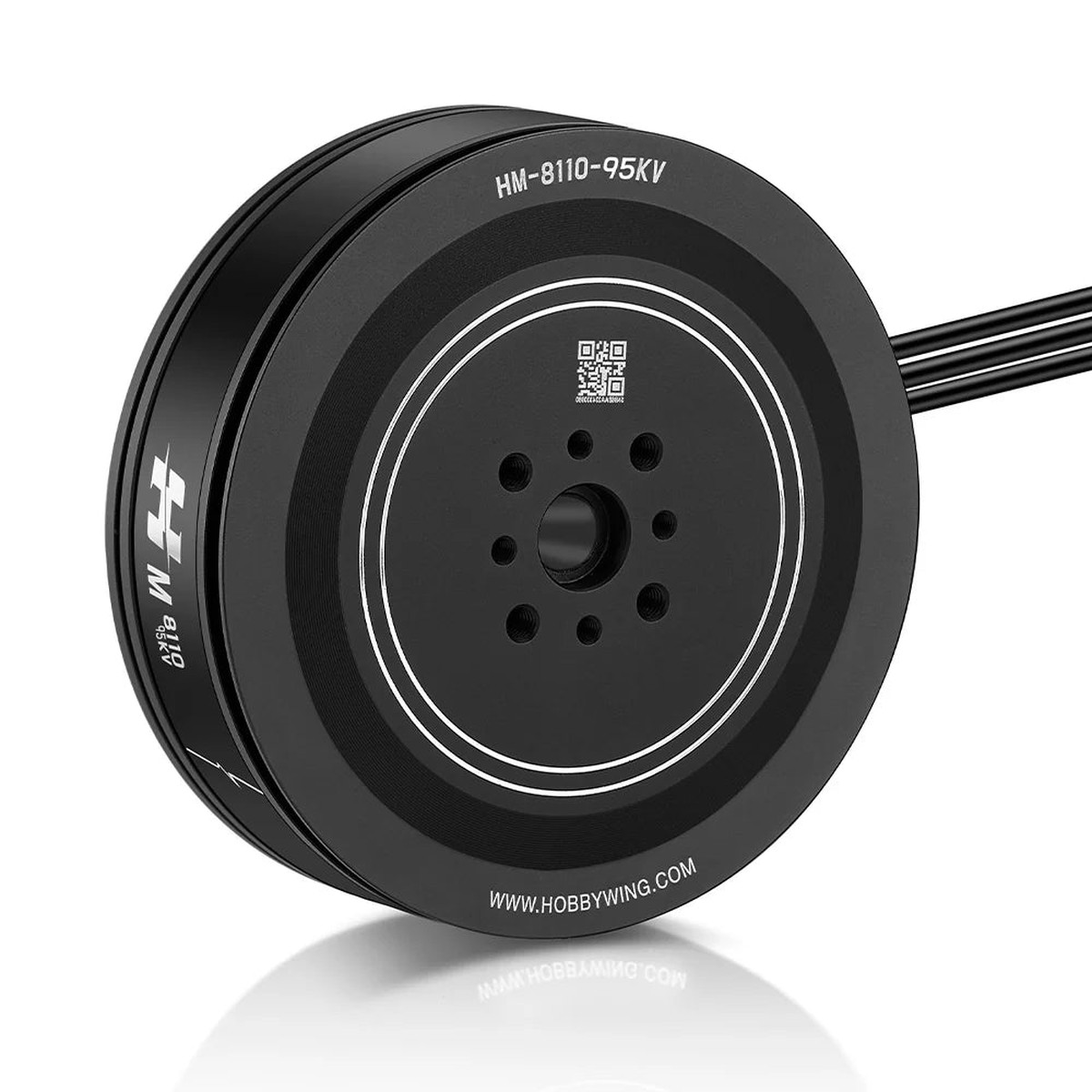

Name: Hobbywing XRotor M8110 HighProt Industrial Multirotor Drone Motor 95KV / 110KV, 12S LiPo, IP45, 11.3kg Thrust
SKU: ELAC22173212260
Availability: InStock

Description
Reviews (0)

Overview

Hobbywing XRotor M8110 Motor for Industrial Multirotor Drone (M8110 HighProt) is a brushless outer-rotor motor designed for 12S LiPo industrial multirotor platforms. Two KV variants are offered (95 KV and 110 KV) with a protected outer-rotor housing (protection level IP45), waterproof bearings, and materials specified for high-temperature and high-reliability operation.

For pre-sales, technical support, or warranty inquiries contact support@.

Key Features

Outer-rotor design with fully enclosed structure and IP45 protection level.
Two KV options: 95 KV and 110 KV to match different payload and efficiency requirements.
Stator punched from high-standard low-loss silicon steel with 180C magnet and 220C enamelled wire ratings.
Waterproof bearings and dynamic balance 10mg for reduced vibration and longer life.
Precision CNC rotor bracket and integrated bracket/shaft design to improve co-axiality and reduce part count.
Multiple mounting patterns for propeller and motor mounting: prop mounting 4 x M4 @ D23 + 4 x M3 @ D20; motor mounting 4 x M4 @ D36.
Recommended for 12S LiPo systems with XRotor Pro 60A / XRotor Pro H60A ESCs and MSC-series propellers.

Specifications

Parameter	95 KV	110 KV
Model	M8110 HighProt
KV	95	110
Motor size	Diameter 87.1 mm H 28.9 mm
Stator size	Diameter 81.0 mm
Stator process	High-standard silicon steel sheet, rust proof, 180C high-temperature resistance paint-coat
Enamelled wire temperature rating	220C
Magnet temperature rating	180C
Isolation test	500 V AC high-voltage resistance test
Protection level	IP45
Slot & Pole	36N42P
Dynamic balance	10 mg
Bearing	Waterproof bearing
Motor axle diameter	Shaft sleeve 10 mm
Prop mounting dimensions	4 x M4 @ D23 + 4 x M3 @ D20
Motor mounting dimensions	4 x M4 @ D36
Battery (recommended)	12S LiPo
No-load current	1.1 A	1.27 A
Maximum current (Non-hermetic ambient temperature 25C)	43.2 A	39.2 A
Max power	1992 W	1803 W
Max thrust	11.3 kg	11.0 kg
Resistance	132.9 mOhm	112.3 mOhm
Wire size	16WG	16AWG
Wire length	100 mm
Weight (with wire)	315 g	317 g
Rated power input	400 W
Rated power output	340 W

Applications

Recommended propellers: MSC 29 x 9.5 / MSC 30 x 9.8 / MSC 32 x 10.5. Recommended ESC: XRotor Pro 60A 14S (or XRotor Pro H60A 14S). Recommended battery: 12S LiPo. Expected thrust per rotor: 3.04.0 kg. Typical quadrotor takeoff weight range with these motors: 12.016.0 kg. The motor is intended for industrial multirotor drone platforms requiring long endurance and high payload capacity.

Performance

M8110 95KV+MSC 30×9.8 Load performance parameters

M8110 95KV+MSC 30×9.8 Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(Nm)	Power Output(W)	Temperature()
46V (12S LiPo)	MSC 30×9.8	33%	1281	1.9	89.6	1366	14.3	0.45	76.1	68.0
35%	1421	2.2	101.3	1433	14.0	0.49	86.1
37%	1575	2.5	114.8	1505	13.7	0.54	97.6
39%	1743	2.8	130.1	1580	13.4	0.60	110.6
42%	2015	3.4	156.5	1698	12.9	0.69	133.0
45%	2311	4.1	186.9	1818	12.4	0.79	158.8
48%	2626	4.8	221.2	1939	11.9	0.89	188.0
51%	2956	5.6	259.3	2057	11.4	1.00	220.4
54%	3298	6.5	301.1	2172	11.0	1.12	256.0
57%	3650	7.5	346.4	2282	10.5	1.23	294.5
60%	4008	8.6	395.1	2388	10.1	1.35	335.8
63%	4371	9.7	447.0	2490	9.8	1.47	380.0
66%	4736	10.9	502.2	2588	9.4	1.59	426.9
69%	5105	12.2	560.7	2683	9.1	1.71	476.6
72%	5477	13.5	622.6	2776	8.8	1.84	529.2
75%	5853	14.9	688.3	2870	8.5	1.96	585.1
78%	6237	16.5	758.3	2963	8.2	2.09	644.5
81%	6631	18.1	833.2	3059	8.0	2.23	708.2
84%	7040	19.8	913.9	3157	7.7	2.37	776.8
87%	7472	21.8	1001.6	3259	7.5	2.52	851.4
90%	7933	23.8	1097.4	3363	7.2	2.68	932.8
100%	9708	31.6	1454.1	3628	6.7	3.22	1236.0

The above data is measured by HobbyWing laboratory at room temperature 25, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.

M8110 95KV+MSC 32×10.5 Load performance parameters

M8110 95KV+MSC 32×10.5 Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(Nm)	Power Output(W)	Temperature()
46V (12S LiPo)	MSC 32×10.5	33%	1654	2.5	116.5	1307	14.2	0.64	99.0	85.0
35%	1812	2.8	130.3	1364	13.9	0.69	110.7
37%	1996	3.2	147.2	1428	13.6	0.76	125.1
39%	2202	3.6	167.3	1498	13.2	0.84	142.2
42%	2545	4.4	203.0	1609	12.5	0.97	172.5
45%	2918	5.3	245.1	1723	11.9	1.11	208.3
48%	3313	6.4	293.1	1836	11.3	1.25	249.1
51%	3722	7.5	346.3	1946	10.7	1.40	294.3
54%	4141	8.8	404.2	2050	10.2	1.56	343.5
57%	4562	10.1	466.2	2150	9.8	1.72	396.2
60%	4985	11.6	531.9	2243	9.4	1.87	452.1
63%	5406	13.1	601.2	2332	9.0	2.03	511.0
66%	5825	14.6	674.0	2417	8.6	2.18	572.9
69%	6243	16.3	750.4	2498	8.3	2.34	637.8
72%	6661	18.0	830.9	2579	8.0	2.49	706.3
75%	7082	19.9	916.2	2658	7.7	2.65	778.7
78%	7510	21.9	1007.2	2738	7.5	2.81	856.1
81%	7950	24.0	1105.4	2820	7.2	2.98	939.6
84%	8408	26.3	1212.5	2904	6.9	3.15	1030.6
87%	8890	28.9	1330.5	2991	6.7	3.34	1130.9
90%	9405	31.7	1461.9	3079	6.4	3.53	1242.6
100%	11354	43.3	1992.2	3301	5.7	4.22	1693.4

M8110 110KV+MSC 29×9.5 Load performance parameters

M8110 110KV+MSC 29×9.5 Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(Nm)	Power Output(W)	Temperature()
46V (12S LiPo)	MSC 29×9.5	33%	1420	2.4	108.5	1461	13.1	0.50	92.2	76.0
35%	1581	2.6	120.5	1533	13.1	0.55	102.4
37%	1761	2.9	135.5	1612	13.0	0.61	115.2
39%	1957	3.3	153.5	1696	12.7	0.68	130.5
42%	2276	4.0	186.1	1827	12.2	0.78	158.2
45%	2619	4.9	224.8	1960	11.7	0.90	191.1
48%	2980	5.8	268.9	2092	11.1	1.02	228.6
51%	3353	6.9	317.7	2220	10.6	1.15	270.0
54%	3735	8.0	370.3	2342	10.1	1.27	314.8
57%	4122	9.3	426.3	2458	9.7	1.40	362.3
60%	4511	10.5	485.2	2567	9.3	1.53	412.5
63%	4902	11.9	547.2	2672	9.0	1.66	465.1
66%	5294	13.3	612.2	2772	8.6	1.79	520.4
69%	5687	14.8	680.8	2869	8.4	1.93	578.7
72%	6084	16.4	753.4	2965	8.1	2.06	640.4
75%	6487	18.0	831.0	3061	7.8	2.20	706.3
78%	6898	19.9	914.5	3159	7.5	2.34	777.3
81%	7323	21.8	1005.3	3260	7.3	2.49	854.5
84%	7767	24.0	1104.7	3364	7.0	2.64	939.0
87%	8235	26.4	1214.2	3474	6.8	2.81	1032.1
90%	8735	29.0	1334.9	3586	6.5	2.99	1134.7
100%	10624	38.5	1772.7	3870	6.0	3.60	1506.8

M8110 110KV+MSC 30×9.8 Load performance parameters

M8110 110KV+MSC 30×9.8 Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(Nm)	Power Output(W)	Temperature()
46V (12S LiPo)	MSC 30×9.8	33%	1468	2.3	106.8	1454	13.7	0.51	90.8	81.0
35%	1614	2.6	120.5	1525	13.4	0.56	102.5
37%	1787	3.0	137.2	1606	13.0	0.62	116.7
39%	1984	3.4	156.6	1692	12.7	0.68	133.1
42%	2313	4.1	190.4	1827	12.2	0.79	161.8
45%	2672	5.0	229.2	1962	11.7	0.91	194.9
48%	3051	5.9	273.0	2093	11.2	1.03	232.0
51%	3441	7.0	321.2	2219	10.7	1.16	273.0
54%	3837	8.1	373.6	2338	10.3	1.29	317.6
57%	4236	9.3	429.9	2452	9.9	1.42	365.4
60%	4634	10.6	489.8	2560	9.5	1.55	416.3
63%	5031	12.0	553.1	2665	9.1	1.68	470.2
66%	5427	13.5	620.0	2767	8.8	1.81	527.0
69%	5825	15.0	690.5	2866
