Hobbywing XRotor M4006 Industrial Drone Motor 330KV HP / 350KV UL, 6S LiPo, IP45/IPX5, 18N24P

Overview

Hobbywing XRotor M4006 is an industrial drone motor for industrial multirotor platforms, available in HP (330KV) and UL (350KV) versions. It is designed for high efficiency and long endurance, with a recommended thrust of 1 kg and a quadrotor takeoff weight of 4.0 kg.

For product selection or compatibility questions, contact https://rcdrone.top/ or [email protected].

Key Features

• HP & UL series: 330KV / 350KV options
• Spring + screw interlocking structure
• Integrated stator seat and back cover design (weight reduction and parts optimization)
• Main shaft tail uses snap ring + locking screw structure; anti-rust screws
• High-quality bearings (low friction torque, extending motor lifespan)
• High-performance iron core: 0.2mm low-loss silicon steel sheet punched
• Main shaft: high toughness carbide
• Outer rotor casing: 20# seamless steel tube with nickel electrophoresis design (conductivity and corrosion resistance)
• Shaft knurled design for tighter tolerances
• New magnetic circuit design to optimize anti-emotive force harmonics for a higher sine wave, matched with the ESC
• Exterior design with optimized fan ports; centrifugal fan heat dissipation structure to improve heat dissipation capacity

Specifications

Applications

• Industrial multirotor platforms (quadrotor reference provided)
• Recommended thrust (reference): 1 kg
• Quadrotor takeoff weight (reference): 4.0 kg

Recommended Application Combinations

Details

The XRotor M4006 industrial multirotor motor features a rugged black housing, braided leads, and 330KV/350KV variants for different prop and voltage setups.

The XRotor M4006 setup is recommended for around 1 kg thrust per motor on a quadrotor with about 4.0 kg takeoff weight.

The XRotor M4006 motor features a spring + screw interlocking structure on the shaft for a more secure assembly.

XRotor M-4006 recommended setups pair a 6S LiPo with MP16*5.4″ or MP17*5.8″ propellers and XRotor Pro-H40A-6S/H60A-6S ESCs for 0.61.0 kg thrust per rotor.

Hobbywing XRotor M4006 motor construction uses labeled high-quality bearings, a carbide main shaft, and a steel outer rotor casing.

The XRotor M4006 motor features an open-frame design with a knurled shaft for secure prop mounting.

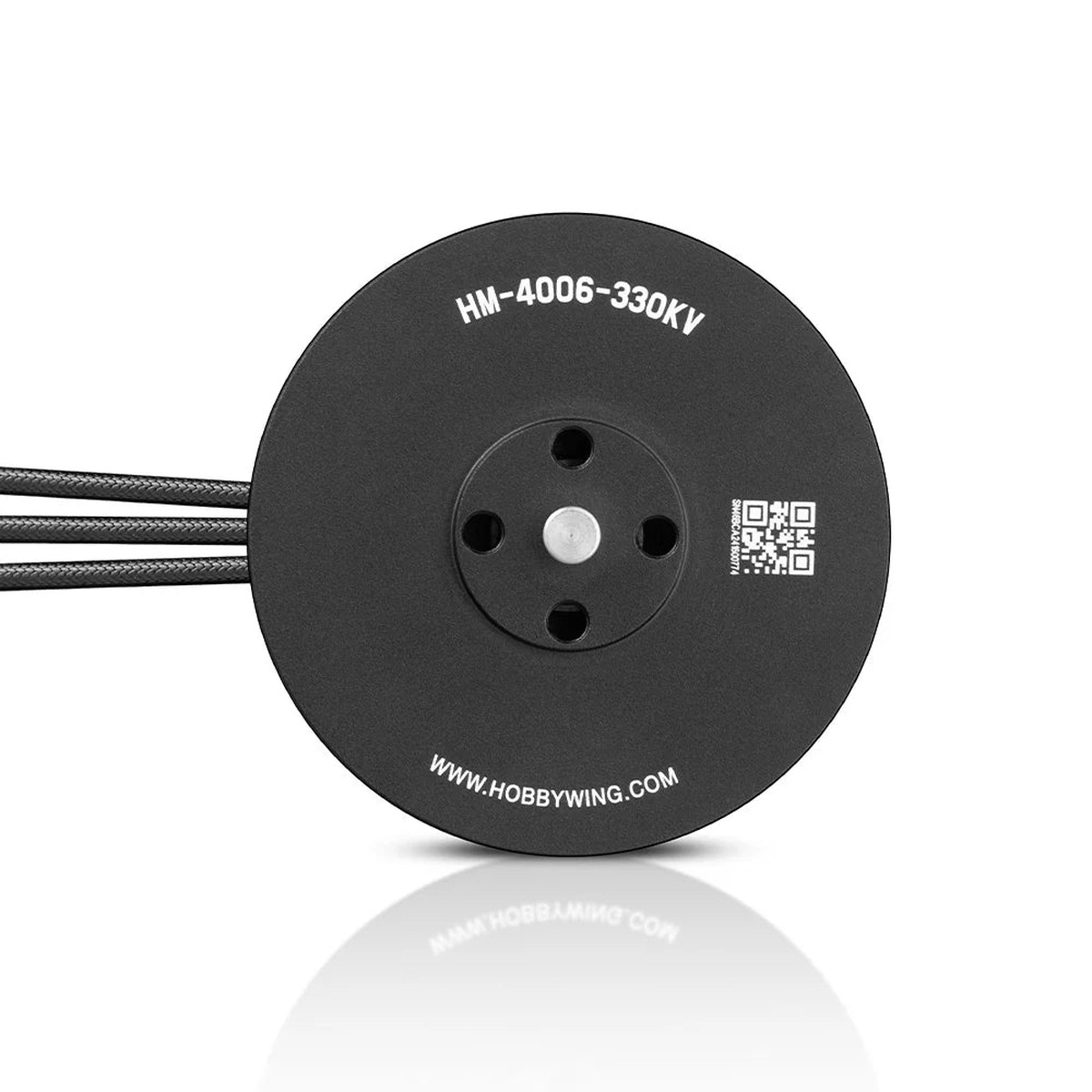

The XRotor M4006 330KV motor features a top propeller mount and compact, enclosed housing for straightforward installation on industrial drones.
