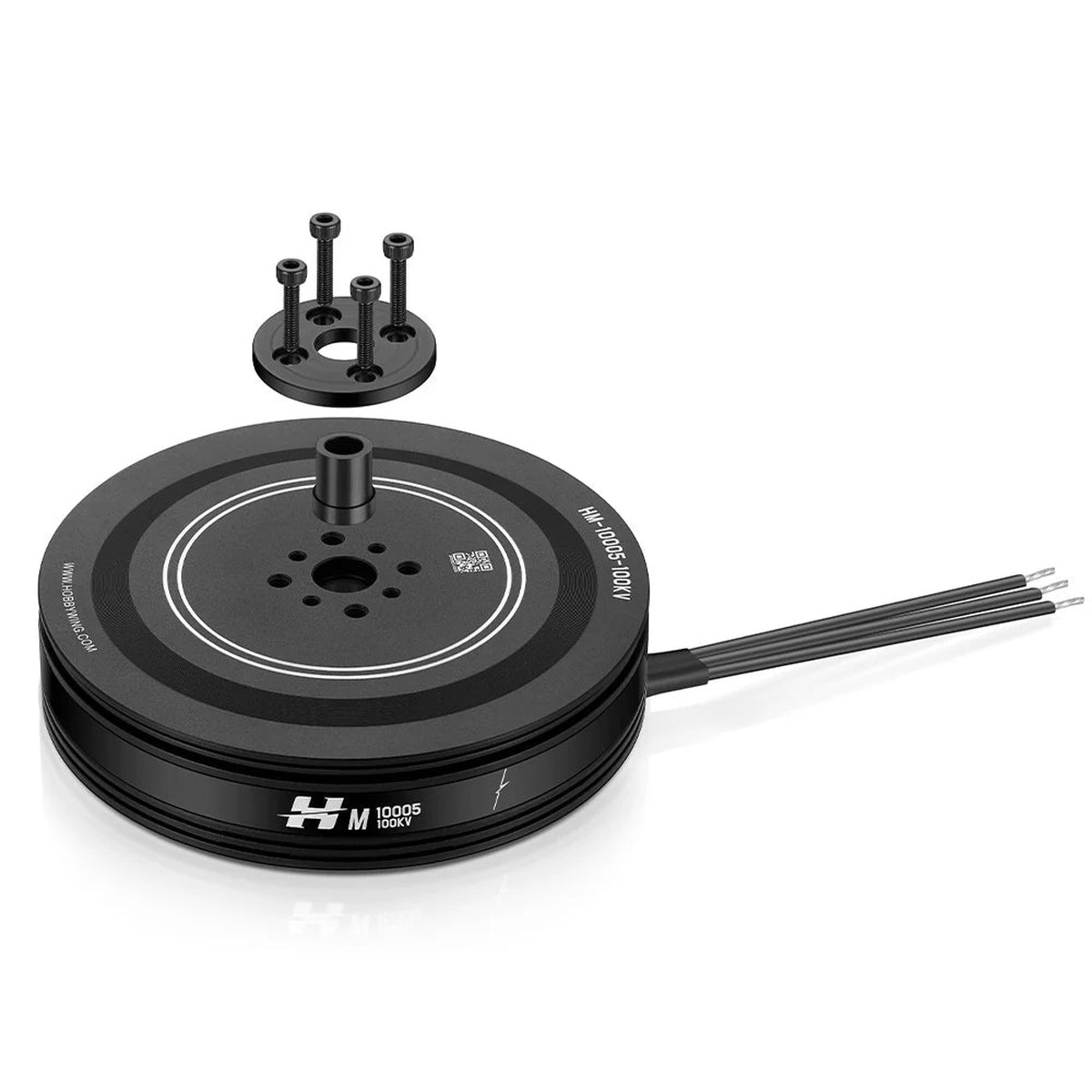

Name: Hobbywing XRotor M10005 Motor - H-Series Hyper Protected, 12S LiPo, 90KV/100KV, IP45/IPX5
SKU: WKA86610369877
Availability: InStock

Description
Reviews (0)

Overview

The Hobbywing XRotor M10005 motor is an industrial multirotor drone motor designed for high efficiency and long endurance. It uses an updated magnetic circuit design to optimize back-EMF harmonics, and a fully enclosed structure for dust and water protection (HP: IP45; UL: IPX5).

Key Features

H-series Type M HYPER PROTECTED design concept
Fully enclosed structure for dust and water protection (HP: IP45; UL: IPX5)
36 slots / 42 poles
500V AC withstand voltage test (winding insulation)
High-quality waterproof bearings

For product selection and setup support, contact [email protected] or visit https://rcdrone.top/.

Specifications

Item	M10005 HP (HM-10005-100KV-HP)	M10005 UL (HM-10005-90KV-UL)
Motor size	107.1*H24.1mm	107.1*H24mm
Stator size	100mm	100mm
Stator material / process	Silicon steel sheet; anti-rust treatment; 180C high-temp coating	Silicon steel sheet; anti-rust treatment; 180C high-temp coating
Enamel wire grade	200C	200C
Magnet temperature rating	180C	180C
Winding insulation test	500V AC withstand voltage test	500V AC withstand voltage test
Dust / water protection	IP45	IPX5
Slot/pole	36 slots / 42 poles	36 slots / 42 poles
Dynamic balance standard	10mg	10mg
Bearing type	Waterproof bearing	Waterproof bearing
Output shaft diameter	10mm	10mm
Propeller mounting hole size	4M3@D20mm & 4M4@D23mm	4M3@D20mm & 4M4@D23mm
Motor mounting hole size	4M4@D32mm	4M4@D32mm
KV	100	90
Rated voltage	LiPo-12S	LiPo-12S
No-load current	1A	1A
Max current (non-enclosed, ambient temp 25C)	41A	28A
Max power	1875W	1300W
Max thrust	11.6kg	9.5kg
Phase resistance	104m	132m
Lead type	Direct output wires	Direct output wires
Lead length	100 mm	100 mm
Motor weight (incl. wires)	327 g	287 g
Single-axis thrust (application range)	3.54.5 kg	3.54.5 kg
Four-axis thrust / max takeoff weight	1418 kg	1418 kg

Recommended Configuration

Item	Recommendation
ESC	XRotor Pro-H60A-12S
Propeller (HP)	Carbon Fiber ML30 9.8″ / GP32 10.5″
Propeller (UL)	Carbon Fiber GP32*10.5″
Battery voltage	12S LiPo

Details

The XRotor M10005 motor drawing provides key mounting dimensions, including a 107.1 body and 4-M4 bolt pattern, to help plan fitment.

Hobbywing XRotor M10005 motors are offered in HP and UL versions with 100/90KV options, 12S LiPo support, and IP45/IPX5 protection ratings.

M10005 HP performance data with an ML309.8 prop at 46V (12S LiPo) lists throttle steps with thrust, current draw, RPM, efficiency, torque, and motor temperature (49C).

Hobbywing XRotor M10005 load-test data lists RPM, current (A), input power (W), efficiency (g/W), and torque across throttle points on 46V (12S LiPo) with a GP3210.5 prop.

M10005 load test data lists throttle, thrust, current, input power, RPM, efficiency, torque, and motor temperature using a GP3210.5 prop at 46V (12S LiPo).
