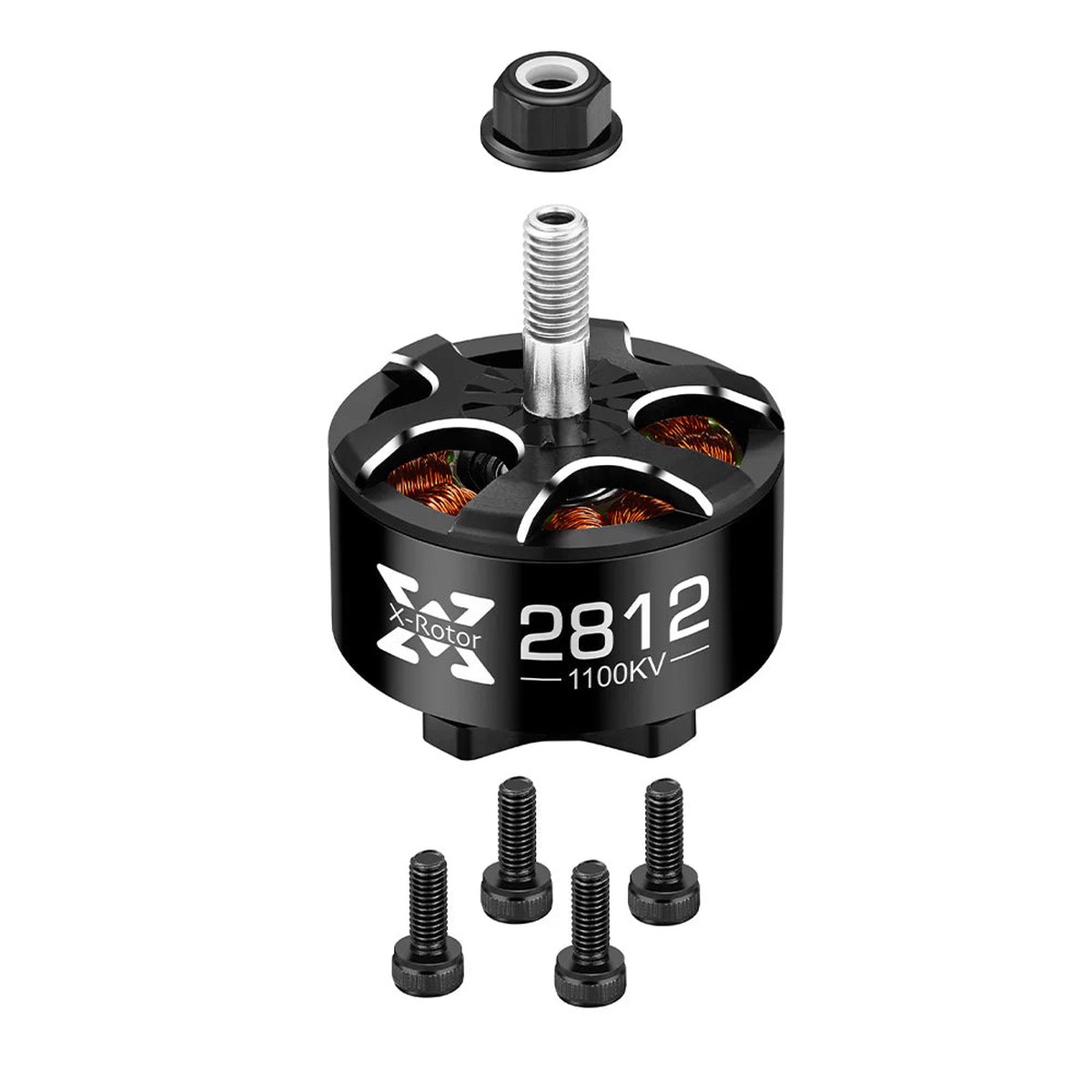

Hobbywing XRotor 2812 FPV Motor 900KV/1100KV 4-6S, 12N14P, 200-250W Rated, 83g, Suitable for 8-10 Inch FPV Drone

Overview

The Hobbywing XRotor FPV 2812 is an FPV Motor offered in 900KV and 1100KV variants for 4-6S setups. It features a cooling structure for heat dissipation, a grooved propeller mount design to help prevent propeller slipping, and component materials noted as N52 magnetic tiles, 0.2mm silicon steel sheets, and high-temperature resistant enameled wire.

Key Features

• Cooling structure designed to improve heat dissipation performance; stated maximum running time under full load extended by more than 40% versus motors of the same specifications from other brands.
• Heavy-load efficiency stated to be approximately more than 5% higher compared to motors of the same specifications from other brands (efficiency vs thrust comparison shown for XRotor-2812-900KV-HQ9x5x3-CCW-24V).
• New tooth groove anti-slip design: grooved propeller mount designed to help prevent the propeller from slipping.
• Material notes: N52 strong magnetic tiles; high-performance 0.2mm silicon steel sheets; high-temperature resistant enameled wire (200C specified; 220C also referenced in feature graphic).
• Charted comparison (2812-900KV): maximum test current 38 A and maximum continuous running time with full throttle 40 s (comparison shown against a brand of motor 2812-900KV at 37.7 A and 7 s).

Customer service: https://rcdrone.top/ or [email protected]

Specifications

Recommended Props/ESCs

Details

The vented rotor design leaves the windings exposed for improved airflow and cooling during sustained FPV use.

The XRotor 2812 motor is rated for over 5% better heavy-load efficiency compared with similar 2812 900KV setups.

The XRotor 2812 motor uses a grooved propeller mount design to help reduce prop slippage during flight.

The XRotor 2812-900KV motor is rated in the chart at 38A maximum test current and 40 seconds of full-throttle continuous running time.
