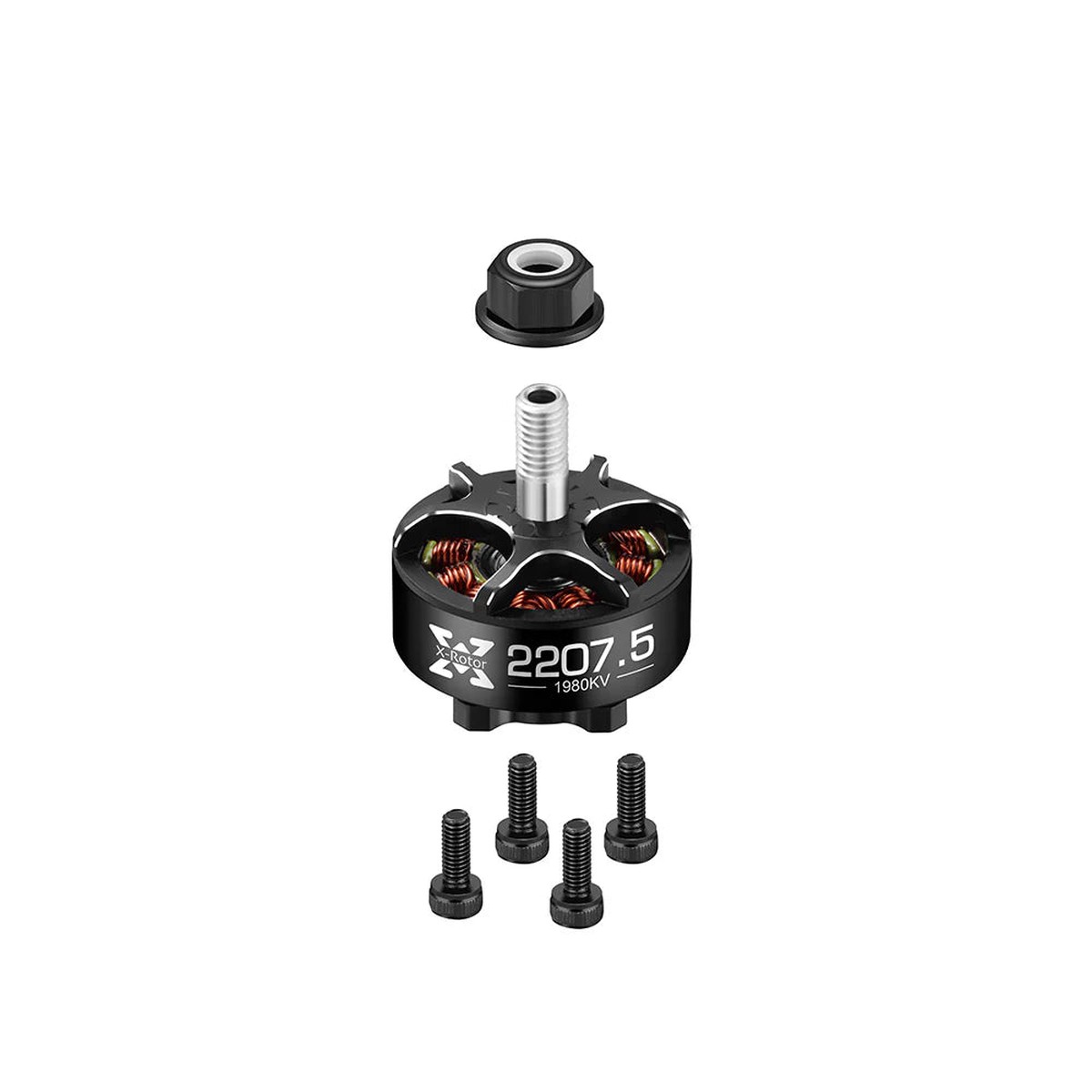

The Hobbywing XRotor 2207.5SL is a 6S brushless motor for 5 inch FPV quadcopters, offered in 1780KV and 1980KV options.

Key Features

Excellent linearity and high efficiency.
Electromagnetic optimization for more torque at lower RPM; linear throttle response improves maneuverability across the throttle range.
Efficient single-strand winding for smoother throttle response and enhanced thermal dissipation.
Self-cooling propeller mount design to dissipate coil heat during operation, supporting lower motor temperatures.
Anti-slip tooth structure on the propeller mount to help prevent propeller slippage and rotation loss.
Premium materials: 0.2mm thick first-tier stator core laminations, 220C R-grade high-temperature enameled wire, and strong arc-shaped magnets.
Dual KV tuning: 1780KV for high-torque control; 1980KV for ultra-fast response.

Customer service: https:/// or support@

Parameter	1980KV	1780KV
KV	1980KV	1780KV
LiPo Cells (LiPo)	6S	6S
No-Load Current	3.2A/24V	2.7A/24V
Maximum current (Non-hermetic Ambient Temperature <= 25C)	49A/12s	41A/3s
Rated Power Output	150W	130W
Max Power	1166W/12s	988W/3s
Maximum Thrust	1868g(HQ-5037)	1827g(GF-51477)
Motor Weight	38g (With wire)	38g (With wire)
Motor Size	Dia 28 x H19.9mm	Dia 28 x H19.9mm
Slot/Pole	12N14P	12N14P
Wire Size	20AWG	20AWG
Wire Length	150mm	150mm
Enamelled Wire Insulation Class	220C High temperature Resistant, C Class insulation	220C High temperature Resistant, C Class insulation
Internal Resistance	65mohm	76mohm
Shaft Diameter	Dia 5mm + M5	Dia 5mm + M5
Shaft Length	12mm	12mm
Screw Diameter / Thread	Dia 16mm – 4 x M3	Dia 16mm – 4 x M3
