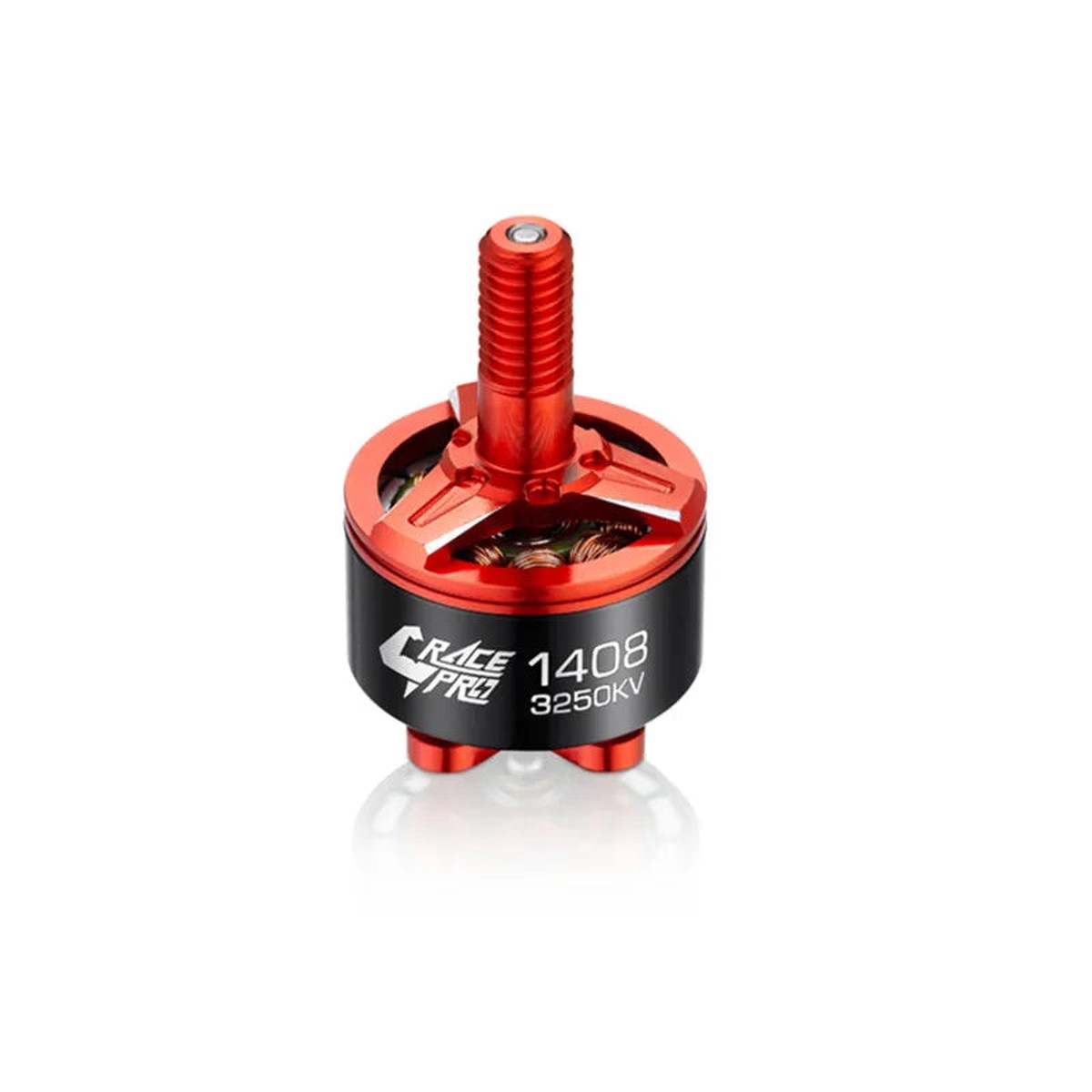

Name: Hobbywing XRotor 1408 Race Pro 4S Brushless Motor 3250KV for 3 Inch FPV Racing Drones
SKU: WKA86610369349
Availability: InStock

Description
Reviews (0)

Overview

The Hobbywing XRotor 1408 Race Pro 3250KV Brushless Motor is engineered for competitive FPV racing drones using 3-inch propellers and 4S LiPo batteries. Built for high-efficiency performance with responsive throttle control, this motor features high-precision components including 9 stator arms, 12 rotor poles, and 118m low resistance, ensuring both power and reliability during high-G maneuvers.

Key Features

Optimized for 4S LiPo setups
Delivers up to 154.6W max continuous power (30s)
Lightweight at 15.8g (excluding wires)
Suitable for high-speed 3″ FPV racing builds
Designed with 5mm shaft and 19mm rotor diameter
Durable and efficient with 0.7A no-load current @11.1V

Specifications

Parameter	Value
KV Rating	3250KV
Stator Diameter	14mm
Stator Thickness	8mm
No. of Stator Arms	9S
No. of Rotor Poles	12P
No-load Current @11.1V	0.7A
Motor Resistance	118m
Max Continuous Current (30s)	9.61A
Max Continuous Power (30s)	154.6W
Weight (Excluding Cable)	15.8g
Rotor Diameter	19mm
Shaft Diameter	5mm
Body Length	16.3mm
Overall Shaft Length	29.3mm
Supported LiPo Voltage	4S
Recommended ESC	1215A
Recommended Propeller	3 inch
Wire Size	24AWG / 80mm

Motor, Propeller, Voltage, Throttle, Current, Thrust, Efficiency, Speed, Power details provided.

XRotor Race Pro motor with Azure Power 3060, performance metrics include RPM, voltage, current, and efficiency across various settings.

XRotor 1408 Race Pro 4S motor: 3250KV, 14mm stator, 9S arms, 12P poles. Max 9.61A current, 154.6W power. Weighs 15.8g, 19mm rotor, 5mm shaft. Uses 4S Lipo, 12-15A ESC, 3-inch prop.
