Name: Hobbywing XeRun XR10 Stock Spec 2S Combo - XeRun V10 G4 Spec Motor with XeRun XR10 Stock Spec ESC (2-3S) for RC Car Truck Vieche
SKU: WKA86610370239
Availability: InStock

Description
Reviews (0)

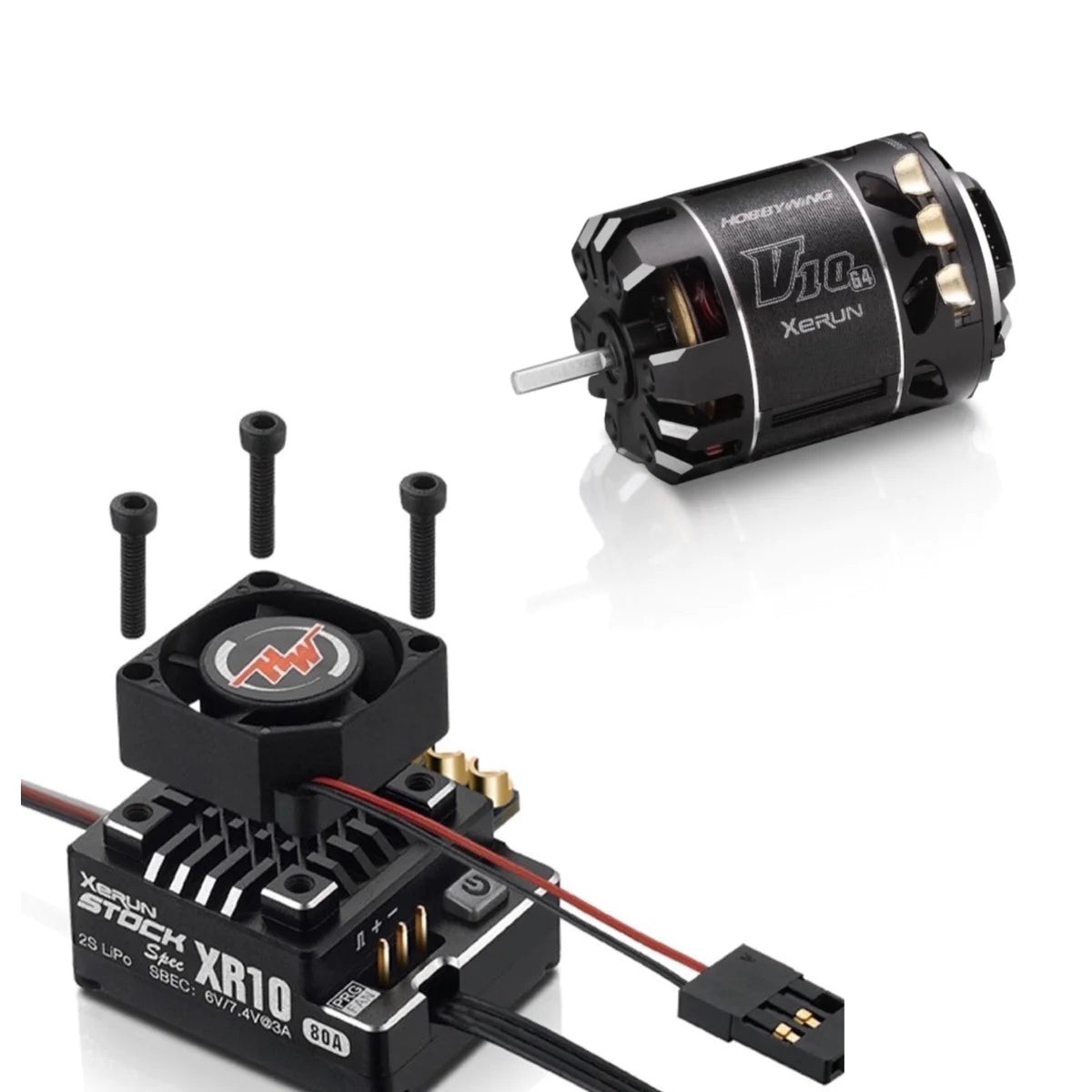

Hobbywing XeRun XR10 Stock Spec 2S Combo

Stock Spec Combo

ULTRA light weight -’28g’

2S LiPo
Smallest Size & Lightest Weight in the world
For Stock Spec Races

ROAR approvedfor ROAR SPEC racing!

Bundle:

1xXeRunXR10 Stock Spec ESC (2-3S)
Depending on Combo Selected1x V10 G4 Spec drone electric motor
1x Bonus item

p/n	Combo name
38020337	COMBO K -XR10 STOCK 2S & V10G4(13.5T)
38020338	COMBO L -XR10 STOCK 2S & V10G4(17.5T)
38020339	COMBO M -XR10 STOCK 2S & V10G4(21.5T)
38020310	COMBO N -XR10 STOCK 2S & V10 G3R (25.5T)

Bottomline

World’s Smallest footprint &Lightweight ESC ever. “28g”

Innovative Double-switch Design:Built-in Electronic Switch, long life, and high reliability saves space on the chassis + Switch w/ extended wire (option)

Programming/Upgrading/Data Reading Wirelessly:Integrated Data logger can record the maximum temperature of ESC and motor as well as the maximum RPM. WiFi Express Module or LCD Programming box can be used to check data easily in the pits. External Programming Port (EPP) is easy to connect and functions as a power port for an additional fan.

Adjustable Throttle & Brake PWM Frequencies:Independent and adjustable throttle & brake PWM frequencies guarantee precise and accuratethrottle and brake control for all classes of competitions (esp. the Stock class).

Super Internal BEC:The built-in switch mode BEC with a maximum outputof 6A and voltage adjustable between 6V and 7.4Vallow the user to use various high voltage servos.

Multi Protection Functions makes running your ESC safe with ESC and Motor overheat protection, low voltage cutoff and throttle signal loss protection.

Easily programmed with the OTA programmer,Multifunction LCD Program Box, and USB Link Software.

	XR10 Stock Spec ESC
	30112401
Current	Continuous: 80A Burst: 380A
Battery	5-7 cells NiMH/NiCd 2S LiPo
Built-in BEC	6V /7.4V(switch mode)
Motor Supported	Sensored and sensorless brushless motors
Suitable Motor	3650 Motors 1/10 Touring Cars 10.5T, 1/10 Buggy13.5T
Application	STOCK class of 1/10th Touring Car & Buggy Racing
Cooling Fan	6V – 7.4V (20x20x8mm)
Wires	14AWG-200mm
Size	31.5×25.6×16.1mm
Weight**	28g
For7-9 cells NiMH/NiCd or 3S LiPo, the standard cooling fan must be changed to 12V high voltage fan. * Weight is w/o wires, cooling fan

Download

For detail information,please read the user manual.

User Manual

G4SpecMotors (13.5-21.5T)

Specifications:

p/n	T	KV	LiPo S	()	No-load Current (A)	Max. Output Power (W)	Current @Max. Output Power (A)	Stock Rotor	Weight (g)
30401140	13.5	3950	2-3	0.021	4.5A	322	70	7-12.5*25.2-HUS	149
30401141	17.5	3020	2-3	0.036	3.7A	234	51	7-12.5*25.2-HUS	149
30401142	21.5	2500	2-3	0.055	3.0A	173	38	7-12.5*25.2-GUS	148

Recommended Gear ratio:

Stock Class	13.5T	17.5T	21.5T
TC (Small track)	4.7 : 1	4.0 : 1	3.5 : 1
TC (large Track)	4.0 : 1	3.5 : 1	3.0 : 1
TC 1/12th	55mm	66mm	80mm
2WD Off-road	7.6 : 1	6.6 : 1	NA
4WD Off-road	8.3 : 1	8.3 : 1	N/A
