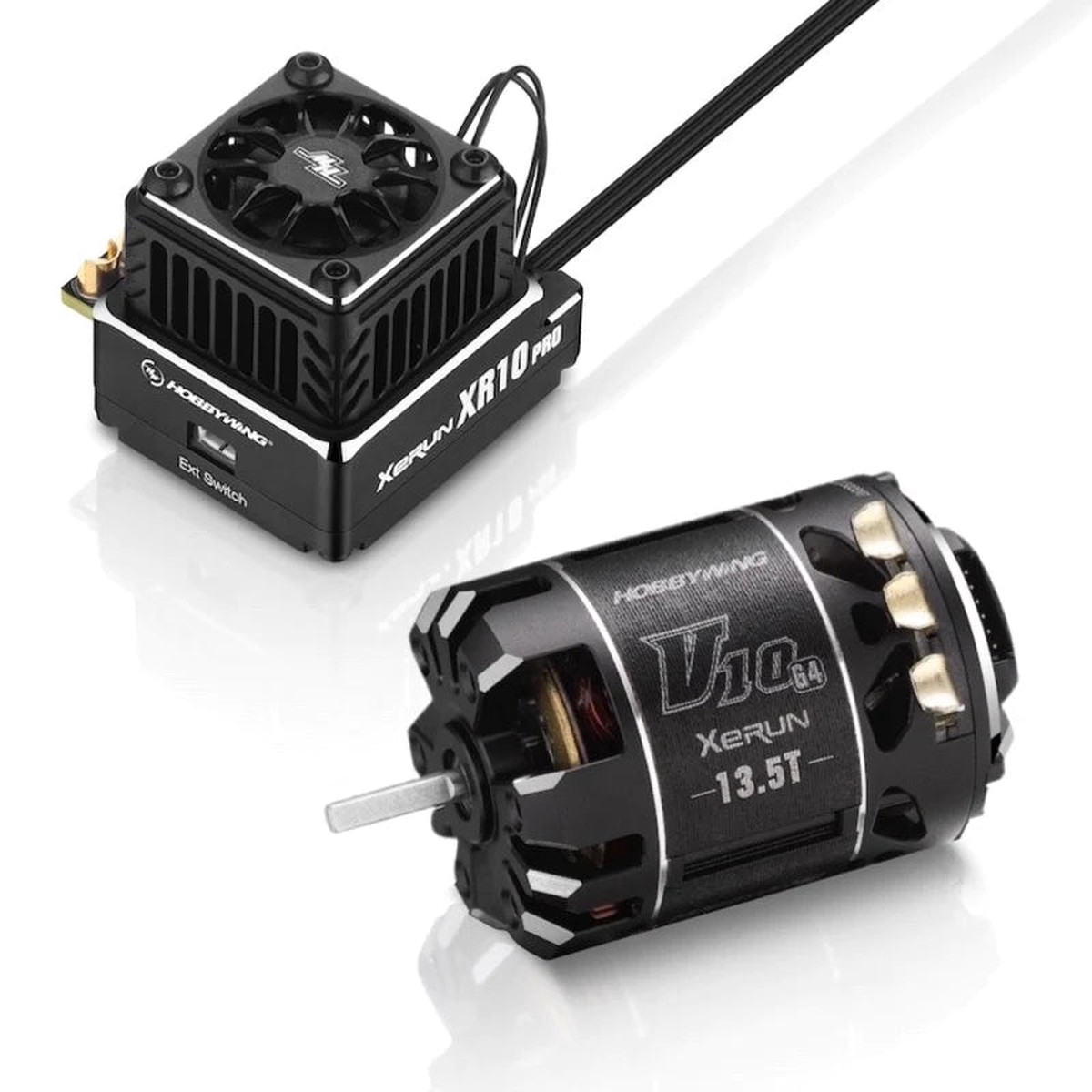

Name: Hobbywing XERUN XR10 Pro ESC G2S Combo - XERUN V10 G3 G4 Competition Brushless Motor with XR10 Pro G2S ESC for RC Car Trucks
SKU: WKA86610369392
Availability: InStock

Description
Reviews (0)

Hobbywing XERUN XR10 Pro ESC G2S Combo

What’s inthe box?

1x XR10 Pro G2S ESC
Depending on the Motor Selection
1x XERUN V10 Competition Brushless Motor
1xBonus item(s)
(2) Input wires & (3) Output wires -PRE-SOLDERED-
(2) x cooling fan (comes with one backup fan)
Dual capacitors
Decals
Parts: heat tubes, double tape, nylon cable zap traps

Modified Editions

Combo Name	P/N	Motor included in Combo
XR10Pro-B	38020325	V10 4.5TG3
XR10Pro-C	38020326	V105TG3
XR10Pro-D	38020327	V105.5TG3
XR10Pro-E	38020328	V10 6TG3
XR10Pro-F	38020329	V10 6.5TG3
XR10Pro-G	38020330	V107TG3
XR10Pro-H	38020331	V107.5TG3
XR10Pro-J	38020333	V10 8.5TG3

Spec ClassEditions

Combo Name	P/N	Motor included in Spec Combo
XR10Pro-K	38020334	V10 13.5T G4
XR10Pro-L	38020335	V10 17.5T G4
XR10Pro-M	38020336	XV10 21.5T G4

XeRun XR10 Pro G2S ESC

Edition package	Stealth
P/N	30112613
Wires gauge: (2)power wires & (3)Phase wires	13 AWG (Lightweight Ultra-flex)
FFD Technology*	Yes
Weight W/O wires	52.64g

*FFD=Frameless Fan Design (Patented)

User’s Manual

Learn more >

Modified motors (4.5T-10.5T / 25.5T)

2 POLE Super High-Efficiency brushless motor
Diameter/Length (mm):=35.9mm L=51.2mm
Shaft Diameter/ Length (mm):=3.17mm L=13.3mm (25.5T L=13mm)

Specmotors (13.5T-21.5T)

2 POLE Super High-Efficiency brushless motor
Diameter/Length (mm):=35.8mm (1.41in) L=51.4mm (2.024in)
Shaft Diameter/ Length (mm):=3.175mm (0.125in) L=13.9mm (0.547in)

p/n	V10	T	kv	LiPo	()	No-load Current (A)	Max. Output Power (W)	Current @Max. Output Power (A)	Stock Rotor	Weight (g)
30401102	G3	4.5	7340	2S	0.0029	6.7	457	122	5-12.3	163
30401116	G3	5	6500	2S	0.0035	5.5	443	118	5-12.3	159
30401107	G3	5.5	5900	2S	0.0041	5	426	115	5-12.5	163
30401117	G3	6	5500	2S	0.0048	4.5	415	113	5-12.5	162
30401109	G3	6.5	5120	2S	0.0056	3.9	402	113	5-12.5	164
30401118	G3	7	4800	2S	0.0065	3.5	364	106	5-12.5	161
30401110	G3	7.5	4420	2S	0.0074	3.3	346	100	5-12.5	161
30401119	G3	8	4200	2S	0.0089	3.0	320	88	5-12.5	160
30401111	G3	8.5	3970	2S	0.0097	2.8	298	84	5-12.5	163
30401140	G4	13.5	3950	2-3S	0.021	4.5A	322	70	7-12.5*25.2-HUS	149
30401141	G4	17.5	3020	2-3S	0.036	3.7A	234	51	7-12.5*25.2-HUS	149
30401142	G4	21.5	2500	2-3S	0.055	3.0A	173	38	7-12.5*25.2-GUS	148
30401133	G3	25.5	1780	2-3	0.102	2.1	95	23	7-12.3 -U	145
