Hobbywing XeRun 2848 Sensored Brushless Motor for 1/14 Scale Heavy-Duty RC Cars (2800/4000/4600KV)

Overview

The Hobbywing XeRun 2848 Sensored Brushless Motor is designed for heavy-duty 1/14 scale applications (also listed for 1/12 scale). It is available in 2800KV / 4000KV / 4600KV options and supports mechanical endbell timing for CW or CCW rotation with an adjustable range of 20-40.

Using a 0.1 Nm load test comparison (same specifications motors), the maximum efficiency is stated as 6% higher, with internal temperature approximately 20C lower and external temperature 10C lower. The motor protection level is IP5X for dust resistance in dusty track environments.

Key Features

• High power output for heavy-duty 1/14 scale applications; power output is stated as increased by 15% when compared to motors of equal size and specifications.
• High efficiency and low temperature rise (0.1 Nm load test: max efficiency 6% higher; internal temperature ~20C lower; external temperature 10C lower).
• IP5X protection level for dustproof performance in off-road dusty track environments.
• Mechanical endbell timing: CW/CCW rotation; adjustable between 20-40.
• Low cogging moment for smooth and linear low-speed throttle response (stated as about 1/4 of popular brands).
• Modular design for easier disassembly, cleaning, and maintenance.
• Materials and design notes: iron core, high-precision grade bearings, high temperature resistant wire (200C), high temperature resistant rotor (180C), widened U-shaped gold-plated curved copper bars with increased gap for easier soldering.

Specifications

Model Variants

Mechanical Dimensions (Drawing)

For product support, contact https://rcdrone.top/ or [email protected].

Applications

• Heavy-duty 1/14 scale applications
• 1/14th and 1/12th on-road and off-road RC vehicles

Manuals

• User’s Manual: XeRun 2848 brushless motor.pdf
• Product brochure: XeRun 2848 Leaflet.pdf

Details

The XeRun 2848 sensored brushless motor uses a 28.5mm can diameter, 48mm body length, and M3 mounting pattern for fitment planning.

Output power versus torque curves compare the XeRun 2848 4000KV motor with another 2848 8.5T unit.

The Hobbywing XeRun 2848 sensored brushless motor is designed for heavy-duty 1/14-scale RC applications.

Hobbywing highlights a 0.1Nm load test comparing same-spec motors, citing up to 6% higher maximum efficiency and lower internal/external temperatures.

The XeRun 2848 sensored brushless motor features an IP5X protection level for excellent dust resistance in off-road conditions.

The XeRun 2848 sensored brushless motor features mechanical endbell timing adjustment from 2040 for CW or CCW rotation setups.

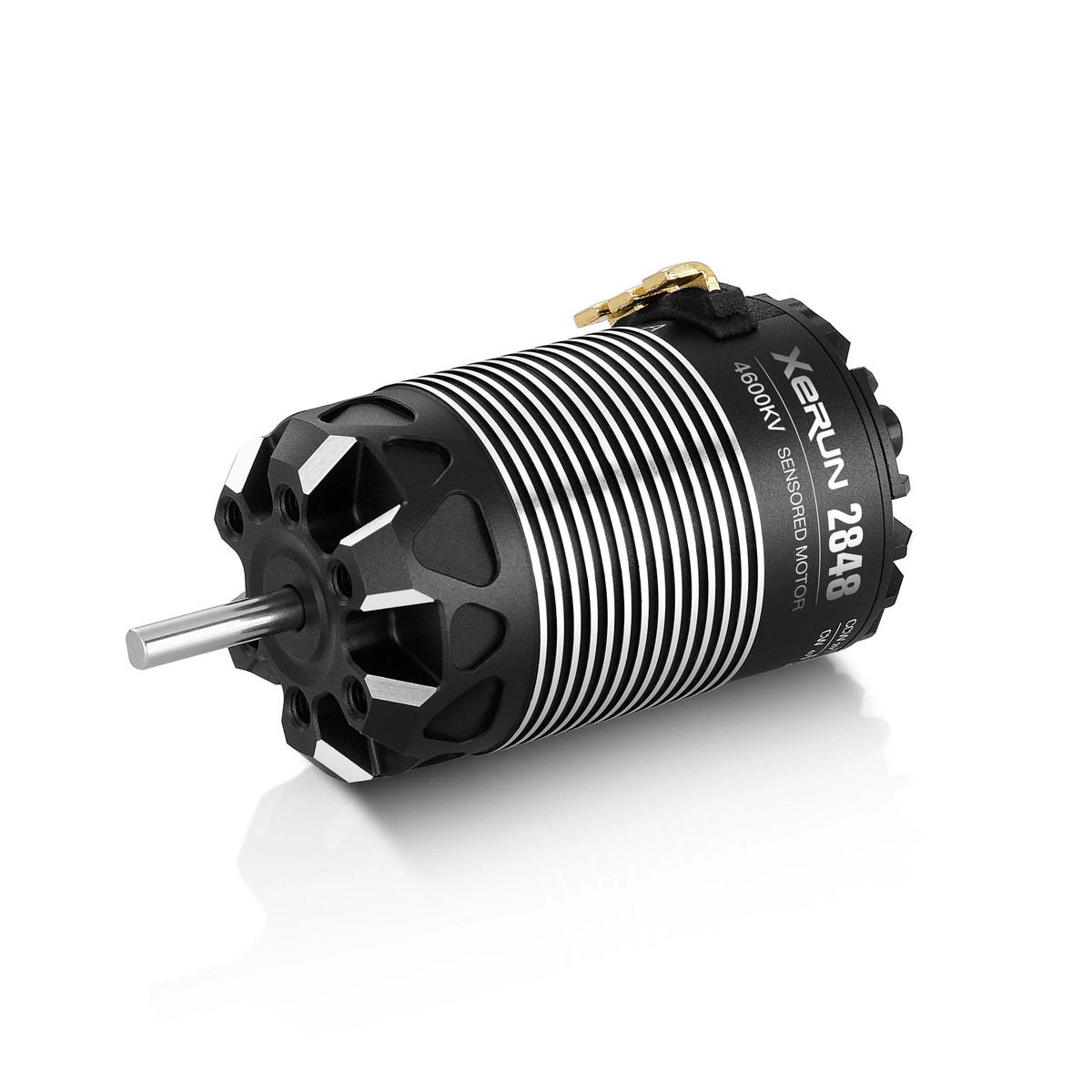

The Hobbywing XeRun 2848 sensored brushless motor features a ribbed aluminum can, 4600KV marking, and solder tabs for clean wiring.

The XeRun 2848 motor uses a modular design with a removable rotor and rear end bell for easier cleaning and maintenance.

The Hobbywing XeRun 2848 sensored brushless motor features an iron core, high-precision bearings, and high-temperature resistant wire (200C) with U-shaped gold-plated curved copper bars for easier soldering.

The XeRun 2848 sensored brushless motor is illustrated with its stator, rotor, rear end bell, and two M3 x 8mm fastening screws.
