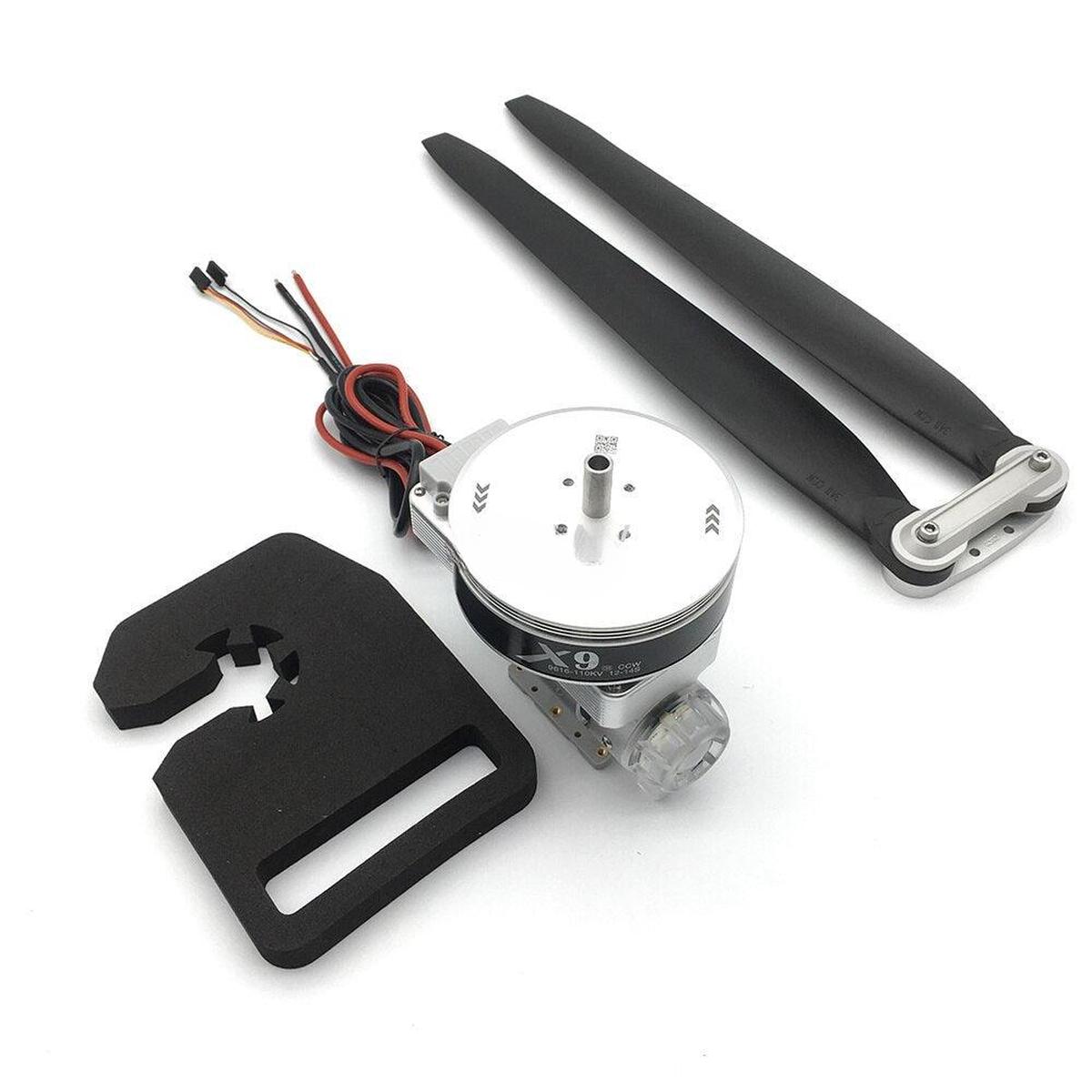

Hobbywing X9 Power System – 9616 110KV 12-14S with ESC+Propeller+Motor ComBo for 10L16L/22L multirotor Agriculture Drone

Hobbywing X9 Power System SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: power

Tool Supplies: Assembled class

Technical parameters: Value 2

Size: x9

Remote Control Peripherals/Devices: drone brushless motor

Recommend Age: 12+y

RC Parts & Accs: Engines

Quantity: 1 pcs

Origin: Mainland China

Model Number: X9

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Hobbywing X9: Suitable for 4-Axis 16L / 6-Axis 25L Agriculture Drone;

Hobbywing X9-Plus: Suitable for 4-Axis 20L / 6-Axis 30L Agriculture Drone;

Dear. There are two versions of this Hobbywing X9 power set. The voltage of the new version is 12-14S. The old version is 6-12S. The new version and the old version cannot be used together. Please pay attention to the distinction. Thank you

Specifications:Technical ParametersMaximum pulling force: 21.5KG/axisRecommended battery: 12S lipoRecommended takeoff weight (single axis): 7.0-9.5KGWeight (including propeller) 1450gDimensions: 151.2×133.3mm
MotorStator size: 96x16mmKV value: 110rpm/VInternal resistance: 0.031BEMaximum current: 100AMotor outer diameter: 103.5mmPaddle clamp installation size: 25mm-4xM3; 31mm-4xM3Bearing: imported ball bearing (waterproof)Applicable carbon tube outer diameter: 40mm
ESCModel: X-rotor/120A-FOCBattery: 12-14SlipoPWM input signal level: 3.3V/5VWorking pulse width: 1100s-1940s (curing, calibration is not supported)Maximum allowable voltage: 52.2VMaximum allowable current (continuous): 120AMaximum allowable peak current (3 seconds): 150ABEC: none
propeller:Diameter / pitch: 34×11 inch

Hobbywing’s X9 Power System (9616-110KV) is a combo package designed specifically for multirotor agriculture drones. The kit includes an ESC, propeller, and motor that can support 10-22L aircraft. It features a 12S LiPo battery with a capacity range of 6-12S, as well as a PWM controller with a frequency range of 93-158F. Other specifications include a weight of approximately 23kg, a thrust rating of 1940ps, and a voltage range of 2.22V. The motor has a current rating of 120A and a power output of 96*16A. Additional features include a propeller diameter of 11 inches, a pitch angle of 30 degrees, and a thrust-to-weight ratio of approximately 3:1.

Hobbywing X9 Power System Combo – Propulsion System for Multirotor Agriculture Drone, Includes: ESC, Motor, and Propeller (22L, suitable for 10-16L multi-rotors), powered by 12S LiPo battery or compatible with 6-12S Lipo battery, with a maximum weight capacity of 93kg.

Hobbywing’s X9 Power System (9616) features an 11,000 KV motor with a 12-14 series brushless ESC, suitable for agricultural drones and multirotors.
