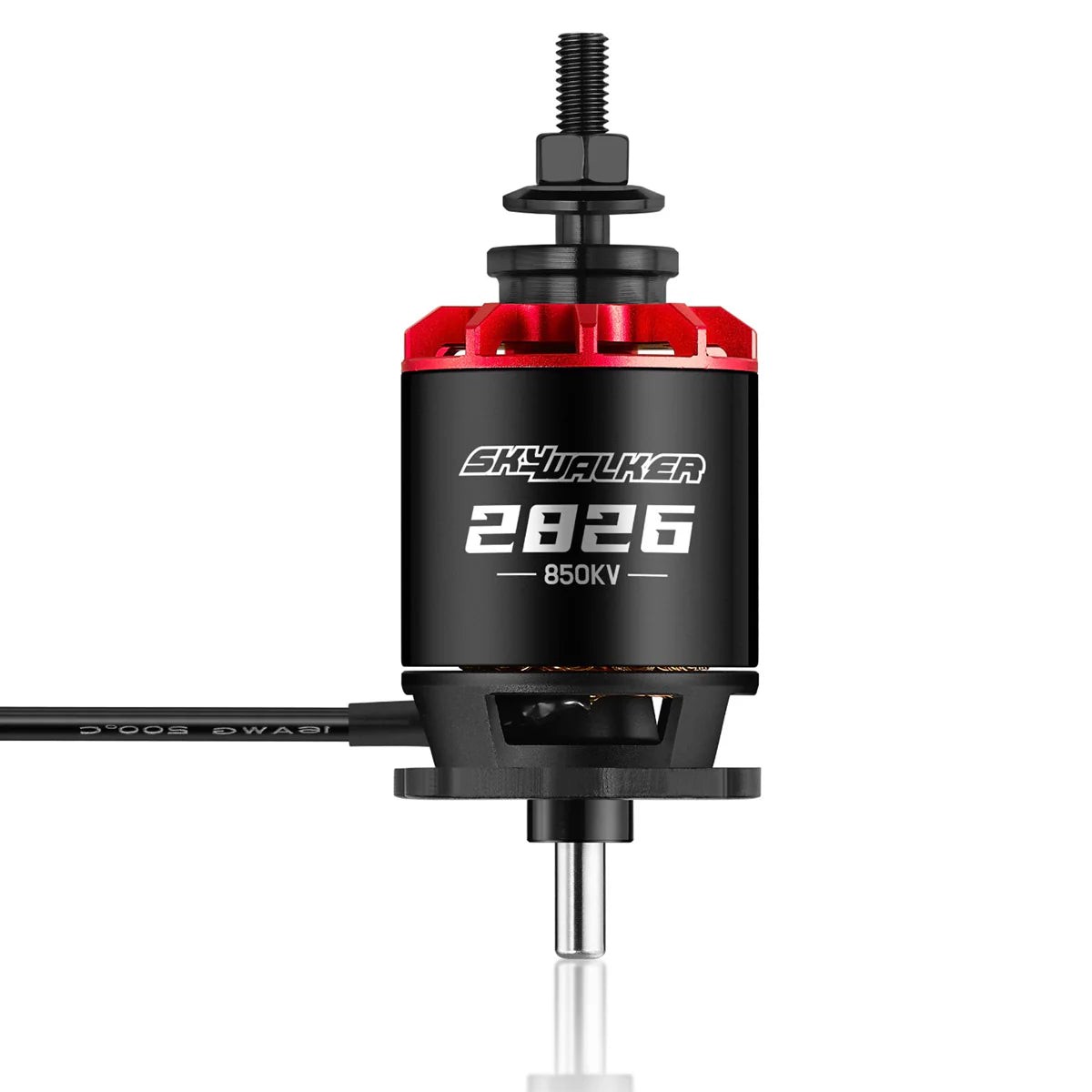

Name: Hobbywing Skywalker 2826 SL Fixed Wing Airplane Brushless Motor (3-4S, 540KV/850KV/1100KV)
SKU: WKA86610369299
Availability: InStock

Description
Reviews (0)

Overview

The Hobbywing Skywalker 2826 SL is a fixed wing airplane brushless motor with KV options of 540KV / 850KV / 1100KV. The 2814, 2820, and 2826 fixed wing motors are newly designed with a high maximum pulling force of 4785g (2826 540KV, 22.2V, 14x6E paddles). These motors are ideal for 800-2300g 3D fixed wings, gliders, sports fixed wings, and other applications where a strong pulling force is needed.

Key Features

Big power for a wide range of applications: Suitable for 800-2300g 3D fixed wings, gliders, and sport fixed wings (max pulling force 4785g in stated test condition).
Large hollow design + self-dissipating top cover: Enhances cooling capacity and prolongs motor lifespan.
S.V.C Technology / higher dynamic balance: High-quality bearing and high-precision CNC machining for extremely low rotor dynamic balance to reduce vibration and improve smooth operation.
Premium materials: JNEH1200 silicon steel sheet (0.2mm thick) for lower iron loss; N48 strong magnetic arc magnetic steel design for maximum torque output; 180C high temperature resistant enameled wire; silicone wire outlet for easier routing than traditional straight outlet silicone wire.
Anti-loosening rotor design: After installing the copper pad and retainer spring on the core of the rotor shaft, the bushing and set screw help secure the rotor and improve reliability.

For selection and compatibility support (battery/ESC/propeller), contact [email protected] or visit https://rcdrone.top/.

Specifications

Model	Skywalker 2826 SL
KV Options (from test chart)	540KV / 850KV / 1100KV
Recommended Battery (850KV spec sheet)	34S LiPo
No-load Current (850KV)	2.55A @ 14.8V
Maximum Continuous Current (850KV)	69A / 2min 11s
Maximum Continuous Power (850KV)	1006.5W / 1min 49s
Motor Size	35.1 66 mm
Motor Diameter (drawing)	35.10
Overall Length (drawing)	66
Additional Length Dimensions (drawing)	48 / 46 / 18
Shaft Diameter	5 mm
Shaft Dimensions (drawing)	10.50 / 5
Clip Mounting Hole Thread	15 mm 3 M2.5
Clip Mount (drawing)	15; 3-M2.5 EQS
Base Thread	19 mm 2 M3 / 25 mm 2 M3
Base Mount Marking (drawing)	4-M3
Motor Weight	176.2 g
Lead Length (drawing)	110
Rotation Marking (drawing)	C.C.W
Recommended ESC	Skywalker-V2 80A (spec sheet) / Skywalker 6080A (test chart)
Recommended Propellers (850KV spec sheet)	4S: 126E / 136.5E 3S: 146E / 156E / 158E

Thrust Test Data

Columns: Voltage / Propeller / Max Current (A) / Max Thrust (g) / Efficiency at Max Thrust (g/W) / Torque at Max Thrust (Nm)
Recommended ESC in chart: SKYWALKER 6080A

540KV (22.2V / 6S)

Voltage	Propeller	Max Current (A)	Max Thrust (g)	Efficiency (g/W)	Torque (Nm)
22.2V (6S)	APC 126	36.78	3525	4.31	0.62
22.2V (6S)	APC 136.5	44.79	4183	4.20	0.76
22.2V (6S)	APC 146	49.75	4785	4.32	0.86

850KV (14.8V / 4S + 11.1V / 3S)

Voltage	Propeller	Max Current (A)	Max Thrust (g)	Efficiency (g/W)	Torque (Nm)
14.8V (4S)	APC 126	56.66	3491	4.16	0.61
14.8V (4S)	APC 136.5	68.04	4104	4.08	0.75
11.1V (3S)	APC 146	45.58	2887	5.69	0.49
11.1V (3S)	APC 156	56.98	3425	5.42	0.62
11.1V (3S)	APC 158	68.98	3664	4.78	0.76

1100KV (14.8V / 4S + 11.1V / 3S)

Voltage	Propeller	Max Current (A)	Max Thrust (g)	Efficiency (g/W)	Torque (Nm)
14.8V (4S)	APC 105	57.53	3054	3.59	0.46
14.8V (4S)	APC 115.5	82.38	3813	3.13	0.69
11.1V (3S)	APC 115.5	48.25	2489	4.65	0.38
11.1V (3S)	APC 126	64.86	3128	4.34	0.54
11.1V (3S)	APC 136.5	77.90	3661	4.25	0.65

What’s Included

Propeller clamp assembly 1PCS
Screws 3PCS
Mounting brackets 1PCS
Screws 4PCS

Applications

800-2300g 3D fixed wings
Gliders
Sport fixed wings

Details

The Skywalker 2826SL motor uses a compact can with a clearly defined mounting pattern and shaft dimensions to help plan fitment in fixed-wing builds.

The Skywalker 2826 fixed-wing motor is rated up to 4785g max pulling force (22.2V, 14x6E prop, 540KV) and is suited for 8002300g models.

The Skywalker 2826 SL fixed-wing brushless motor uses S.V.C. technology for higher dynamic balance and includes three bullet-connector leads for simple hookups.

The Skywalker 2826 brushless motor uses a large hollow, vented top cover to promote airflow through the can.

The Skywalker 2826 SL motor uses 0.2 mm silicon steel sheets and 180C enameled wire, and includes a propeller clamp, mounting bracket, and screws for installation.

The Skywalker 2826 motor uses an anti-loosening rotor setup with a bushing and set screw to help keep the shaft secure.
