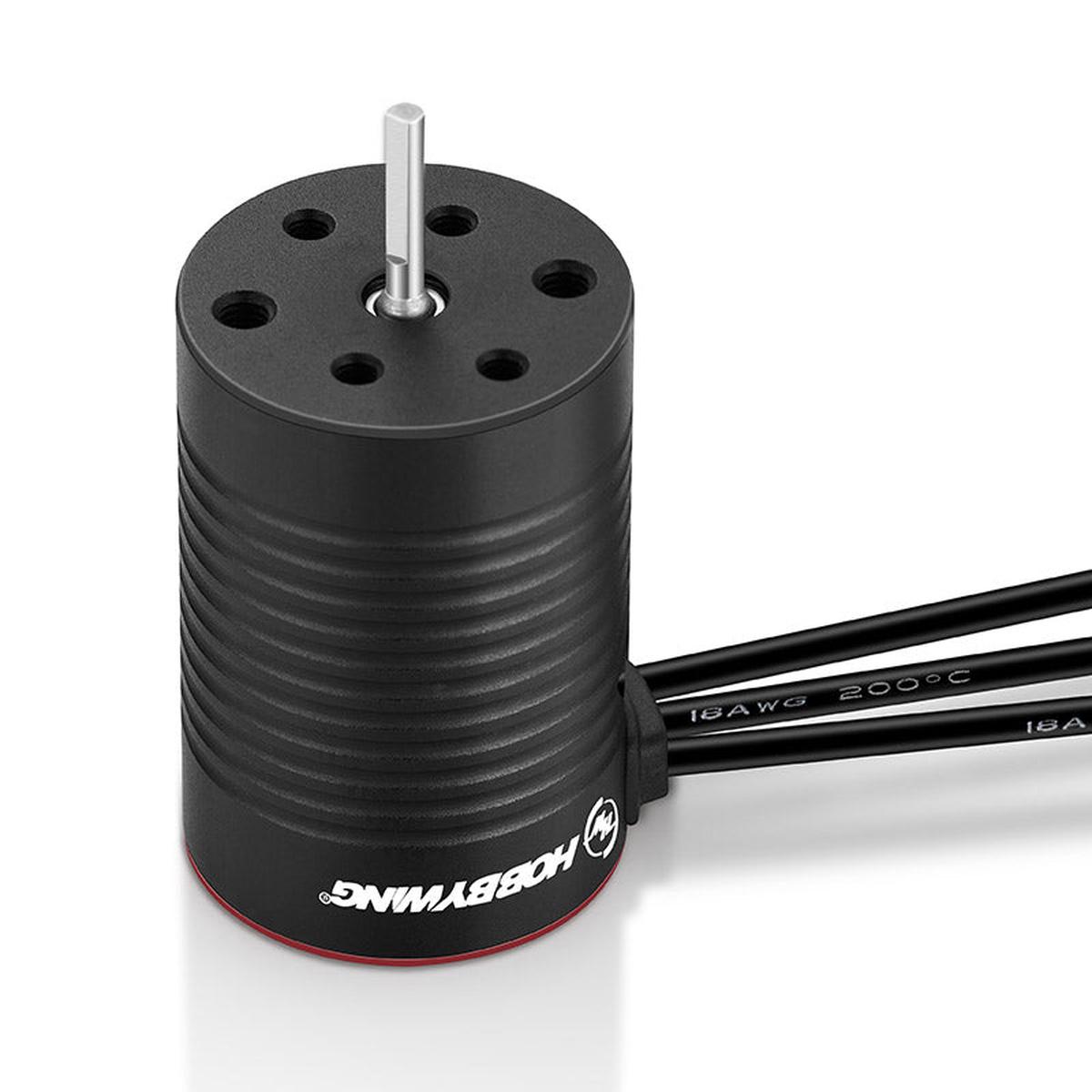

Hobbywing QUICRUN 2435 SL G3 Sensorless Brushless Motor 4500KV/6500KV for 1/16-1/18 Cars & Trucks

Overview

The Hobbywing QUICRUN 2435 SL G3 is a sensorless brushless motor designed for 1/16 and 1/18 cars and trucks. Generation 3 uses a 4-pole rotor for stronger torque, with improved efficiency and reduced operating temperature under the same load conditions.

Key Features

• Generation 3 (G3) 4-pole rotor design for stronger torque.
• High efficiency to increase power while keeping temperature lower.
• Compared with the previous generation, output power and efficiency increased by more than 4% and motor temperature reduced under the same load.
• 0.2 mm thick silicon steel laminations, high-strength rotor, high-temperature resistant coil/enamel wire, and high-precision bearings for durability.
• Motor output line with high-quality gold-plated plugs for plug-and-play installation (no soldering required).
• Motor output is sealed with silicone rubber on the housing to help reduce dust ingress for off-road vehicles/trucks.
• Performance comparison statement (same load conditions, same specification): maximum output power is 60% higher, maximum efficiency is 5% higher, and temperature is reduced by approximately 30.

For customer service and product support, contact [email protected] or visit .

Specifications

Applications

• 1/16 and 1/18 on-road and off-road vehicles
• Off-road, buggy, short course truck, truggy, monster truck

Manuals

• User’s manual
• Product catalog

Details

The QUICRUN 2435 SL G3 motor uses a 24mm diameter can, 36mm body length, 2mm shaft, and 3.5mm bullet leads to help match fitment and wiring for small RC builds.

The QUICRUN 2435 SL G3 motor is labeled 6500KV and features a 4-pole rotor design for compact RC car and truck setups.

The QUICRUN 2435 SL G3 sensorless brushless motor uses 0.2mm silicon steel laminations and 200C enameled wire for a durable internal build.

QuicRun 2435SL G3 performance data notes up to 60% higher output power, 5% higher maximum efficiency, and about 30 lower temperature under the same load conditions.

The QUICRUN 2435 G3 motor uses a silicone rubber seal at the wire outlet to help keep dust and debris out during off-road running.

The QUICRUN 2435 SL G3 motor is intended for 1/161/18 RC builds across off-road, short course, truggy, and monster truck platforms.

Pre-welded gold-plated bullet plugs on the motor leads make plug-and-play installation without soldering easier.
