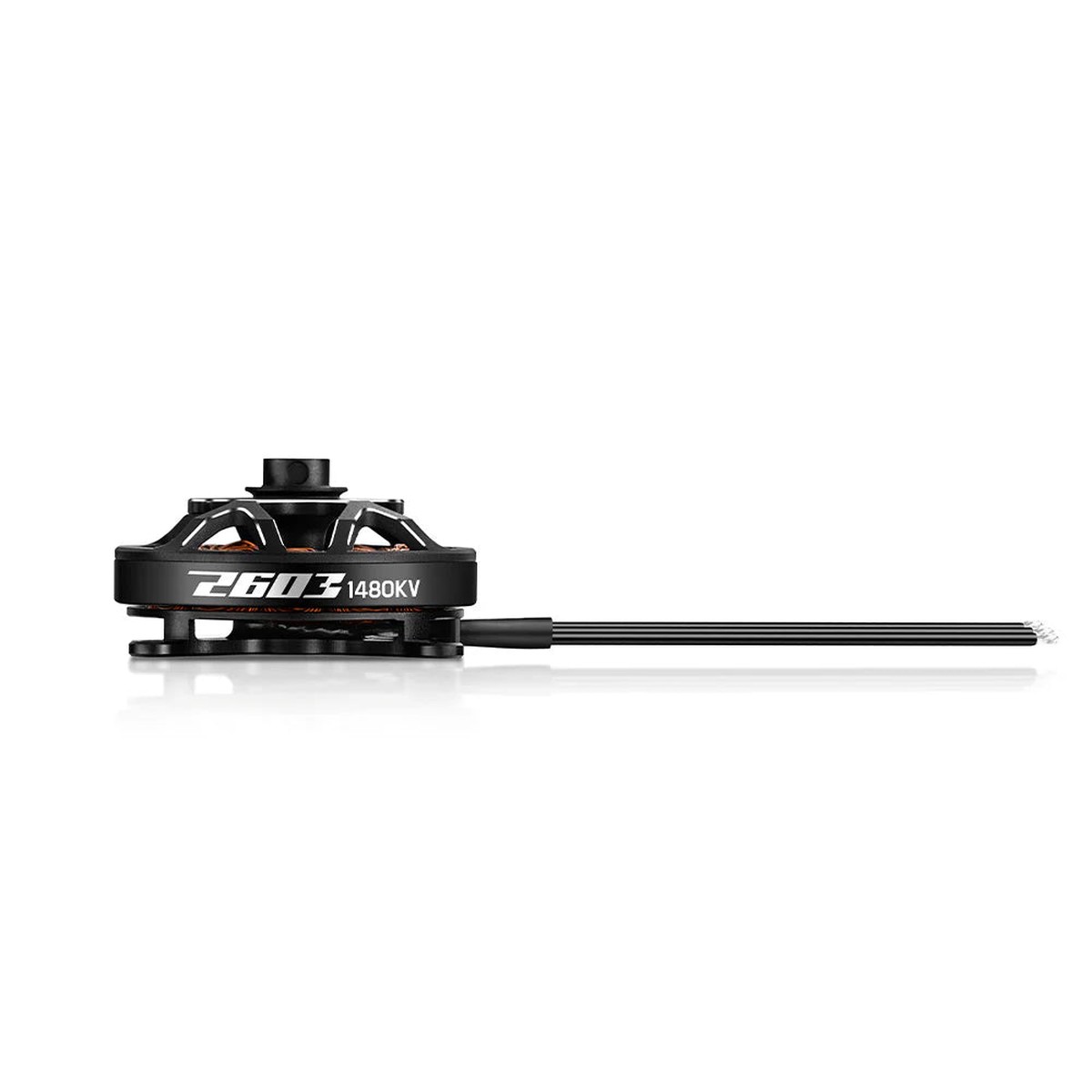

Hobbywing PLATINUM 2603 1480KV 1800KV Brushless Motor for 2S 3S F3P Indoor RC Plane

Overview

The Hobbywing PLATINUM 2603SL Brushless Motor is an ultra-light 18g power system built for 80g300g F3P indoor competition aircraft and other lightweight fixed-wing models with strict weight limits. With a compact 30 H16.2 mm motor size, 12-slot/14-pole design, and a smooth, linear throttle response when paired with the Platinum 18A V5 F3P ESC, it is designed to help pilots execute precise, high-difficulty aerobatic maneuvers. In the mid-to-rear load range, motor efficiency and maximum thrust increase by over 5% versus similar-spec motors, reducing power anxiety and improving competition performance.

Key Features

• Ultra-light design: motor weight 18g (including wires) for weight-critical F3P builds

• High-performance electromagnetic materials:

  • 0.2mm silicon steel laminations for strong torque and efficiency

  • 220C high-temperature enameled wire for reliability under load

  • N52SH high-strength arc magnets for high torque density

• Multi-strand winding: improves slot fill, helping reduce operating temperature at the same power output

• Low vibration, stable flight: rotor dynamic balance standard 5 mg for smoother control and cleaner aerobatics

• Efficient cooling + weight reduction: large hollow rotor frame and stator base design supports continuous heat dissipation during aggressive flights

• Fast prop installation: rotor frame integrates a propeller mounting structure for quick assembly/disassembly

• Flexible mounting: elliptical mounting-hole design supports 4 2.1 @ D33 and is intended to fit common F3P airframes

• Durable hardware: 630ZZ bearings, titanium alloy shaft material, and 500V AC insulation withstand test

Specifications (2603SL 1480KV vs 2603SL 1800KV)

Mechanical

Electrical & Performance

Recommended Setup

• ESC: Hobbywing Platinum 18A V5 F3P ESC

• Propellers: UP8338, TP8038

• Battery: 3S LiPo for 1480KV version; 2S LiPo for 1800KV version

Applications

• F3P indoor aerobatic / racing aircraft (80g300g class)

• Lightweight fixed-wing aircraft where low weight, smooth throttle, and stable vibration performance are critical

Package Notes

This listing is for the Hobbywing PLATINUM 2603SL brushless motor (KV option as selected). Propeller, ESC, and battery are typically selected separately unless explicitly included in your order.
